Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T
Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T
Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T
Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T
Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T
Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T
Specifications
Brand Name :
CHUNKE
Model Number :
CK-RO-6000L/H(B2)
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
30 Sets Per Months
Delivery Time :
22 working days
Packaging Details :
wooden box package
Application :
Use for food industry
Control :
all automatic
Membrane :
GE/DOW/Vontron membrane
Function :
remove salt
Capacity :
6m3 Per Hour
Material :
FRP+SS304
Heat removal rate :
≥99.9%
Name :
RO Water Treatment Plant​
Description

Industrial Factory Price Professional production water filter systems industrial home use Small Ro Water Treatment Plant

The reverse osmosis unit has the following excellent characteristics:
1. The parts are all well-known manufacturers with reliable quality.
2, the degree of integration is high, easy to expand, increase the number of membranes can increase the throughput.
3, high degree of automation, self-stop immediately in case of failure, with automatic protection.
4, high salt rejection rate, up to 98%.
5, low energy consumption, low operating costs.
6. High water utilization rate and recovery rate of 50 - 75 %.
7. Reasonable structure and small floor space.
8. Advanced membrane protection system, when the equipment is shut down, the desalinated water can automatically clean the surface of the membrane and prolong the membrane life.
9. The system has no wearing parts, no need for extensive maintenance, and the operation is effective for a long time.

RO Water Treatment Plant​ Typical process flow:


Original water pump - quartz sand filter - activated carbon filter - precision filter - high pressure pump - RO system - pure water tank

RO Water Treatment Plant​ introduction:


With semi-automatic and fully automatic user selection, we will design the products that best meet the needs of users according to the requirements of customers, and must achieve the highest cost performance.
The reverse osmosis system has high water inlet and low pressure protection, and high, medium and low liquid level control of the water tank to realize unmanned operation.

Detail of 6000L RO Filter Systems:

Items Device Description
1 SS304 Raw water pump
2 Iron and manganese filter
A. Stainless steel 304 tank
B. Automatic Valve
3 Carbon filter
A. Stainless steel 304 tank
B. Automatic Valve
4 Water softener
5 5μm Cartridge filter
6 High pressure pump
7 Reverse osmosis water production: 6m3/h, desalination rate:96～99%, System water utilization: 60%-70%
A. Membrane housing 8040-3core
8 CIP Washing equipment(6.0m3/h)
A. Wleaning pump stainless steel
Including: return valve, pipe and so on
C. Cleaning filters 30″×5core SS304
30″×5μm PP filters
9 Pressure gauges
11 Flowmeter
12 Stainless steel Pipe , valves

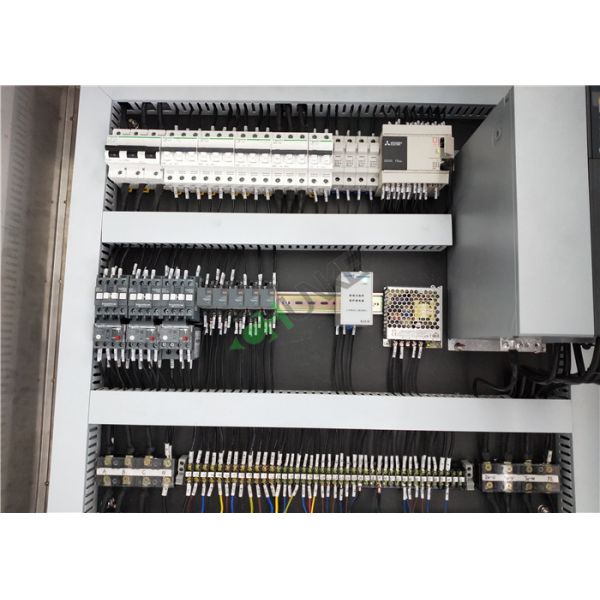

13 Electronic control system
Taiwan Weinview man-machine interface touch screen, Japan Mitsubishi PLC automatic control, France Schneider Electric components, RO membrane automatic flushing, the original water tank and pure water tank water level control automatically stop, low pressure, high pressure, overheating, overcurrent, phase loss protection and Alarm function, reserved manual operation function for debugging and emergency treatment.
14 Filter Media
15 Sterile Pure Water Tank 5000L
16 Supply Water Pump big
17 Supply Water Pump small
18 UV Sterilizer 12GMP(2T/H)

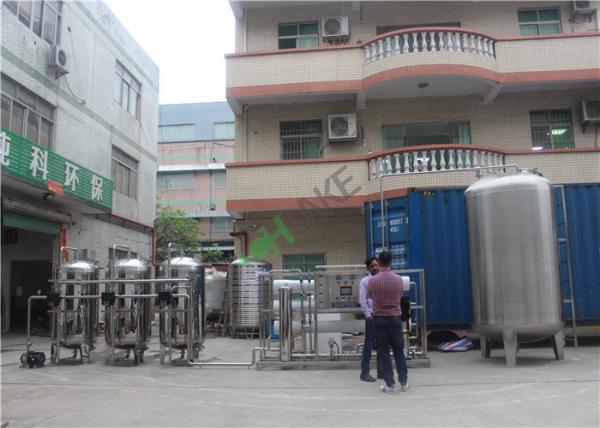

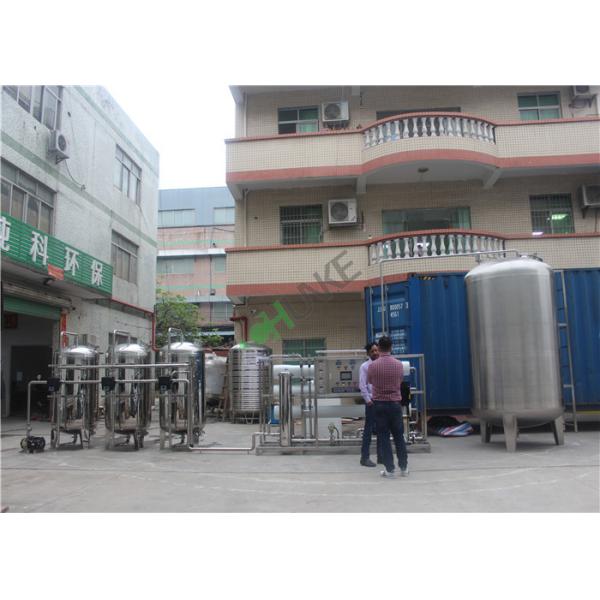

Picture of 6000L RO Water Treatment Plant​ ​:

Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T

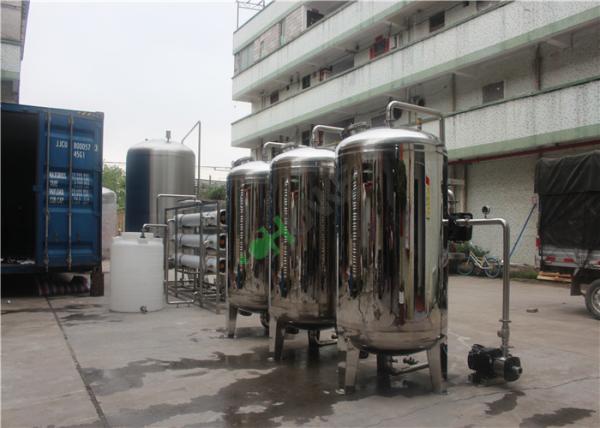

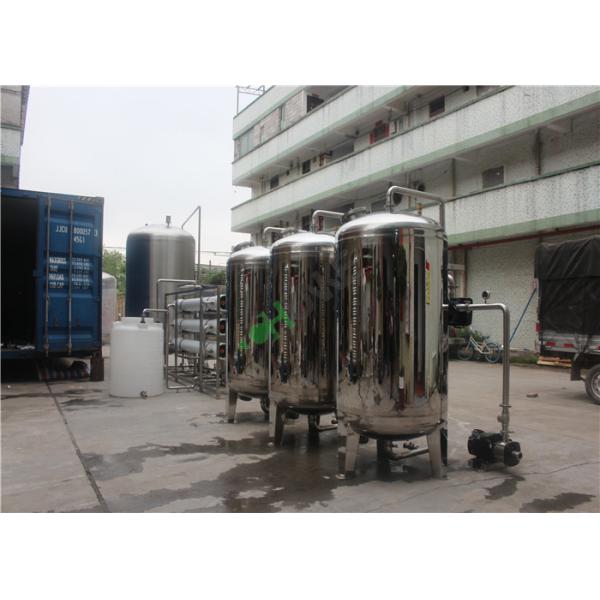

Back Picture of 6000L Professional water system:

Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T

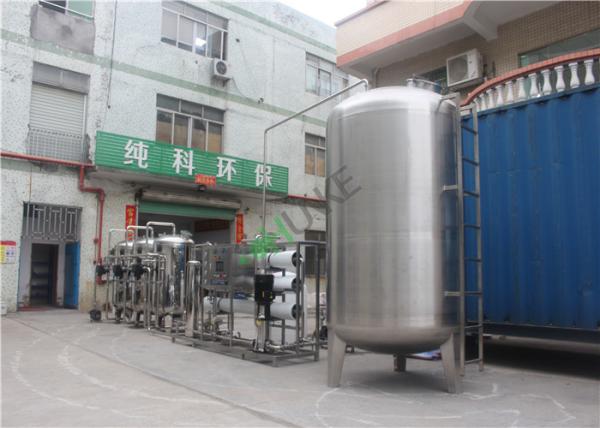

Picture of 6000L Professional water system:

Industrial Professional Filter Systems RO Water Treatment Plant With Silver Water Tank 6T
