Specifications
Brand Name :
CHUNKE
Model Number :
CK-BW-15T/H
Certification :
CE/ISO/SGS
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets Per Months
Delivery Time :
35 business days
Packaging Details :
wooden box package
Application :
industry use pure warer
Control :
full automatic
Membrane :
DOW salt water membrane
Function :
filter
Capacity :
15T/H
Material :
FRP housing + stainless steel
Heat removal rate :
≥97-99.9%
Name :
well water desalination
Description

Industrial Well Water Desalination 15T/H Brackish Water Purification System using solar energy for mineral water plant

What is brackish water system?

The brackish water desalination device is a water treatment device that combines the technology of micro-computer technology and mechatronics technology by utilizing the principle of reverse osmosis technology. The desalination of brackish water is actually the desalination of salt water, which desalinates the salt water or reaches the drinking water standard after treatment. The reverse osmosis technology used in the brackish water desalination device means that in the drinking water, when the chloride exceeds a certain range (national standard 250 mg/L), it is regarded as brackish water. Since the chloride is not used for other substances, it can be used. A certain filter material is removed, and the chloride removal process is generally treated by reverse osmosis technology, which is a water treatment technology developed in recent years, especially suitable for the treatment of chloride in water, brackish water desalination The device is based on this latest reverse osmosis technology.

Detail of 15000L well water desalination​ machine:

NO. Device Description Origin/brand Quantity
1 Raw water tank 20-50m3 User-supplied 1Set
2 Antibacterial Dosing system SEKO 1Set
3 Raw water pump (CHM20-4) CNP CHINA 2 Sets
4 Quartz sand filter φ1500×2400mm CHUNKE 1Set
5 Activated carbon filter φ1500×2400mm CHUNKE 1Set
6 Antiscalant Dosing system SEKO 1Set
7 Reducing agent Dosing system SEKO 1Set
8 5um Security filter 40 inch 15 core CHUNKE 1Set
9 High pressure pump (CDMF20-14) CNP CHINA 1Set
10 Reverse osmosis desalination unit Water production: 15.0m3/h, salt rejection rate: 96～99%, system water utilization rate: 60-65% 1Set
Contain A. Membrane housing 8040-4 Material: FRP 300PSI CHINA 4 PCS
B. Membrane element AG-8040 USA GE 16 PCS
C. 304 stainless steel frame CHUNKE 1Set
11 Pressure gauge CHINA 1Set
12 Flow meter 0-25T/H CHINA
13 Flushing / cleaning water tank 1000L Guangzhou 1PC
14 Flush / clean filter 40 inch 7 core (Security filter) CHUNKE 1Set
15 Flushing water pump (CHM12-3) 304 stainless steel CNP CHINA 1Set
16 Pure water tank 20-30m3 User-supplied 1Set
17 Connecting pipe fittings CHINA 1Set
18 Electronic control system CHUNKE 1Set
Taiwan Weinview man-machine interface touch screen. Japan Mitsubishi PLC automatic control, France Schneider Electric components, RO membrane automatic flushing, the raw water tank and pure water tank water level control automatically stop, low voltage, high voltage, overheating, overcurrent, phase loss protection and Alarm function, reserved manual operation function for debugging and emergency treatment.

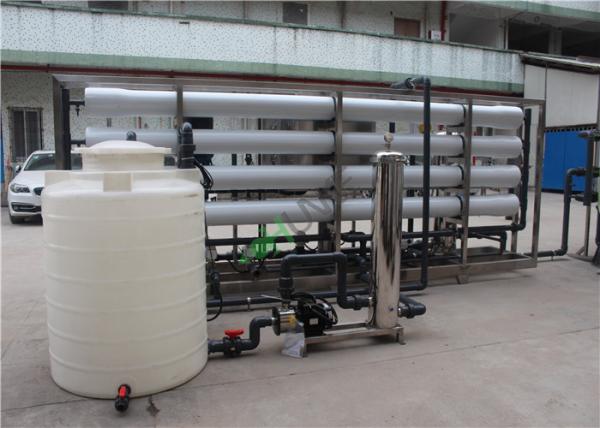

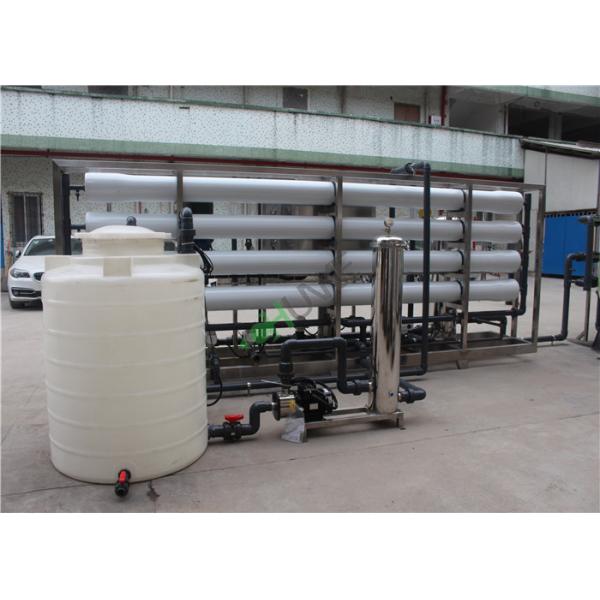

Picture of 15000L well water desalination​ machine:

Industrial Well Water Desalination 15T/H Brackish Water Purification System using solar energy for mineral water plant

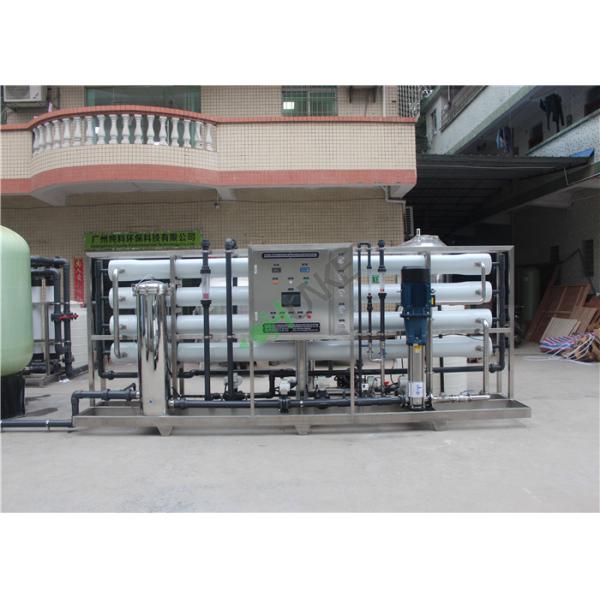

Back Picture of 15000L well water desalination​ machine:

Industrial Well Water Desalination 15T/H Brackish Water Purification System using solar energy for mineral water plant

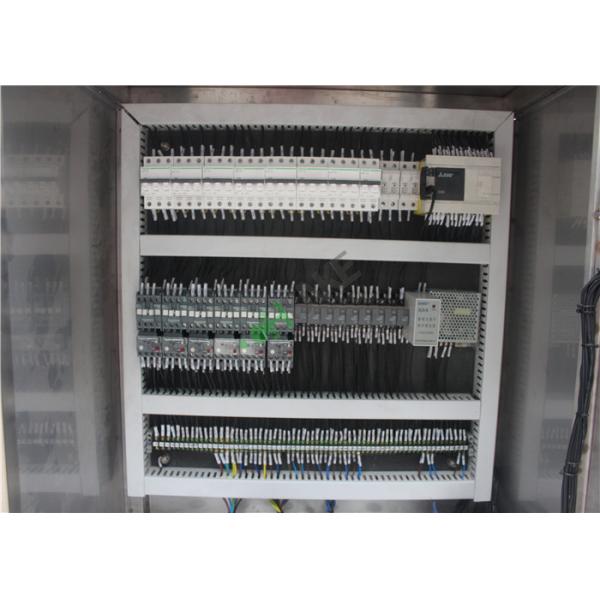

PLC Control box Picture of Picture 15000L well water desalination​ machine:

Industrial Well Water Desalination 15T/H Brackish Water Purification System using solar energy for mineral water plant
