Specifications
Brand Name :
CHUNKE
Model Number :
CK-RO-6000L/H(B2)
Certification :
CE/ISO/SGS
Place of Origin :
China
MOQ :
1Set
Price :
negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets Per Months
Delivery Time :
15 working days
Packaging Details :
wooden box package
Item :
Deep Well Water Treatment RO Filtration Plant with Reverse Osmosis RO Filtration System Machine
Tank QTY :
3
UV :
Yes
Capacity :
1m3 Per Hour
Material :
SS304
Payment :
50% and 50%
Style :
seawater RO system
Description

Deep Well Water Treatment RO Filtration Plant with Reverse Osmosis RO Filtration System Machine

1. Product introduction:


According to the customer requirements and the source water quality, we adopt different equipment to produce pure water, mineral water, etc. The main equipments are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank, etc. The treatment capacity is 0.5-50 ton/hour. It can effectively get rid of muddy organic matter, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

2. Features:


1. We can design and produce the water treatment system according to customer's raw water quality report or customer requirement with World health organization living instant-drinking water standard.
2. All the valves, pipeline will be with stainless steel SUS304 , with compact structure.
3. All the machine will be PLC controlled, can be operated automatically, and also have installed with conductivity meter monitor, pressure gauge and flow meter. All the parameter in the machine can be monitored easily.

3.Flow Chart:

Model
Capability(T/H)
Operation(MPa)
Membrane(Inch)
Membrane(Qty)
Power(KW)
RO-125L
0.125
1.0-1.4
4021
1
1.1
RO-250L
0.25
1.0-1.4
4040
1
1.1
RO-500L
0.5
1.0-1.4
4040
2
1.5
RO-750L
0.75
1.0-1.4
4040
3
2.2
RO-1000L
1
1.0-1.4
4040
4
2.2
RO-1500L
1.5
1.0-1.4
4040
6
3
RO-2000L
2
1.0-1.4
4040
8
3
RO-3000L
3
1.0-1.4
4040
12
4
RO-5000L
5
1.0-1.4
8040
5
5.5
RO-10000L
10
1.0-1.4
8040
10
11
RO-15000L
15
1.0-1.4
8040
15
15

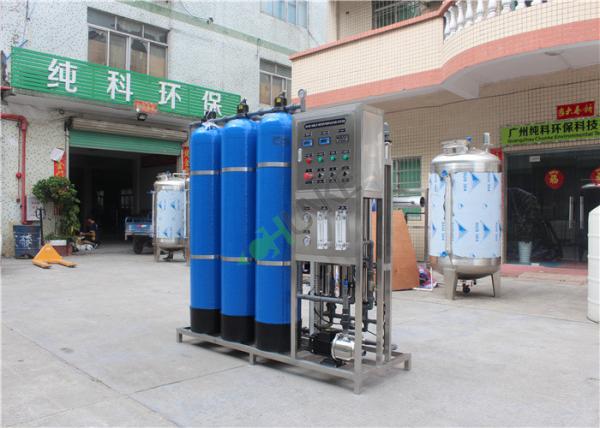

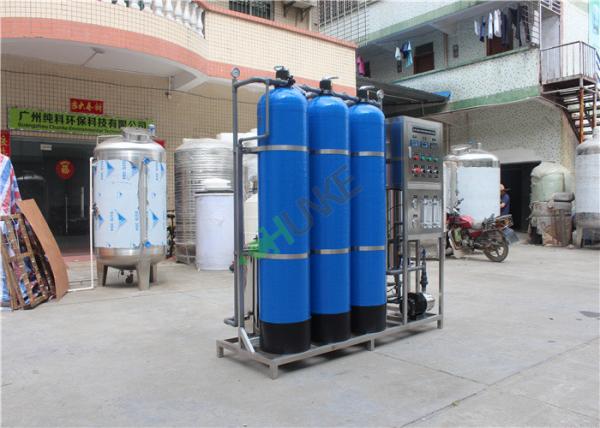

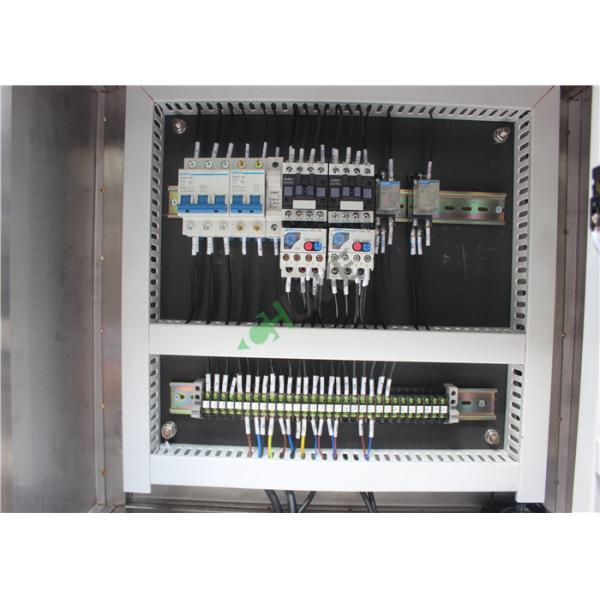

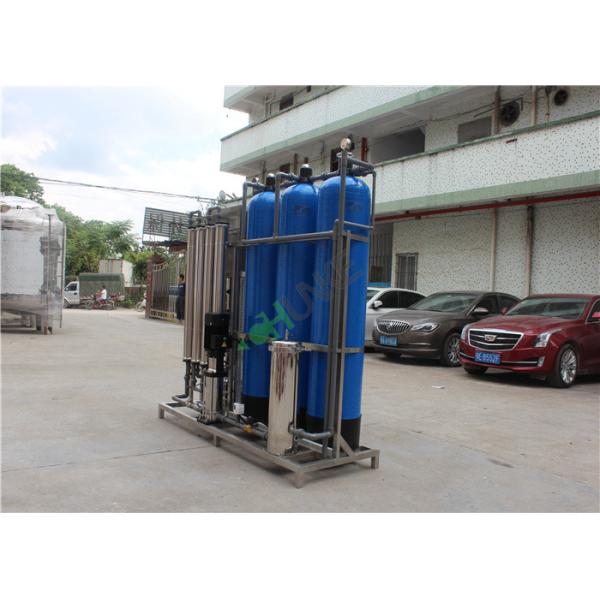

RO Water Treatment Plant​ Detail Pictures​:

Deep Well Water Treatment RO Filtration Plant with Reverse Osmosis RO Filtration System MachineDeep Well Water Treatment RO Filtration Plant with Reverse Osmosis RO Filtration System Machine
