Small Seawater Desalination Equipment For Drinking 500L Per Hour Capacity
Small Seawater Desalination Equipment For Drinking 500L Per Hour Capacity
Small Seawater Desalination Equipment For Drinking 500L Per Hour Capacity
Small Seawater Desalination Equipment For Drinking 500L Per Hour Capacity
Small Seawater Desalination Equipment For Drinking 500L Per Hour Capacity
Small Seawater Desalination Equipment For Drinking 500L Per Hour Capacity
Small Seawater Desalination Equipment For Drinking 500L Per Hour Capacity
Small Seawater Desalination Equipment For Drinking 500L Per Hour Capacity
Specifications
Brand Name :
Chunke
Model Number :
CH-SW
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
Cash,PayPal, T/T, L/C, Western Union
Supply Ability :
1000 unit per month
Delivery Time :
7-10 days
Packaging Details :
Standard package
Item :
Small 500L Per Hour Seawater Desalination Machine For Drinking
Raw water pump :
Chinese
Capacity :
500L
Material :
SS304
Warranty :
1 year
Power :
by order
Driven Type :
Electric
Package :
wooden
Description
Small 500L Per Hour Seawater Desalination Machine For Drinking



CK-SW-500L/H Seawater Desalination System Configuration List:

NO.NameSpecificationQuantityRemark
1Raw Water Tank

Capacity:1000L
Material:Anti-corrosive PE
Accessories: supporting pipeline valves, Water level control switch

1 setProvided by customer

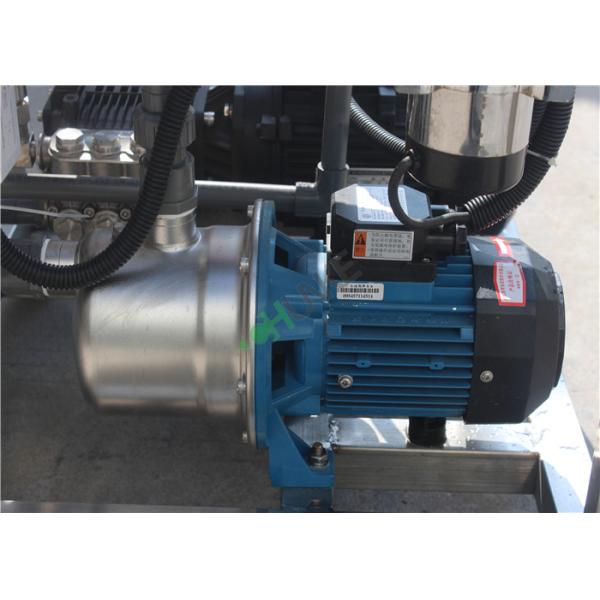

2Raw Water Pump

Model: CHL2-40
Flow passage components material: SS316L
Design flow:2000L/ H
Delivery head: 29m
Motor power: 0.55KW
Include: pipe, valves, base

1 setCNP
3Dosing System (flocculant)

Scale dosing system
Flow: 1.5L/H Range:60M
Dosing tank: 40L (PE)

1setSEKO
4Mechanical Filter

Model: φ400×1650MM
Material: Fiber Reinforce Plastic
RUNXIN backwash valve
pipe, distributors

1 setPentair
5Dosing System (reductant)

Scale dosing system
Flow: 1.5L/H Range:60M
Dosing tank: 40L (PE)

1setSEKO
6Dosing System (scaling inhibitor)

Scale dosing system
Flow: 1.5L/H Range:60M
Dosing tank: 40L (PE)

1setSEKO
75μm Security Filter

Material: PVC
Filter Size: 20 "× 5μm
Cartridge quantity: 3 pcs

1set


CHUNKE

81μm Security Filter

Material: PVC
Filter Size: 20 "× 5μm
Cartridge quantity: 3 pcs

1set


CHUNKE

9Seawater High Pressure Plunger Pump

Model: 3DP35
Material:SS316
Flow:2000L/H6.0MPa,K=4.0kw
280RPM
safety valve, and pipe fittings

1 set
10Reverse Osmosis Water Desalination System

Water production capacity: 500L/H
Desalination rate:96%～99%
Membrane housing: 4040-1; 3pcs.
Material: FRP,1000PSi
Toray membrane element TM810; 3pcs
Machine frame: SUS304
Feed water valve:φ32MM
Concentrated water valve:φ25MM
Flushing water inlet electric valve: φ25MM
Concentrated Water Flow Regulator: φ25MM

1set
11RO Washing System 1setCHUNKE
Washing pump

Model: CHL2-30
Material:SS304
Flow:2m3/ H,Range: 21m ; K=0.55kw
water inlet valve, check valve and pipe fittings

1set


CNP

Washing tank

Capacity:100L
Material:Anti-corrosive PE

1setCHUNKE
Washing filter

Material:SS304
Filter Size: 20 "× 5μm
Cartridge quantity: 3 pcs

1setCHUNKE
12Electronic Control Box

Mitsubishi PLC programmable controller,
Korean pressure controller and time controller, start & stop control automatically by the water level in the raw water tank and the pure water tank

1setMitsubishi
13Filter Material

Quartz sand: 200KG
PP filter cartridge: 25 pcs

1 batch
14Pressure Instruments

A, Desalination high pressure gauge 0～100kgf/cm², 3pcs
B, High-pressure pump low pressure protection switch, 2pcs
C,System pressure gauge, 0～6kgf/ cm², 3pcs
D, raw water conductivity meter
E, pure water conductivity meter CM230
F, Mitsubishi PLC controller

1set
15Flow Meters

A, Pure water flowmeter: 5GPM
B, Concentrated water flowmeter: 10GPM

1set
16Inspection Instruments

Handheld PH meter
Handheld TDS device

1 pcs
17Pure Water Tank

Capacity: 1000L
Material:Anti-corrosive PE
Accessories: inlet /outlet water valves, Water level control switch

 Provided by customer




Technical training

1. Supplier provides technical training for free; we are responsible to provide site training for personnel of buyer, until they are of good operation skills.
2. Supplier provides training for maintenance people; if the training carries out at the supplier’s site, the buyer is responsible for their travel expense.
3. Training content:

  • Basic theoretical knowledge of reverse osmosis
  • Equipment structure
  • Membrane cleaning
  • Installation, debugging, operation
  • Maintenance, repair


Quality Assurance And Service
1. This project is a turnkey project, all equipments and materials needed in the whole project will be provided by our company.
2. Our Company is responsible for allocating professional engineers to the site for installation and debugging, conducting comprehensive technical training, explaining detail of technical drawings, working principles, techniques flow chart, operation manuals etc. After the training, the operators
can fully understand the techniques of the whole system. They can find general fault of the system and do maintenance.
3. After accepted by the buyer, the equipment enjoys 12 months’ quality warranty for free. If the equipment fails to work within 12 months, we will be responsible for free repair. The supplier provides long-term after-sale service, free technical and training services.

. Payment
1. Factory price
2. Terms of payment:30% deposit by TT, 70% before shipment
3. Delivery date:30days after deposit received
4. We can provide service of on-site installation and debugging. The buyer is in charge of the travel, food and accommodation expenses of the installation personnel. The service fee is 100USD/day/person.At the same time, the buyer should be responsible for the their safety.
5. Valid date: 30days
