Specifications
Brand Name :
CHUNKE
Model Number :
CK-SW
Certification :
CE/ISO/SGS
Place of Origin :
GUANGZHOU
MOQ :
1Set
Price :
USD28000-55000
Payment Terms :
T/T, Western Union
Supply Ability :
160 Set Per Year
Delivery Time :
28-40 days
Packaging Details :
Ship by container Transparent film paper packing
Item :
ISO CE Approved Best Price Brackish Water Drinking Water Treatment Plant With Dosing
Application :
Drinking,irrigation
Influent water quality :
Seawater , salt water , brackish water
Capacity :
4m³ per hour
Installation type :
We can arrange installation
Material :
Glass fiber reinforced plastic
Description

ISO CE Approved Best Price Brackish Water Drinking Water Treatment Plant With Dosing

RO-CK-4000l/h Configuration List

NO. DESCRIPTION QTY MATERIAL REMARK
1,Pretreatment system
1.1 Raw Water Tank 1pc PE Provide by customer
1.2

Raw Water Pump(CHLF12-40)

flow:14.0m3/ H range:34m K=2.4kw

 1set SS316 CNP
Including :Inlet valve, reflux valve, pipe, etc.
1.3 Dosing System (flocculant) 1set SEKO
A.flow rate: 7.6L / H; Head: 76M;
B.UPVC valve control; 1 batch
C.level control switch; 1pcs
D.dosing barrels 100L (PE) 1pcs
E.commissioning agent (GP8112); 25L
1.4 Sand Filter CK-φ1200×2650mm 1set FRP CHUNKE
A) PVC Butterfly valve 5pcs South Asia
B)Up and down the water distributor 1set
B) Pure water silica sand 2400KG High quality
1.5 Activated Carbon Filter CK-φ1200×2650mm 1set FRP CHUNKE
A) Stainless steel Butterfly valve 5pcs South Asia
B)Up and down the water distributor 1set
B) Pure water activated carbon 700KG Nut shell High quality
1.6 Dosing systems (inhibitors) 1set SEKO
A.flow rate: 7.6L / H; Head: 76M;
B.UPVC valve control; 1 batch
C.level control switch; 1pcs
D.dosing barrels 100L (PE) 1pcs
E.Debug agent 25L
1.7 PH adjustment system 1set SEKO
A.flow rate: 7.6L / H; Head: 76M;
B.UPVC valve control; 1 batch
C.level control switch; 1pcs
D.dosing barrels 100L (PE) 1pcs
E.Debug agent 25L
1.8 10μm security filters PFP-9P-40 1set PVC CHUNKE
A)diameter 300 * 1000MM,9cores
B)PP filter; 40inch
1.9 5μm security filters PFP-9P-40 1set PVC CHUNKE
A)diameter 300 * 1000MM,9cores
B)PP filter; 40inch
2.0 One-stage high-pressure pump CDL12-9 + CDH12-18 flow:14m3/h,range:234m K=6.5kw 1set SS316 CNP
A.Including :Ball valves, check valves, fittings. 1set
B.Inverter 1set TAIDA
3,One-stage Reverse osmosis water desalination plant capacity: 7T / h, Desalination rate: 96 to 99%,System water utilization : 50%

3.1

 RO Water Purification System 1set CHUNKE
Membrane unit CK-8040-2W(450PSi) 4pcs FRP
Membrane element BW30FR-400 8pcs polyamide USA DOW
Stainless steel frame 1set Stainless steel
3.2 Connection pipe fitting, valve 1set SS & Upvc CHUNKE
a,Electric inlet valve DN50 1pcs UPVC
b,Electric Strong water valve DN32 1pcs SS316
c,High pressure feed water regulator valve DN50 1pcs SS316
d,Concentrated water flow control valve DN32 1pcs SS316
e,Inlet check valve DN50 1pcs SS316
f,The pressure relief valve DN20 1pcs
g,Electric flush valve DN50 1pcs UPVC
i,water production electric three-way valve DN40 1pcs
3.3 Middle water tank 2000L 1set SS304 CHUNKE
Size:F960 * H2230 (mm)
3.4 Two-stage high pressure pump CDLF8-14 flow:7.0m3/h,range:116m K=4.0kw 1set SS304 CNP
Including :Ball valves, check valves, fittings.
4.Two-stage Reverse osmosis water desalination plant capacity: 7T / h, Desalination rate: 96～99%,System water utilization : 80%
4.1 RO Water Purification System 1set CHUNKE
Membrane unit CK-8040-2W(300PSi) 2pcs
Membrane element BW30FR-400 4pcs USA DOW
Stainless steel frame 1set Used with one-stage
4.2 Connection pipe fitting, valve 1set CHUNKE
a,Water inlet solenoids DN40 1pcs SS304
b,Electric Strong water valve DN32 1pcs SS304
c,High pressure feed water regulator valve DN40 1pcs SS304
d,Concentrated water flow control valve DN32 1pcs SS304
E,Inlet check valve DN40 1pcs SS304
5 Pure water tank 5000L 1set SS304 CHUNKE
A.Thickness:3.0mm
B.Stainless steel air filter 1set
C.Including:inlet/outlet valve,liquid level controller 1set
6 Water supply pump CDLF8-4 1set SS304 CNP
A.Flow rate 8.0 m3/h,Head:36m K=1.5kw

B.Including:Outlet valve,pipe fittings

etc.

 1set
7 0.22μm titanium filter 1set SS304 CHUNKE
A.Model:40’’x7cores
B.titanium filter cartridge 40″×0.22μm 7pcs CHUNKE
8 Pressure gauge 1sets Made in China
A,Reverse osmosis pressure gauge 0～4.0MPA 3pcs Made in China
B,Reverse osmosis pressure gauge 0～2.5MPA 3pcs Made in China
C,High pressure pump low pressure protection switch 1pcs Made in China
D,High-pressure pump high pressure protection switch 2pcs Made in China
E,Pretreatment pressure gauge 0 ~ 0.7MPA 6pcs Made in China
F,raw water conductivity meter 1set Shijiazhuang
G,one-stage producing water conductivity meter 1set Shijiazhuang
H,two-stage producing water conductivity meter 1set Shijiazhuang
9 Flow Instruments 1set Made in China
A,Pure water flow meter 2pcs
B,Concentrated water flow meter 2pcs
C,Backwater flowmeter 2pcs
10 Washing / cleaning water tank 500L φ790×1110MM 1set PE Guangzhou
A,Inlet/Outlet control valve,pipe and fittings
B,Level control switch
11 Washing / cleaning filter PFS-7P-40 1set SS304 CHUNKE
A,Size:φ250×1000MM 1set
B,40″×5μm PP filter 7pcs
12 Cleaning / flushing water pump (CHL12-30) 1set SS304 CNP
A.Flow rate 15 m3/h,Head:24m K=1.8kw

B.Including:Outlet valve,pipe fittings

etc.
13 Connecting pipe fittings, valves 1set Sanli / Jewelry
A,DN25-DN50 valve,pipes 1set U-PVC Sanli
B,DN25-DN50 valve,pipes 1set SS316 Jewelry
C,DN25-DN40 valve,pipes 1set SS304 Jewelry
14

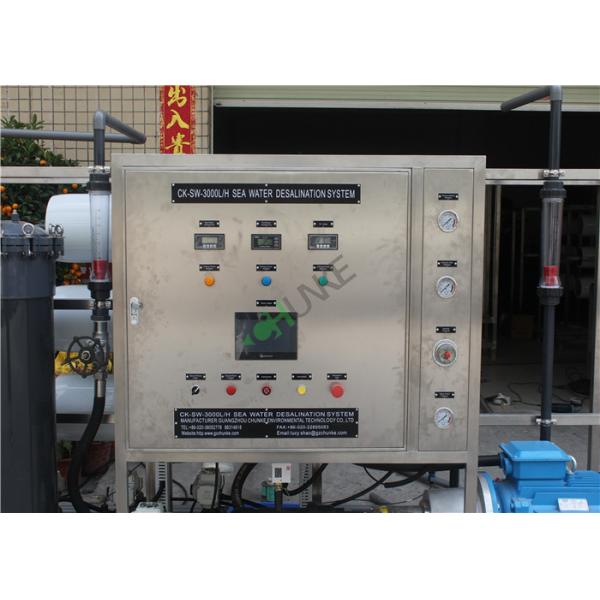

Electronic control system

(Total control cabinet: the PLC program controller control; RO membrane automatic back washing;frequency control tart the high pressure pump;the raw water tank and pure water tank level control;low pressure, high pressure, overheating, over-current, phase protection and alarm functions;Manual operation function reserved for easy commission and emergency treatment.)

 1set Assembly CHUNKE

Brackish Water Remark:

1.Instructions

1.1 mainframe dimensions: 300*80*165CM, the total weight of about: 3000Kg;

1.2 Water production: 5T / H. Water TDS ≤ 10100ppm, water TDS ≤ 300ppm

1.3. Raw water quality: Filter groundwater, tap water

1.4 Power: three-phase five-wire 240V / 415V; frequency: 50HZ, rated total power: 19.5kw, normal operating power: 18.3kw.

1.5 Installation conditions: indoor installation; ambient temperature: 5-45 ℃;

2. Terms of payment/packaging/shipping

2.1. Payment terms shall be 50% TT in advance, 50% TT before shipemnt.

2.2. Packing: ordinary wooden box packaging, packaging does not recover

2.3. Transport: By land or Sea, the cost of the buyer responsible

3. Date of delivery

3.1. Delivery within 40 working days after receipt of prepayment.

3.2. Buyer must provide timely and other relevant data.
