Specifications
Brand Name :
CHUNKE
Model Number :
CK-SW
Certification :
CE/ISO/SGS
Place of Origin :
GUANGZHOU
MOQ :
1Set
Price :
USD28000-55000
Payment Terms :
T/T, Western Union
Supply Ability :
160 Set Per Year
Delivery Time :
28-40 days
Packaging Details :
Ship by container Transparent film paper packing
Item :
Filter Brackish Di Drinking Ro Water Treatment System Ro Water Purifier Plant
Application :
Pure water
Influent water quality :
Seawater , salt water , brackish water
Capacity :
2m³ per hour or by order
Installation type :
sent engineer to local
Material :
Glass fiber reinforced plastic
Description

Filter Brackish Di Drinking Ro Water Treatment System Ro Water Purifier Plant

CK-RO-2000L/H Brackish water desalination system configuration

NO Device Name Origin /brand QTY
1 Raw water tank 10m3 Provide by customer 1PC
A,Tank material:PE or RC
B,In/out let control valves and pipes parts； 1Set
C,Water level control switch 1Set
2 Raw water pump(CHL4-40) SS304 CNP 2Set
A,Flow:4.0m3/ H Head:31m K=0.75kw
B,Including: inlet valve, check valve 1Set
3 Quartz sandφ600×1850mm Chunke 1Set
A,Tank material:FRP CHUNKE 1PC
B,Backwash multi-way valve China 1Set
C,Water distributor 1Set
D,Quartz sand China 400KG
4 Activated carbon filter φ600×1850mm 1Set
A,Tank material:FRP CHUNKE 1PC
B,Backwash multi-way valve China 1Set
C,Water distributor 1Set
D,Activated carbon Coconut shell 175KG
5 Metering dosing system (scale inhibitor) SEKO 1Set
A,Flow:1.5L/H；Head:35M；
B,U-PVC Control Valve； 1PC
C,Dosing tank 40L(PE) 1PC
C,Commissioning agents； 25L
6 PH adjusting dosing system SEKO 1Set
A,Flow:1.5L/H；Head:35M；
B,U-PVC Control Valve； 1PC
C,Dosing tank 40L(PE) 1PC
C,Commissioning agents； 5KG
7 Cartridge filter 5um 30"*5 Core CHUNKE 1Set
A,Housing material:SS304 CHUNKE 1Set
B,Dimensions:φ195×750MM
C,30″×5μm PP cartridge Guangzhou 5PCS
8 High-pressure pump(CDLS8-18) CNP 1Set
A,Material:SS 304 Flow :6.0m3/h
B,Head:190m K:7.5kw
9 RO Water System(Water production:2.0m3/h, Desalination rate:96～99%,Recycling rate:50-65%) 1Set
Contain A,Membrane unit 8040-1core FRP 450PSI China 3PCS
B,Membrane element AG-8040 GE 3PCS
C,304 Stainless steel frame CHUNKE 1Set
D,Inlet water valve DN32 UPVC 1Set
E,Washing Inlet water valve DN32 UPVC 1Set
F,Pure water solenoid valve DN25 UPVC 1Set
G,Strong water solenoid valve DN20 SS304 1Set
H,Inlet water flow adjustable valve DN25 SS304 1PC
I,Strong water flow adjustable valve DN20 SS304 1PC
J,Inlet check valveDN32 SS304 1PC
10 Pressure gauges CHINA 1Set
A,Reverse osmosis pressure gauge 0～40kgf/ cm2 CHINA 2PCS
B,Pretreatment pressure gauge 0～7kgf/ cm2 CHINA 2PCS
C,High Pressure protection switch(P-06) SHANGHAI 1Set
D,Low Pressure protection switch(P-06) SHANGHAI 1Set
E,Raw water conductivity meter CHINA 1Set
F,Pure water conductivity meter CHINA 1Set
11 Flowmeter CHINA
A,Pure water flowmeter CHINA 1PC
B,Strong water flowmeter CHINA 1PC
C,Backwater flowmeter CHINA 1PC
12 Rinse / clean tank 300L GUANGZHOU 1pc
A,Dimensions:φ730×810MM； 1Set
B,In/out let control valves and pipes parts； 1Set
C,Water level control switch 1pc
D,Tank material:PE 1pc
13 Cleaning Cartridge Filter 20"*5 Core CHUNKE 1Set
A,Housing material:SS304 GUANGZHOU 1pc
B,Dimensions:φ195×500MM
C,20″×5μm PP Catridge(5μm) GUANGZHOU 5pcs
14 Cleaning Water Pump(CHL4-40) SS304 CNP 1Set
A,Flow:7.0m3/ H Head:19m K=0.75kw
B, Contain : Inlet valve, connection pipe 1Set
15 Pure water tank(5m3) Provide by customer 1pc
A,Tank material:PE
B,In/out let control valves and pipes parts；Water level control switch 1Set
16 Connecting pipe fittings, valves: from the raw water pump outlet to the low-pressure part all used in Taiwan Sanli UPVC pipe valves, high pressure systems all used in sanitary 304 stainless steel ,polished inside and outside parts of the valve. NANYA/ELLIS 1Set
A,DN20-DN32 Valves,pipes(U-PVC) NANYA 1Set
B,DN20-DN32 Valves,pipes(SS304) ELLIS 1Set
17 Electronic control system CHUNKE 1Set
WEINVIEM human-machine interface touch screen, Mitsubishi PLC automatic control, Schneider Electric components, RO membrane auto flushing, raw water tank pure water tank level control and automatic stopping power, low-pressure, high-pressure, overheat, over current, lack of protection and Alarm function, reserved for manual operation
A,Air switch SCHNEIDER 1pc
B,AC contactor SCHNEIDER 1Set
C,Thermal overload protection SCHNEIDER 1Set
D,Fuse SCHNEIDER 1Set
E,Indicator light SCHNEIDER 1Set
F,Third gear switch; emergency stop button SCHNEIDER 1Set
G,Voltmeter CHINA 1Set
H,PLC Controller MITSUBISHI 1Set
I,Sound and light alarm SCHNEIDER 1pc
J,Cables CHINA 1Set

Brackish Water Treatment Plan Remark:

Instructions :

1.1 Host Dimension:280*80*170CM；Weight about:1600Kg；

1.2 Water production:2.0T/H；raw water TDS≤8000ppm；pure water TDS≤250ppm

1.3 Raw water quality:Groundwater, brackish water

1.4 Power:Three-phase 220V/380V；Frequency:50±0.5HZ；Rated total power:10.5kw,operating power:9.0kw；

1.5 Installation conditions: indoor installation, temperature:5-45℃；

2.Payment / Packing / Shipping:

2.1 Payment:50% TT advance of the deposit after the signing of the contract, 50% TT of the balance after goods ready and before ship;

2.2 Packaging: wooden packaging(not recycled);

2.3 Shipping: By sea, the buyer is responsible for it.

3.Lead /delivery Time:

3.1 Advance payment within 30 working days ;

3.2 Buyer shall promptly provide relevant data venues;

4.Acceptance Statement and Quality Assurance:

4.1 According to the contract of the brand, quantity, type to provide the products；

4.2 According to the agreement reached capacity and stability requirements；

4.3 The buyer can be visit to the seller for inspection, after passing then ship；

4.4 After equipment installation and commissioning training is completed,the two sides confirmed the qualified, acceptance of all completed；

4.5 Buyer shall ensure that the site installation conditions to meet the requirements and to provide staff with respect；

5.Installation / commissioning / training

5.1. The seller is responsible for installation, commissioning and personnel training, the buyer to provide travel, visas, accommodation and other expenses, according to US $ 150 per person per day to pay staff salaries;

5.2. The buyer may arrange for personnel to the seller training, the seller provides accommodation and transportation services；

5.3. Expected installation time 4 days, commissioning time 2 days, training time 1 days, 1 technical staff；

5.4. The training content includes, the product structure principle, the off/stop the equipment

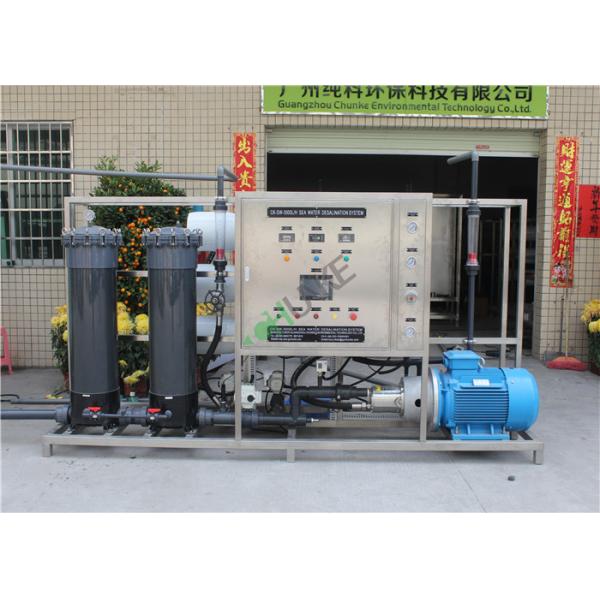

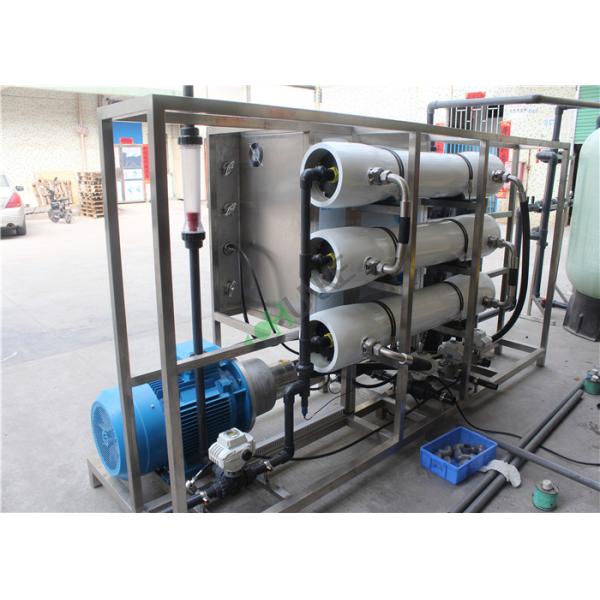

Brackish Water Treatment Plant Detail Pictures :

Di Drinking Brackish Water Treatment Plant Glass Fiber Reinforced Plastic MaterialDi Drinking Brackish Water Treatment Plant Glass Fiber Reinforced Plastic MaterialDi Drinking Brackish Water Treatment Plant Glass Fiber Reinforced Plastic Material
