Specifications
Brand Name :
Chunke
Model Number :
CH-SW
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
Cash,PayPal, T/T, L/C, Western Union
Supply Ability :
1000 unit per month
Delivery Time :
7-10 days
Packaging Details :
Standard package
Item :
FRP/SS304 Ro Seawater Desalination Plant / Reverse Osmosis Drinking Water Treatment System
Raw water pump :
CNP
Sand filter :
φ400×1650MM
Carbon filter :
φ400×1650MM
Warranty :
12 months
Power :
0.75-15kw
Driven Type :
Electric
Fuction :
Purifying
Description

FRP/SS304 Ro Seawater Desalination Plant / Reverse Osmosis Drinking Water Treatment System

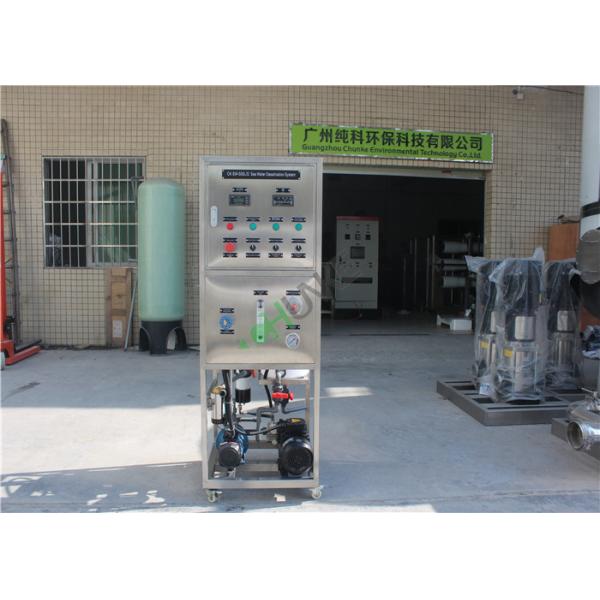

CK-SW-500L/H RO Seawater Desalination Plant

About our company

Our company is a scientific enterprise which is specialized in development,production,sales and service of water treatment and accessories over 6 years.We are insisting on scientific innovation,bring forward brand strategy,providing high quality products and implementing first class service for all over the world customer.We have won high praise and trust from the new and old customer,hope we will cooperation.

1. CK-SW-500L/H System Configuration List:

NO. Name Specification Quantity Remark
1 Raw Water Tank

Capacity:1000L

Material:Anti-corrosive PE

Accessories: supporting pipeline valves, Water level control switch

 1 set Provided by customer
2 Raw Water Pump

Model: CHL2-40

Flow passage components material: SS316L

Design flow:2000L/ H

Delivery head: 29m

Motor power: 0.55KW

Include: pipe, valves, base

 1 set CNP
3 Dosing System (flocculant)

Scale dosing system

Flow: 1.5L/H Range:60M

Dosing tank: 40L (PE)

 1set SEKO
4 Mechanical Filter

Model: φ400×1650MM

Material: Fiber Reinforce Plastic

RUNXIN backwash valve

pipe, distributors

 1 set Pentair
5 Dosing System (reductant)

Scale dosing system

Flow: 1.5L/H Range:60M

Dosing tank: 40L (PE)

 1set SEKO
6 Dosing System (scaling inhibitor)

Scale dosing system

Flow: 1.5L/H Range:60M

Dosing tank: 40L (PE)

 1set SEKO
7 5μm Security Filter

Material: PVC

Filter Size: 20 "× 5μm

Cartridge quantity: 3 pcs

 1set

CHUNKE
8 1μm Security Filter

Material: PVC

Filter Size: 20 "× 5μm

Cartridge quantity: 3 pcs

 1set

CHUNKE
9 Seawater High Pressure Plunger Pump

Model: 3DP35

Material:SS316

Flow:2000L/H6.0MPa,K=4.0kw

280RPM

safety valve, and pipe fittings

 1 set
10 Reverse Osmosis Water Desalination System

Water production capacity: 500L/H

Desalination rate:96%～99%

Membrane housing: 4040-1; 3pcs.

Material: FRP,1000PSi

Toray membrane element TM810; 3pcs

Machine frame: SUS304

Feed water valve:φ32MM

Concentrated water valve:φ25MM

Flushing water inlet electric valve: φ25MM

Concentrated Water Flow Regulator: φ25MM

 1set
11 RO Washing System 1set CHUNKE
Washing pump

Model: CHL2-30

Material:SS304

Flow:2m3/ H,Range: 21m ; K=0.55kw

water inlet valve, check valve and pipe fittings

 1set

CNP
Washing tank

Capacity:100L

Material:Anti-corrosive PE

 1set CHUNKE
Washing filter

Material:SS304

Filter Size: 20 "× 5μm

Cartridge quantity: 3 pcs

 1set CHUNKE
12 Electronic Control Box

Mitsubishi PLC programmable controller,

Korean pressure controller and time controller, start & stop control automatically by the water level in the raw water tank and the pure water tank

 1set Mitsubishi
13 Filter Material

Quartz sand: 200KG

PP filter cartridge: 25 pcs

 1 batch
14 Pressure Instruments

A, Desalination high pressure gauge 0～100kgf/cm², 3pcs

B, High-pressure pump low pressure protection switch, 2pcs

C,System pressure gauge, 0～6kgf/ cm², 3pcs

D, raw water conductivity meter

E, pure water conductivity meter CM230

F, Mitsubishi PLC controller

 1set
15 Flow Meters

A, Pure water flowmeter: 5GPM

B, Concentrated water flowmeter: 10GPM

 1set
16 Inspection Instruments

Handheld PH meter

Handheld TDS device

 1 pcs
17 Pure Water Tank

Capacity: 1000L

Material:Anti-corrosive PE

Accessories: inlet /outlet water valves, Water level control switch

 Provided by customer
