6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
Specifications
Brand Name :
Chunke
Model Number :
CK-SW
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Discussible
Payment Terms :
Cash,PayPal, T/T, L/C, Western Union
Supply Ability :
1000 unit per month
Delivery Time :
7-15 days
Packaging Details :
Standard package
Item :
6TPH Seawater Desalination Equipment For Drinking Water and Irrigation With RO Membrane
Raw water pump :
CHL8-40 SS304 )
Tank material :
FRP
Voltage: :
380V
Capacity :
6000L per hour or by order
Model :
CK-SW
Warranty :
1 year
Certificate :
CE,ISO
Description

6TPH Seawater Desalination Equipment For Drinking Water and Irrigation With RO Membrane

CK-RO-6000L(A1)One stage Reverse osmosis water equipment configuration

NO. Device Description Origin/brand Quantity
1 Raw water pump(CHL12-30 SS304 ) CNP 1 Set
A. Flow: 10.0m3/H Head: 33m K = 1.8kw
B. Including: inlet valve, return valve, pipe fittings and so on
2 Sand filter φ900×1850MM CHUNKE 1 Set
A. FRP tank CHUNKE
B. Manual Valve Runixn 1 Set
C. Top&bottom water distributor 1 Set
3 Carbon filter φ900×1850MM CHUNKE 1 Set
A. FRP tank CHUNKE
B. Manual Valve Runixn 1 Set
C. Top&bottom water distributor 1 Set
4 5μm Cartridge filter 230*1000MM CHUNKE 1 Set
A. Model: CK-40''*7core material: SS304 CHUNKE 1 Set
B. 40″×5μm PP filters China 7pcs
5 High pressure pump CDLS12-10 CNP 1 Set
A. Flow: 11.0m3/h Head: 106m
B. Material: SS304 K=7.5KW
C. Including: Ball valve, check valve and pipe
6 Reverse osmosis water production: 6m3/h, desalination rate:96～99%, System water utilization: 60-70% 1 Set
A. Membrane housing 8040-2core FRP CHUNKE 3pcs
B. Membrane element RO-8040 VONTRON 6pcs
C. 304 Stainless steel frame 1Set
D. Water supply solenoid valve DN50 1PC
E. Concentrated water solenoid valve DN32 1 Set
F. High pressure water inlet valve DN50 1PC
G. Concentrated water flow control valve DN32 1 Set
H. Water inlet check valve DN50
7 CIP Washing equipment
A. Wleaning pump (CHL8-30, stainless steel) CNP 1 Set
Flow: 11m3/ H Head: 21m K=1.1kw
Including: return valve, pipe and so on
B. Water tank cleaning system 400L PE 1 Set
Including: inlet and outlet pipe lines 1 Set
C. Cleaning filters 30″×5core SS304 1 Set
30″×5μm PP filters 5PCS
8 Pressure gauges China 1 Set
A. Reverse osmosis pressure gauge 0～2.5MPA China 2pcs
B. Pretreatment pressure gauge 0 ~ 0.7MPA 4pcs
C. High pressure pump low pressure protection switch China 1PC
D. High pressure pump high pressure protection switch China 2PCS
E. Pure water conductivity meter China 1 Set
F. Water - producing conductivity meter China 1 Set
9 Flowmeter China
A. Water flow meter 20GPM China 1 Set
B. Concentrated water flow meter 10GPM
C. Return flow meter 10GPM China 1 Set
10 Pipe fittings, valves U-PVC China 1 Set
11 Electronic control system CHUNKE 1 Set
Control characteristic: The system uses the French Schneider Electric components, the use of PC program controller automatic control, RO membrane automatic washing, the original water tank low water level and pure water tank high water level automatic shutdown, pure water tank low water level automatic start, low pressure, Over-current protection and alarm function, reserved manual operation function, easy to debug and emergency treatment
12 Filter Media China 1 Set
A. Quartz sand China 1200KG
B. Activated carbon China 300KG

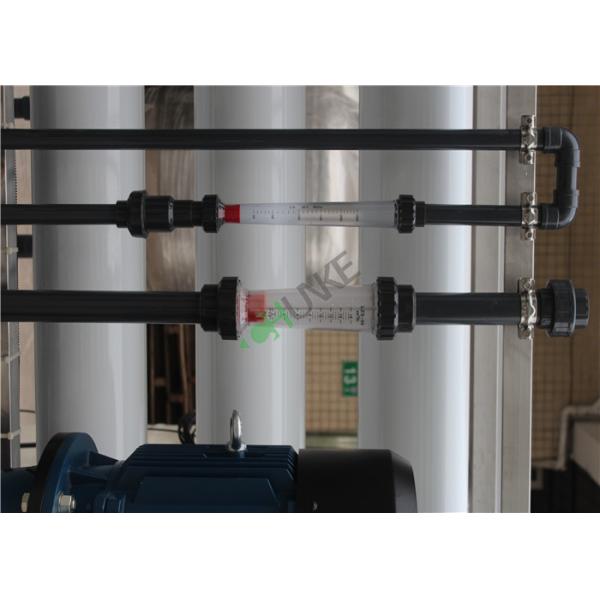

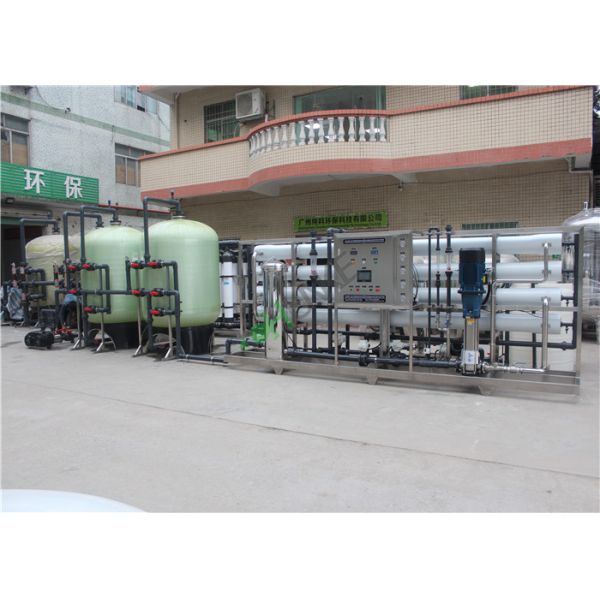

Detail Pictures :


6TPH Seawater Desalination Equipment For Drinking Water And Irrigation6TPH Seawater Desalination Equipment For Drinking Water And Irrigation6TPH Seawater Desalination Equipment For Drinking Water And Irrigation
