Specifications
Brand Name :
Chunke
Model Number :
CK-SW
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Discussible
Payment Terms :
Cash,PayPal, T/T, L/C, Western Union
Supply Ability :
1000 unit per month
Delivery Time :
7-15 days
Packaging Details :
Standard package
Item :
Sea Water Filtration Plant
Raw water pump :
CHL8-40 SS304 )
Tank material :
FRP
Voltage: :
380V
Capacity :
5T or by model
Model :
CK-SW
Warranty :
1 year
Certificate :
CE,ISO
Description

5m³/H Reverse Osmosis Seawater Saltwater Desalination Plant Technical Configuration

CK-RO-5000L(A1)One stage Reverse osmosis water equipment configuration

NO. Sea Water Filtration Plant Description Origin/brand Quantity
1 Raw water pump(CHL8-40 SS304 ) CNP 1 Set
A. Flow: 9.0m3/H Head: 33m K = 1.5kw
B. Including: inlet valve, return valve, pipe fittings and so on
2 Sand filter φ750×1975MM CHUNKE 1 Set
A. FRP tank CHUNKE
B. Manual Valve F56D Runixn 1 Set
C. Top&bottom water distributor 1 Set
3 Carbon filter φ750×1975MM CHUNKE 1 Set
A. FRP tank CHUNKE
B. Manual Valve F56D Runixn 1 Set
C. Top&bottom water distributor 1 Set
4 5μm Cartridge filter CHUNKE 1 Set
A. Model: 7 core material: SS304 CHUNKE 1 Set
B. 30″×5μm PP filters China 7pcs
5 High pressure pump CDLS8-14 CNP 1 Set
A. Flow: 9.0m3/h Head: 122m
B. Material: SS304 K=5.5KW
6 Reverse osmosis water production: 5m3/h, desalination rate:96～99% 1 Set
A. Membrane housing 8040-2core FRP CHUNKE 2pcs
B. Membrane element ULP21-8040 4pcs
C. 304 Stainless steel frame 1Set
D. Water inlet solenoid valve 1PC
E. Concentrated water solenoid valve 1 Set
F. High pressure water inlet valve 1PC
G. Concentrated water flow control valve 1 Set
7 Pipe fittings, valves U-PVC China 1 Set
8 Electronic control system CHUNKE 1 Set
Main cotrol box:PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller.
9 Filter Media China 1 Set
A. Quartz sand China 800KG
B. Activated carbon China 175KG
10 Pressure gauges China 1 Set
A. Reverse osmosis pressure gauge 0～25kgf/ cm2 China 4pcs
B. High pressure pump low pressure protection switch China 1PC
C. Reverse osmosis system High voltage protection switch China 1PC
D. System pressure gauge 0～7kgf/ cm2 China 2pcs
E. Pure water conductivity meter China 1 Set
F. Water - producing conductivity meter China 1 Set
11 Flowmeter (5-30 m3/h) China
A. RO Water flow meter 20GPM China 1 Set
B. RO Concentrated water flow meter 10GPM
C. RO Return flow meter 10GPM China 1 Set
12 Washing equipment
A. Wleaning pump (CHL4-40, stainless steel) CNP 1 Set
Flow: 7.0m3/ H Head: 19m K=0.75kw
B. Water tank cleaning system 300L 1 Set
C. Cleaning filters 30″×5μm PP filters/φ230×750MM 1 Set

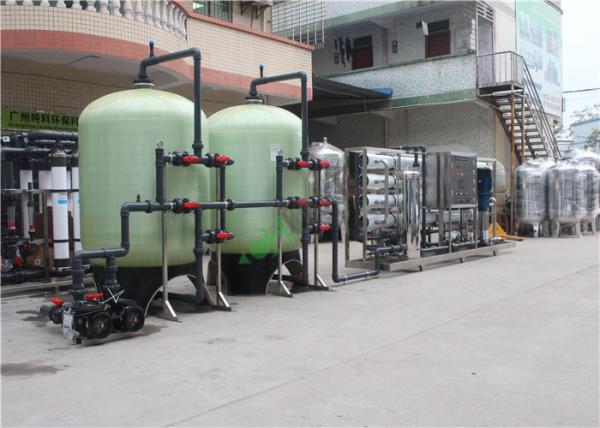

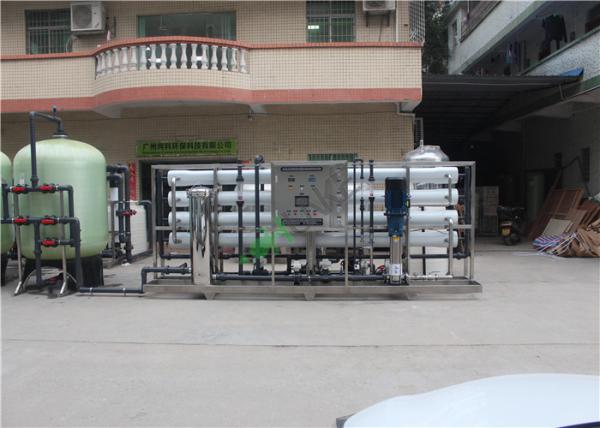

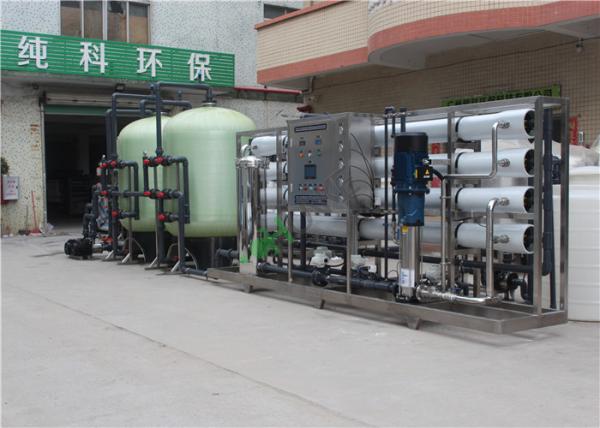

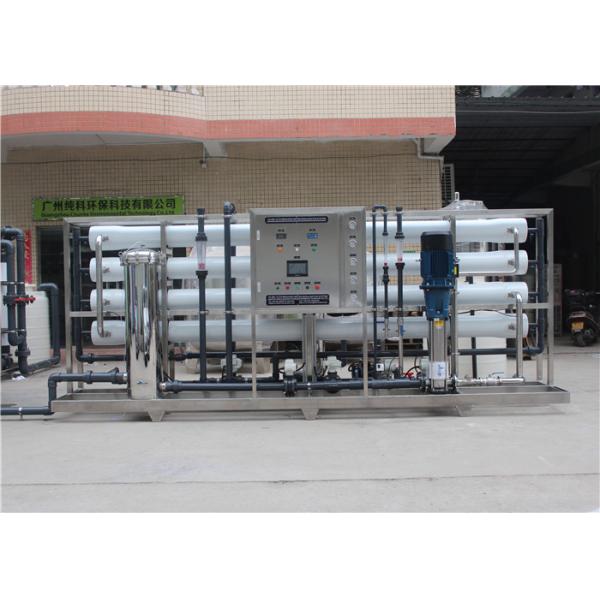

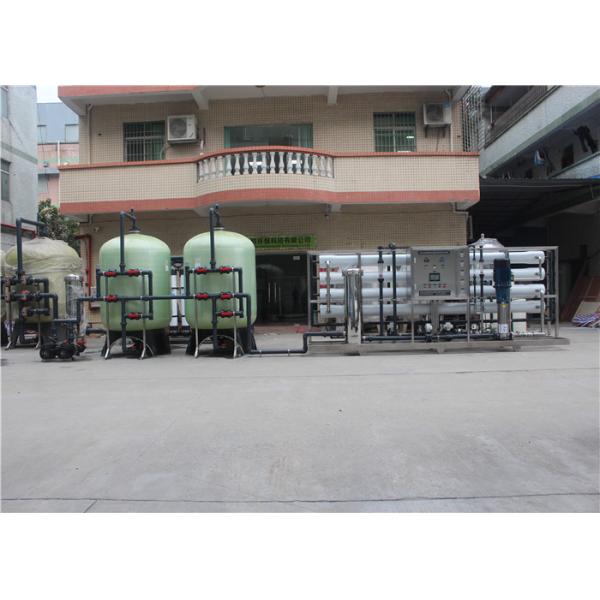

Detail Pictures :


Reverse Osmosis Sea Water Filtration Plant / Seawater RO System 5m³/HReverse Osmosis Sea Water Filtration Plant / Seawater RO System 5m³/H
