One Stage RO Water Treatment System Strong Acid Exchanging Resin Medium
One Stage RO Water Treatment System Strong Acid Exchanging Resin Medium
One Stage RO Water Treatment System Strong Acid Exchanging Resin Medium
One Stage RO Water Treatment System Strong Acid Exchanging Resin Medium
One Stage RO Water Treatment System Strong Acid Exchanging Resin Medium
One Stage RO Water Treatment System Strong Acid Exchanging Resin Medium
Specifications
Brand Name :
CHUNKE
Model Number :
CK-RO
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
TT
Supply Ability :
20 units per month
Delivery Time :
10-15 working days
Packaging Details :
wooden box package
Name :
One Stage RO Water Treatment System Purifier Drinking Water Plant
Flow :
0.5-100T per hour
Valve :
Automatic / manual
Pump :
CNP
Membrane :
DOW
Application :
Water Purification
Description

One Stage RO Water Treatment System Purifier Drinking Water Plant

This mineral water processing plant is used for purify the pure water, mineral water, and drinking water in beverages.

The whole system includes the water tanks, water pumps, multi-medium filter, active carbon filter, water softener, micro filter, reverse osmosis,
hollow fiber super filter, water sterilizer (ozone and U.V ray sterilizer). There are some additional machines according to the customers'
requirement and the raw water quality.
Characteristics:
Quartz sand filter
Components: Water distributor, water gather, pressure gauge, filter material, valves and so on.
Filter medium: Quartz sand
Specification: ф2mm, ф1mm, ф0.5mm, ф0.2mm
The bigger shall be put downside and the smaller shall be put upside.
Usage: It is mainly used to remove Plankton, Moss, Suspension, Colloid and so on.
Active carbon filter
Components: Water distributor, water gather, pressure gauge, filter material, valves and so on.
Medium: Shuck shape active carbon
Usage: It is mainly used to remove strange smell, chlorine, chloride, organic mater and heavy mental, lower color and optimize water quality.
Water softener
Components: Water distributor, water gather, pressure gauge, filter material, strong acid exchanging resin, solution measurement, valves and so on.
Medium: Strong acid exchanging resin
Usage: It is mainly used to remove the calcium and magnesium ion.
Micro filter
Medium: Polypropylene film
Filter precision: 0.1-5μm
Usage: It is mainly used to remove the tiny impurity.

Different Water TDS(Total Dissolved Solids) compare and usage

Raw water/
Application		 Bottled water,
Bag water		 City tap water Brackish water Seawater
TDS Range 2-10ppm 100-1000ppm 2000-20000ppm 20000-40000ppm
Direct Drinking Yes Yes/No No No
Cooking, human
consumption, washing		 Yes Yes No No
Irrigation, Industry,
Animal Drinking		 Yes Yes No No


The process of RO water treatment system


Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger
(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer)

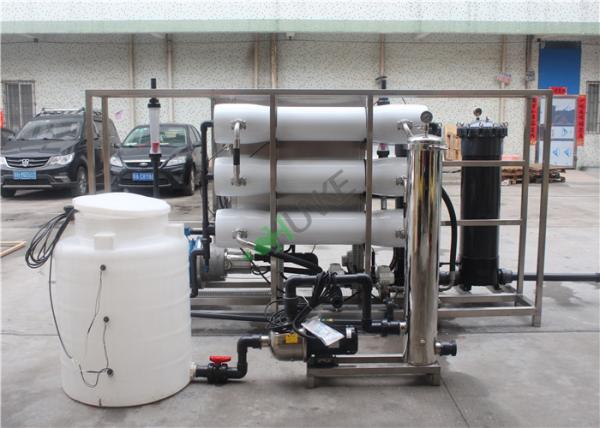

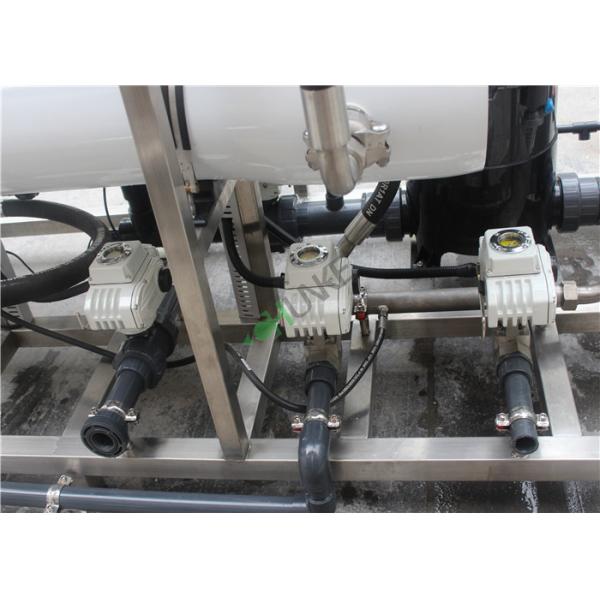

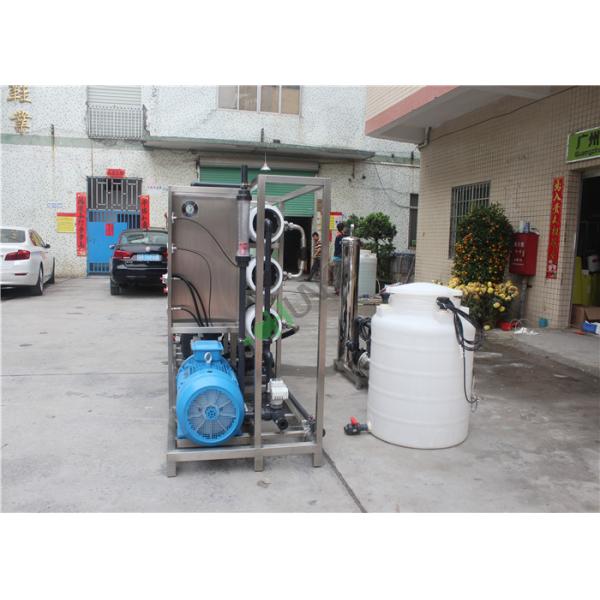

RO System Detail Picture

One Stage RO Water Treatment System Strong Acid Exchanging Resin MediumOne Stage RO Water Treatment System Strong Acid Exchanging Resin MediumOne Stage RO Water Treatment System Strong Acid Exchanging Resin Medium
