Automatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis Machine
Automatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis Machine
Automatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis Machine
Automatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis Machine
Automatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis Machine
Automatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis Machine
Specifications
Brand Name :
Chunke
Model Number :
CK-RO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 units per month
Delivery Time :
10-15 working days
Packaging Details :
Wooden or carton
Name :
Salt Water Purifier Making Salt Water To Dring Water Reverse Osmosis Machine
Flow :
0.5-100T per hour
Valve :
Automatic / manual
Pump :
CNP
Membrane :
DOW
Application :
Water Purification
MOQ :
1
Votage :
220V/380V
Description

Salt Water Purifier Making Salt Water To Dring Water Reverse Osmosis Machine

Reverse osmosis systems, with the most general definition, is removal process of the anion and cation ions by an advanced filtration method which the highest technologies are used as a water treatment system.

Water is forced to pass from a semi-permeable membranes pages which has 5 angstrom size pores with diameters by applying high pressure. Water, cross flows from the surface to the center of the membrane. During this transition, organic and inorganic substances, heavy metals, projects veins, bacteria, etc. in the structure of the water retains by the membrane and discharges from the reject line. %95 – %99 Purified water can be collected to a tank through permate line. System “autoflush” before the production starts in order to clean the surface of the membrane

Specifications:

1 Water pump CNP brand or Grundfos brand [Optional]
2 Tank/Vessel Stainless steel 304 or Fiber glass [Optional]
3 RO membrane DOW/Hydranautics/ Toray or Equal brand [Optional]
4 CIP system CNP brand or Grundfos brand [Optional]
5 PP filter Stainless steel 304 or Fiber glass [Optional]
6 PLC control Omron/Mitsubishi/Siemens brand [Optional]
7 Electronic component Schneider brand [Optional]
8 Pipeline Stainless steel 304 or U-PVC [Optional]
9 Production capacity 500L/H

Different Water TDS(Total Dissolved Solids) compare and usage

Raw water/
Application		 Bottled water,
Bag water		 City tap water Brackish water Seawater
TDS Range 2-10ppm 100-1000ppm 2000-20000ppm 20000-40000ppm
Direct Drinking Yes Yes/No No No
Cooking, human
consumption, washing		 Yes Yes No No
Irrigation, Industry,
Animal Drinking		 Yes Yes No No


The process of RO water treatment system


Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger
(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer)

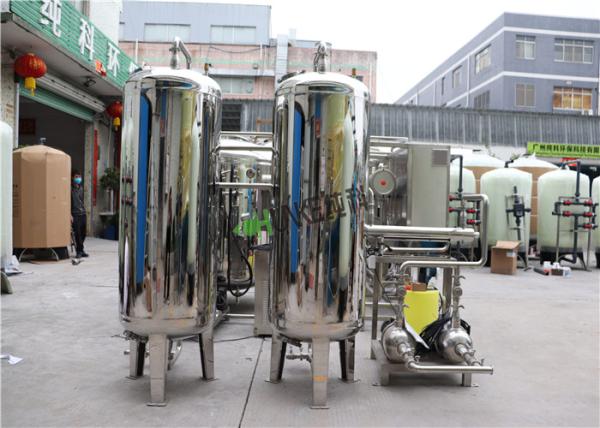

RO System Detail Picture

Automatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis MachineAutomatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis MachineAutomatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis MachineAutomatic Valve Salt Water To Drinking Water Purifier / Reverse Osmosis Machine
