Specifications
Brand Name :
Chunke
Model Number :
CK-RO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 units per month
Delivery Time :
10-15 working days
Packaging Details :
Wooden or carton
Name :
2000L Per Hour Water purifying system Seawater Desalination Equipment
Flow :
0.5-100T per hour
Valve :
Automatic / manual
Pump :
CNP
Membrane :
DOW
Application :
Water Purification
Description

2000L Per Hour Water purifying system Seawater Desalination Equipment


WHAT IS SEAWATER REVERSE OSMOSIS?

Seawater reverse osmosis systems are designed to decline more than 99% of saline compromised within the feed water. These systems also incorporate a rinsing, chemical purifying apparatus to eliminate sodium chloride, avert scaling, and preserve system performance. There are two fundamental elements within every seawater reverse osmosis system, which are reverse osmosis membranes and high pressure feed pumps. These elements make up the center of any reverse osmosis system and need special consideration and application for successful operation.

DOES REVERSE OSMOSIS REMOVE SALT FROM SEAWATER?

Yes, semipermeable membranes enable the feed water to pass through it at a much higher volume than dissolved salts. Reverse osmosis systems work by applying pressure as freshwater streams through its membranes to filter out the concentrated saline in the feed water, as well as minerals and pollutants. These unwanted impurities are either flushed away, recycled, or processed. Seawater reverse osmosis systems utilize more than one membrane to boost the load of purified water turned out each day.

Specifications:

1 Water pump CNP brand or Grundfos brand [Optional]
2 Tank/Vessel Stainless steel 304 or Fiber glass [Optional]
3 RO membrane DOW/Hydranautics/ Toray or Equal brand [Optional]
4 CIP system CNP brand or Grundfos brand [Optional]
5 PP filter Stainless steel 304 or Fiber glass [Optional]
6 PLC control Omron/Mitsubishi/Siemens brand [Optional]
7 Electronic component Schneider brand [Optional]
8 Pipeline Stainless steel 304 or U-PVC [Optional]
9 Production capacity 500L/H

Different Water TDS(Total Dissolved Solids) compare and usage

Raw water/
Application		 Bottled water,
Bag water		 City tap water Brackish water Seawater
TDS Range 2-10ppm 100-1000ppm 2000-20000ppm 20000-40000ppm
Direct Drinking Yes Yes/No No No
Cooking, human
consumption, washing		 Yes Yes No No
Irrigation, Industry,
Animal Drinking		 Yes Yes No No


The process of RO water treatment system


Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger
(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer)

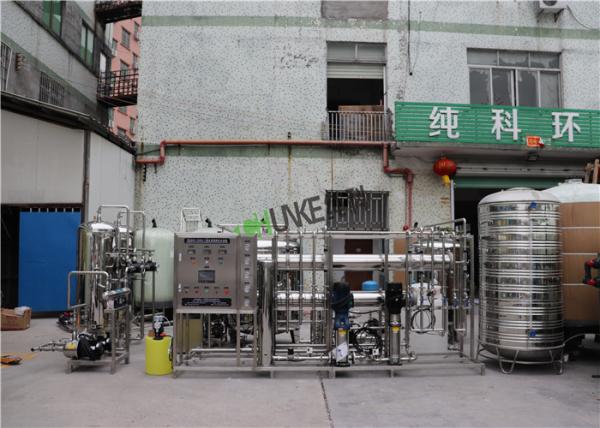

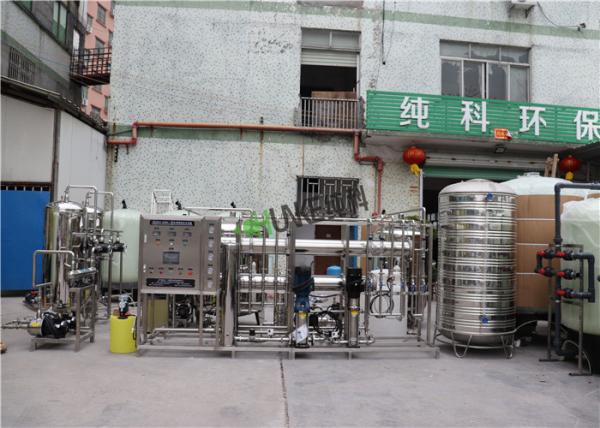

RO System Detail Picture

2000L Per Hour Water Purifying System With Omron / Mitsubishi PLC Control2000L Per Hour Water Purifying System With Omron / Mitsubishi PLC Control2000L Per Hour Water Purifying System With Omron / Mitsubishi PLC Control
