Stainless Steel Filter Housing Water Storage Tank / Mixing Tank Vessel
Stainless Steel Filter Housing Water Storage Tank / Mixing Tank Vessel
Stainless Steel Filter Housing Water Storage Tank / Mixing Tank Vessel
Stainless Steel Filter Housing Water Storage Tank / Mixing Tank Vessel
Stainless Steel Filter Housing Water Storage Tank / Mixing Tank Vessel
Stainless Steel Filter Housing Water Storage Tank / Mixing Tank Vessel
Specifications
Brand Name :
Chunke
Model Number :
CK-SS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
850 unit per month
Delivery Time :
7-15 working days
Packaging Details :
In wooden case or protection warp carton.
Name :
Stainless Steel Filter Housing Water Storage Tank Mixing Tank Vessel
Material :
SS304 316
Capacity :
500L-200000L
Application :
Ro, UF plant
Condition :
New
Shape :
Vertical Type
MOQ :
1pc
Size :
Standard or Customized
Description

Stainless Steel Filter Housing Water Storage Tank Mixing Tank Vessel

Stainless Steel Filter housing Working principle:


This carbon filter consists mainly of carbon layer and supporting layers. Activated carbon has developed porosity, surface area, has the very high adsorption ability. It is by active carbon this characteristic, it is in the deep treatment who is widely used, such as drinking water, sewage hind paragraph (water) deep processing, etc.
Use active carbon adsorption after period of time, a large amount of adsorption qualitative, gradually becoming saturated, lose working ability, serious when will penetrate filter layer, and therefore should be timely regenerate active or replacement.
Supporting layer's main function is to prevent activated carbon from equipment in water erosion, when using rinse water plays a certain role uniform cloth.
The main technique parameters:
Filtration speed: 8-12m/h water turbidity: < 15mg/L
Effluent turbidity: 5mg/L working temperature: under normal temperature
Working pressure: < 0.4 Mpa filter material layer height: 1000-1200mm
Reverse-wash compressed air quantity: 18-25L/m2. S compressed air pressure: 0.1-0.2 Mpa
Reverse-wash strength: 15L/m2. S (single) 12L/m2. S (double) backwash time: 5-10 minutes

Tability.

Material stainless steel
Working pressure 0.5-0.6MPa
Housing material SUS304/316L
Filter media mirror polishing
Bag 3
Inlet/outlet thread or flange or TC connection
Used water treatment


Filter technology parameters

Filter filtration rate: 8 ~ 300m3 / h
Backwash time: 8 to 10
Working pressure: ≤ 0.6Mpa
Flushing filter head loss: 0.8
Water outlet: 2-5mg/L
Water inlet: <10mg/L
Water outlet: <2mg/L
Design temperature: 5 ~ 4000C
Single sand filter Height: 700mm (height for circulating water sand filter 500mm)

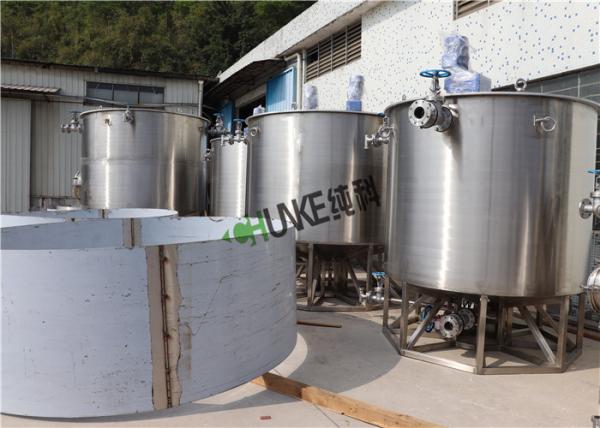

Stainless Steel Filter Housing Detail Picture

Stainless Steel Filter Housing Water Storage Tank / Mixing Tank VesselStainless Steel Filter Housing Water Storage Tank / Mixing Tank VesselStainless Steel Filter Housing Water Storage Tank / Mixing Tank Vessel
