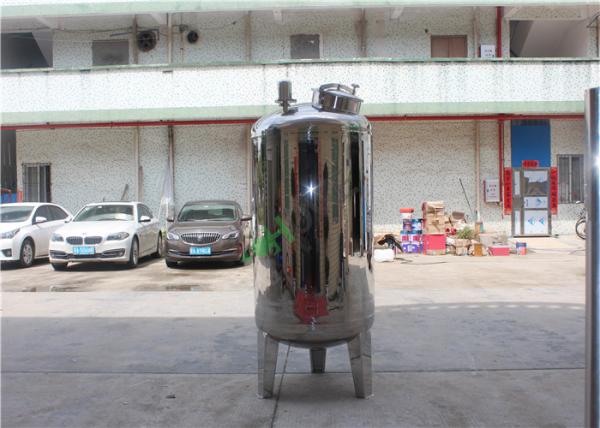

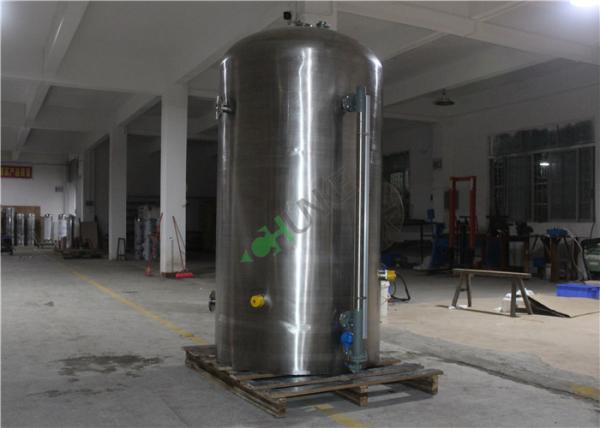

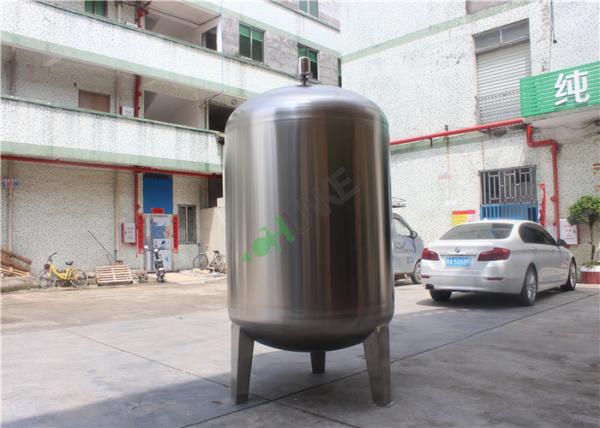

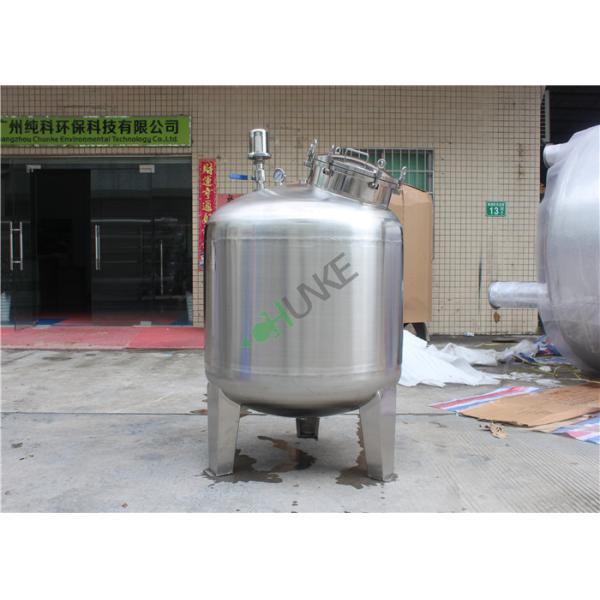

Stainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer Tank
Stainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer Tank
Stainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer Tank
Stainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer Tank
Stainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer Tank
Stainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer Tank
Specifications
Brand Name :
Chunke
Model Number :
CK-WF
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
Paypal, L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per month
Delivery Time :
7-15days
Packaging Details :
Wooden or carton
Product :
Stainless Steel Food Grade Liquid Water Milk Buffer Beer Tank
material :
SS304/SS316(L)
Application :
Chemical/Pharmacy/Cosmetics Liquid
Temperature Control :
Manual / Semi-Auto / Automatic
Thickness :
2-10mm
Capacity :
0.5T-100T
Brand :
Chunke
Original :
Guangzhou
Description

Stainless Steel Food Grade Liquid Water Milk Buffer Beer Tank ​

Introduction of the buffer tank


Surface roughness: inside surface roughness is Ra0.28-0.4μm, outside surface roughness is Ra0.6-0.8μm.
Jacket form: Dimple jacket, full jacket or coil jacket.
Insulation materials: rock wool, polyurethane or pearl cotton.
Components: Vent filter, sight glass, pressure gauge, manhole, cleaning ball, wheel, thermometer, liquid level gauge, and control system or according to clients' specific requirements, such as load cell or other special requirements.
Specification: 30L-20000L
Opition Top agitator: mechanical agitator, 10-71rpm

Standard Configuration of buffer tank :
1) Manhole
2) CIP cleaning ball
3) Adjustable triangle bracket
4) Ladder
5) Thermometer
6) Liquid lever meter and controller
7) vacuum intake
8) Dismount Inlet assembly
9) Sanitary aseptic vent filter
10) safety valve (pressure release)

Application of buffer tank :
Food, Beverage, Wine, Beer, Juices, beverage, Pharmaceutical, Biotechnology, Laboratory as well as Chemical Industry ,Painting Industrial and water treatment


Technical parameter


Warm prompt:


1.the nominal capacity of storage tank,as a standard configuration parameters ,such as size, such as customer requires otherwise ,please put forward .


2.process parameters ,selection of storage tank should be provide :the material properties,working pressure,working temperature,special requirement etc.

Nominal capacity 300L 400L 500L 600L 800L 1000L 1500L 2000L 3000L
Cylinder diameter(mm) ø800 ø800 ø900 ø1000 ø1000 ø1200 ø1300 ø1300 ø1600
shell height(mm) 600 800 800 800 1000 1000 1200 1500 1500
working temperature <100 degree
basic parts manhole,cleaning ball ,level gauge(over 500L )

Filter Housing more picture:

Stainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer TankStainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer TankStainless Steel Food Grade RO Water Storage Tank Liquid Water Milk Buffer Beer Tank
