Big Size Seawater Desalination RO System, Solar Power Seawater Desalination
Seawater desalination equipment mainly adopts the permeation concept of reverse osmosis membranes. Using the permeation principle,
reverse osmosis membranes filter salt in seawater except for concentrated water, leaving clean water for drinking. With the pipeline outflow, the
next step of treatment is carried out. This process becomes osmotic pressure, the appropriate pressure of water supply, the impurities and salts
in the water are removed, leaving clean water to achieve the purpose of reverse osmosis desalination.
.
Model | Capability(T/H) | Operation(MPa) | Membrane(Inch) | Membrane(Qty) | Power(KW) |
RO-125L | 0.125 | 1.0-1.4 | 4021 | 1 | 1.1 |
RO-250L | 0.25 | 1.0-1.4 | 4040 | 1 | 1.1 |
RO-500L | 0.5 | 1.0-1.4 | 4040 | 2 | 1.5 |
RO-750L | 0.75 | 1.0-1.4 | 4040 | 3 | 2.2 |
RO-1000L | 1 | 1.0-1.4 | 4040 | 4 | 2.2 |
RO-1500L | 1.5 | 1.0-1.4 | 4040 | 6 | 3 |
RO-2000L | 2 | 1.0-1.4 | 4040 | 8 | 3 |
RO-3000L | 3 | 1.0-1.4 | 4040 | 12 | 4 |
RO-5000L | 5 | 1.0-1.4 | 8040 | 5 | 5.5 |
RO-10000L | 10 | 1.0-1.4 | 8040 | 10 | 11 |
RO-15000L | 15 | 1.0-1.4 | 8040 | 15 | 15 |

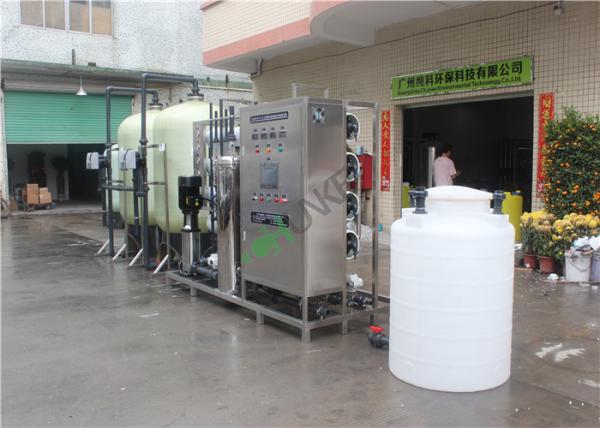

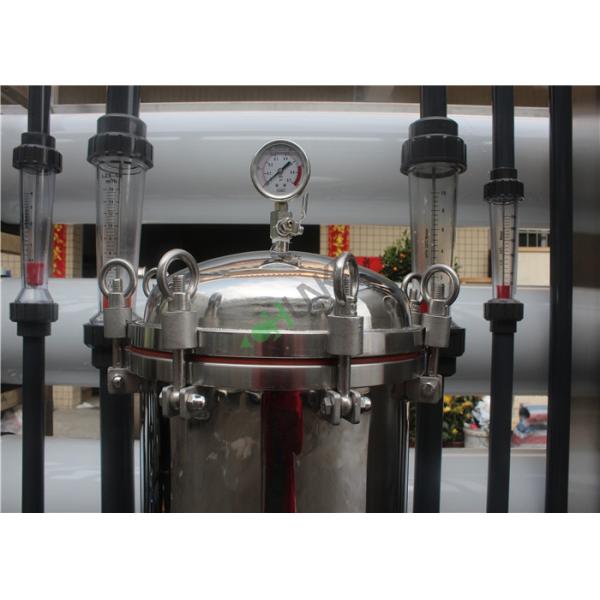

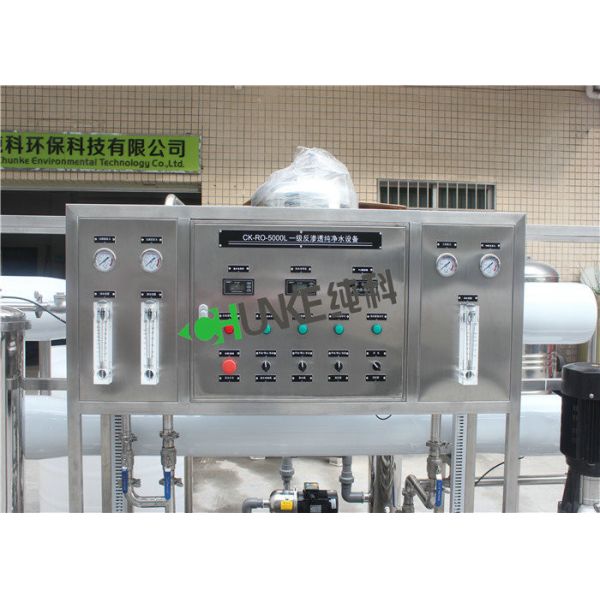

RO Water Treatment Plant Detail Pictures:
