Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Specifications
Brand Name :
Chunke
Model Number :
CK-SS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
850 unit per month
Delivery Time :
7-15 working days
Packaging Details :
In wooden case or protection warp carton.
Name :
Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank
Material :
SS304
Application :
water treatment machine
Delivery time :
1 week
MOQ :
1 unit
Capacity :
Customized
Warranty :
1 year
Size :
Different size
Description

Auto Backwashing Control Stainless Steel Pressure Sand Filter Tank​

Features:

1, Small footprint

2, Able to deal with large volume of wastewater per hour

3, Perfect welding of 316 stainless steel, working pressure up to 1.6Mpa

4, Those tanks were line with silicone, high corrosion resistant performance

5, Made with international standard materials


Application

Mechanical Filter (Alao called pressure filter ), It's very important procedure in pure water pretreatment and water purify system.

In water treatment field, filtration is a kind of water purifying process.Mostly filter medias are silica

sand (widely use),anthracite and so on. Filter medias include three type:granular, powdery and fibroid. Silica sand,anthracite, activated carbon,

megnetite,ceramic, plastic ball, ect.

According to actual demands, some multi media filter (filter bed) will use two kinds of media layers. In industrial water recycling system, can

effectively remove impurity,absorb oil ect, at last to reach

water recycling standard. Mainly functions are remove suspended or colloidal impurity, especially

effectively remove small particle and bacterium, also can remove BODs and COD in certain level.

Model
Specification
Thickness(mm)
Material
835
Φ200*900
1.2
SUS304/SUS316
844
Φ200*1100
1.2
SUS304/SUS316
1035
Φ250*900
1.2
SUS304/SUS316
1044
Φ250*1100
1.2
SUS304/SUS316
1052
Φ250*1300
1.5
SUS304/SUS316
1054
Φ250*1350
1.5
SUS304/SUS316
1252
Φ250*1300
1.5
SUS304/SUS316
1254
Φ300*1350
1.5
SUS304/SUS316
1265
Φ300*1650
1.5
SUS304/SUS316
1465
Φ350*1650
2
SUS304/SUS316
1665
Φ400*1650
2
SUS304/SUS316
1865
Φ450*1600
2.5
SUS304/SUS316
2065
Φ500*1600
2.5
SUS304/SUS316
2265
Φ550*1600
3
SUS304/SUS316
2472
Φ600*1800
3
SUS304/SUS316
2672
Φ650*1800
3
SUS304/SUS316
2872
Φ700*1800
3
SUS304/SUS316
3072
Φ750*1800
3
SUS304/SUS316
3272
Φ800*1800
3
SUS304/SUS316
3672
Φ900*1800
3
SUS304/SUS316
4272
Φ1000*1800
3
SUS304/SUS316
4872
Φ1200*1800
3
SUS304/SUS316

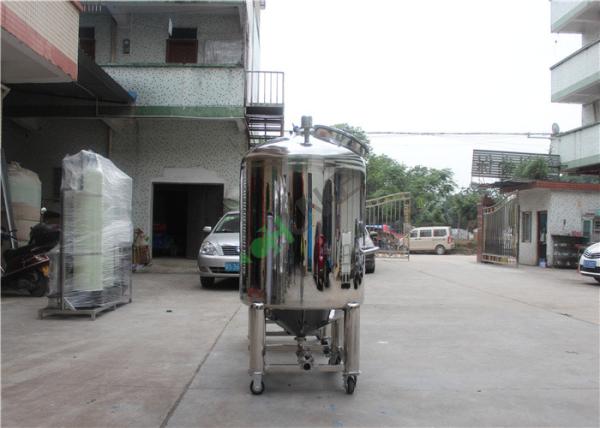

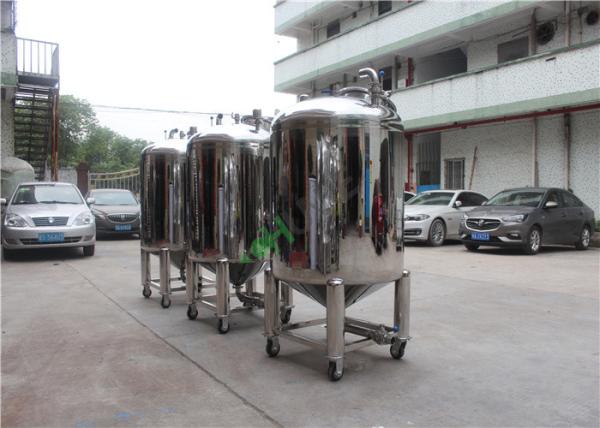

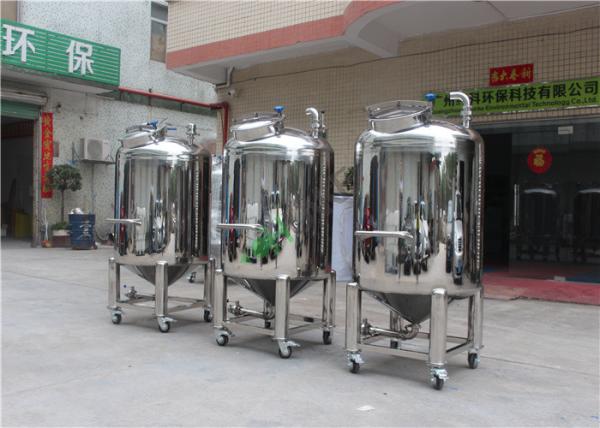

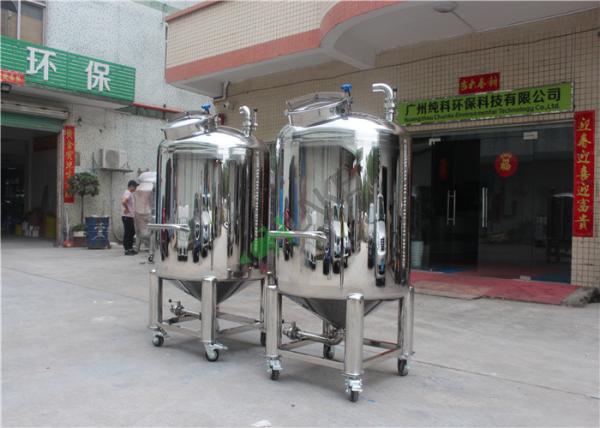

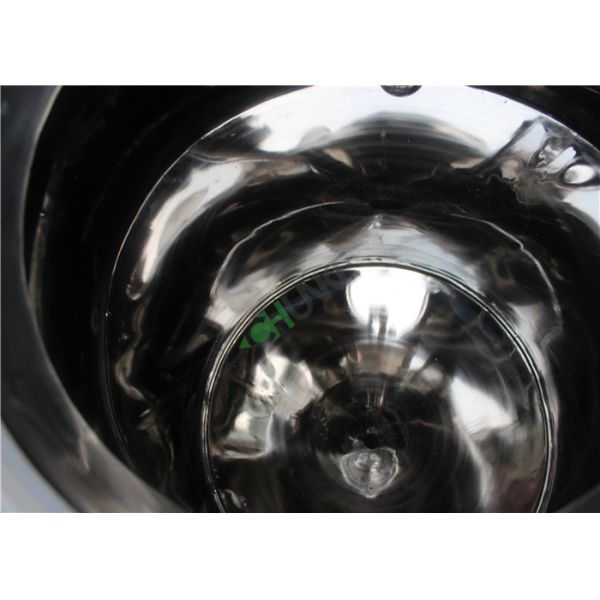

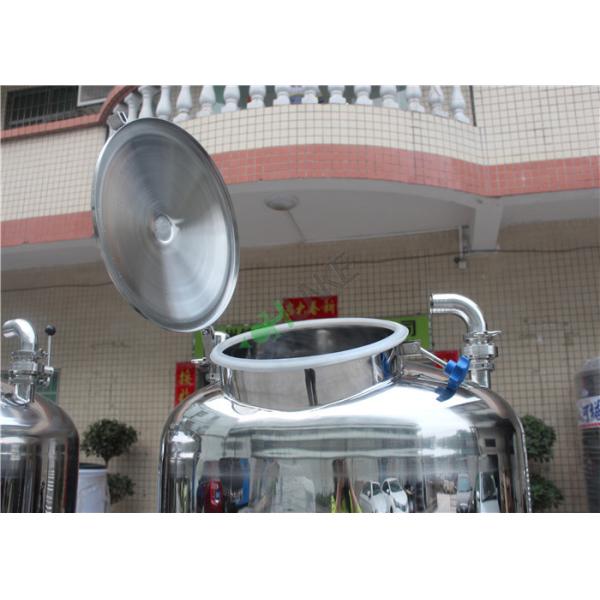

Stainless Steel Filter Housing Detail Picture

Auto Backwashing Control Stainless Steel Pressure Sand Filter TankAuto Backwashing Control Stainless Steel Pressure Sand Filter TankAuto Backwashing Control Stainless Steel Pressure Sand Filter Tank
