Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
Specifications
Brand Name :
CHUNKE
Model Number :
CK-WT
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Months
Delivery Time :
10 Days
Packaging Details :
standard packaging
Product :
SUS304 Stainless Steel Cartridge Filter Ss Cartridge Filter Housing
Material :
stainless Steel 304 or 316
Filter Type :
Cartridge Filtration housing
Size :
10", 20" ,30" ,40"
Warranty :
1 year
Customized :
Ok
MOQ :
1pc
Brand :
Chunke
Description

SUS304 Stainless Steel Cartridge Filter Ss Cartridge Filter Housing

Specification and technical parameter of the Clamp

Diameter specification flow rate Dimension of inlet and outlet
Φ167 3 core 10" 1T DN25
Φ167 3 core 20" 1.5T DN25
Φ219 5 core 10" 1.5T DN25
Φ219 5 core 20" 3T DN32
Φ219 5 core 30" 5T DN32
Φ219 5 core 40" 7T DN40
Φ219 7 core 10" 5T DN32
Φ219 7 core 20" 7T DN40
Φ219 7 core 30" 10T DN50


The sizes of these pores are between the 1-50 micron.


The capacity depends on the surface area from the bags. Bigger systems can clean up to more than 500 m3 /h (multi bag filters)


There are special bags for various chemicals.

Engineering


The liquid flows from the top of the filter house (manufactured in either stainless or epoxy coated carbon steel) and is distributed equally

amongst the bags. The liquid comes out at the bottom leaving the dirt behind.


Since the bag is locked in at the top of the vessel all the dirt is trapped inside the bag. The filter vessel never requires cleaning after use.


Bag filters systems are applied is various industries solutions. Treated liquids include: milk products, paint, lime, beer etc.


It can also help you with replacement from various filter bags.


01.Small probability for side-bag leakage , which effectively guarantee the filtering quality.


02.Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .


03.Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.


04.Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.


05.Based on the working principle and structure of Bag type filtering system,which is convenient to replace the filter bag and without

cleaning,and time saving and labor saving.


06.Filtration bag could be use repeated after cleaning to save cost.


07.bag filter application scope is broad, with flexible operation and multiple installation

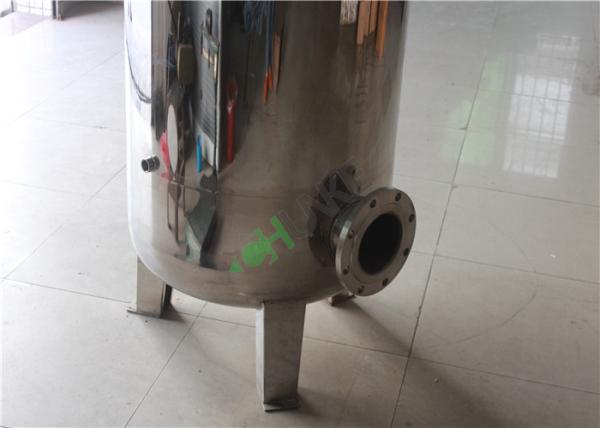

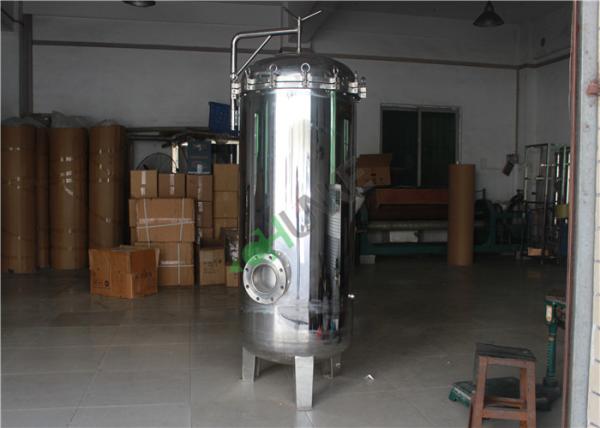

Cartridge Filter more picture

Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter

Ss Cartridge Filter Housing , SUS304 Stainless Steel Cartridge FilterSs Cartridge Filter Housing , SUS304 Stainless Steel Cartridge FilterSs Cartridge Filter Housing , SUS304 Stainless Steel Cartridge Filter
