Specifications
Brand Name :
CHUNKE
Model Number :
CK-UF-15T/H(A1)
Certification :
CE/ISO/SGS
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Sets Per Quarter
Delivery Time :
30 working days
Packaging Details :
wooden box package
Application :
Make water clear
Control :
automatic&manual
Membrane :
Ultrafiltration
Function :
remove turbidity
Capacity :
15T/H
Material :
Stainless Steel & FRP
Heat removal rate :
≥98%
Description


Industrial UF Purifier Water Treatment Plant 360t/D Ultra Filtration Ultrafiltration Mineral Technology Machine

Our machine detail:

ItemsCommodityOrigin/brand
1Raw water pool 20-50m3User-built
A, inlet and outlet pipes and control valves
B, water level switch
2Raw water pump SS304 CHM20-3CNP
A, flow: 20m3 / H head: 34m
B, power: 4.0kw Material: 304 stainless steel
C, including: return valve, pipe, etc.
320um bag filterCHUNKE
A, model: 230 × 810
B, shell material: 304 stainless steel
C, 810 × 20μm filter bag
4Sterilization dosing system SEKOItaly
A, flow: 8.0L / H lift: 35m
B, with the addition of medicine box 100L
C, fungicide
5Flocculant dosing system SEKOItaly
A, flow: 8.0L / H lift: 35m
B, with the addition of medicine box 100L
C, fungicide
6Quartz sand filter φ1200×2400MMCHUNKE
7Activated carbon filter φ1200×2400MMCHUNKE
81μm bag filterCHUNKE
9Ultrafiltration device Water production: 15m3/h, bacterial microbial removal rate: ≥99%, system water utilization rate: ≧80%, effluent turbidity: ≤ 2 NTU
IncludeA,ultrafiltration membrane element CK-UF-200CHUNKE
B. Water production per unit membrane element: 3-5.0m3/h
10Backwash tank 5.0m3China
11Backwashing pump CHM20-3CNP
12Backwash cleaning system (28m3/h)
13Pipeline valves all use food grade UPVC pipe valve partsChina
14Electrical control system / functionCHUNKE
Taiwan Weinview man-machine interface touch screen, Japan Mitsubishi PLC programmable controller automatic control, France Schneider Electric components, the original pool water shortage, clean water tank full automatic shutdown, clean water tank low water level automatic opening mechanism water, low pressure, high pressure, Overheating, overcurrent, overload protection and alarm functions, manual operation functions are reserved for easy commissioning and emergency handling.
15Pressure gaugeChina
16Flow meterChina
18UV Sterilizer 15T/H
19Water quality testing equipment
20Installation and commissioning / personnel training

Application:Industrial water, spring,sewage, wastewater treatment to mineral water, direct drinking water, beverage&food,win.,ect
Production Capacity: 15m3 per hour

Ultra-filtration (UF) is a membrane separation technique that purifies and separates solutions.
The ultrafiltration membrane system is a solution separation device in which an ultrafiltration membrane is used as a filter medium,
and a pressure difference on both sides of the membrane is a driving force.
The ultrafiltration membrane only allows the solvent (such as water molecules),
inorganic salts and small molecular organic substances in the solution to pass through,
and the macromolecular substances such as suspended matter, colloid, protein and microorganisms in the solution are intercepted,
thereby purifying or separating.

UF water treatment plant 15T/H Show:

Industrial UF Purifier Water Treatment Plant 360t/D Ultra Filtration Ultrafiltration Mineral Technology Machine

Reverse side of 15T/H ultra filtration system:

Industrial UF Purifier Water Treatment Plant 360t/D Ultra Filtration Ultrafiltration Mineral Technology Machine

Detail of 15000L Per hour industrial ultrafiltration machine:

Industrial UF Purifier Water Treatment Plant 360t/D Ultra Filtration Ultrafiltration Mineral Technology Machine

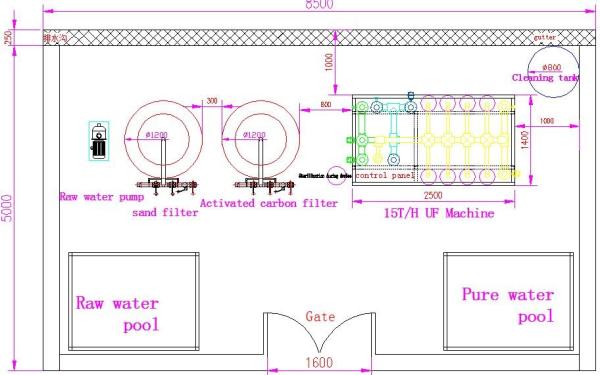

CK-UF-15T Schematic diagram of the layout of ultrafiltration water purification system

Industrial UF Purifier Water Treatment Plant 360t/D Ultra Filtration Ultrafiltration Mineral Technology Machine
