371hp Engine Sinotruk Howo 6x6 10 Ton Knuckle Boom Crane Truck
371hp Engine Sinotruk Howo 6x6 10 Ton Knuckle Boom Crane Truck
Specifications
Brand Name :
SINOTRUK
Model Number :
ZZ2257N5857A
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 units/month
Delivery Time :
15-25 days
Packaging Details :
nude package
Max. lifting Moment :
20T.M
Crane Model :
SQ10ZK3Q
Crane Weight :
3477kg
Crane capacity :
10ton
Crane type :
Knuckle boom crane
Engine :
WD615.47, 371hp
Drive type :
LHD/RHD
Warranty :
1 year
Description

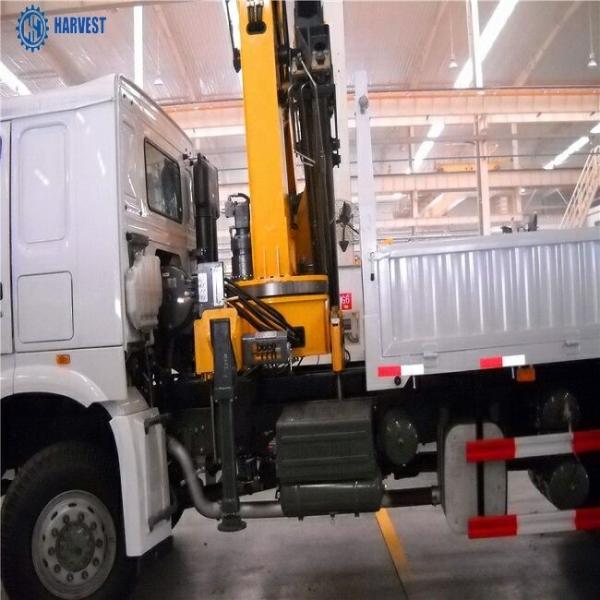

6x6 Sinotruk Howo Off Road Cargo Truck with 10 Ton Foldable Crane SQ10ZK3Q

Single cylinder synchronization guy cable technology makes work efficiency higher than before.
Advanced development means make sure that the design is very reliable.
The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity.
Compact hinge point design takes up smaller space.
The work is more safety after fitted with alarm device.
The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system.
Float three -point bridge structure design can lower the accessional stress on the chassis when traveling.
It has been fitted own powerful slewing of working in diversifying conditions. Anti-slewing impulse equipment makes vehicle running safety.

Crane Parameter

Model SQ10ZK3Q Unit
Max Lifting Moment 20 t.m
Max Lifting Capacity 10000 kg
Recommend Power Needed At Recommend Oil Flow 28 kw
Max Oil Flow of Hydraulic System 40 L/min
Rated Pressure Of Hydraulic System 28 MPa
Oil Tank Capacity 160 L
Rotation Angle (360°)All Rotation .
Crane Weight 3477 kg
Installation Space 1150 mm

SQ10ZK3Q Lifting capability diagram
Working radius (m) 2 4.17 5.99 7.87 9.75
Lifting capacity (kg) 10000 4600 3050 2280 1700
Specification
Truck Brand SINOTRUK—HOWO (LHD)
Truck Model ZZ2257N5857A
Driving Type

6X6 off road truck chassis

right hand driving optional
Dimension(L*W *H,mm) 11963x2496x3915
Cargo body size (L*W*H, mm)

8170*2400*550

bottom 3mm, side 1.5mm
Crane Model SQ10ZK3Q
Crane loading capacity 10,000KG
Crane Weight 3477KG
Installation space 1150mm
Rotation Angle 360°
Crane Type Knuckle boom

Engine

 Model WD615.69/47
Fuel type Diesel
Horse Power, max(kw/rpm) 336/371hp
Emission EURO II
Fuel tanker capacity(L) Standard type
Transmission HW19710,10 forward gears,2 reverse
Steering system ZF8198
Front axle STR
Rear axle ST16
Color Optional
Tire 12.00R20
Tire quantity 10+1 spare tire
Cab

HW76, single sleeper with air conditioner
