Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
Specifications
Brand Name :
HARVEST
Model Number :
Harvest
Certification :
CE/DOT/ADR
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 units/month
Delivery Time :
15 days
Packaging Details :
nude package
Overall Dimension :
11000mm*2500mm*3850mm
Max Payload: :
50ton
Landing Gear: :
Standard 28Ton
Axle: :
FUWA/HJ/BPW brand optional
Tire: :
12R 22.5 Double star/Triangle brand
Function: :
Transport Oil
Loading capacity: :
20-50CBM
Color: :
9.0-22.5, 8.5-20, 9.0-20
Description

3 Axle 45cbm Aluminum alloy oil tank trailer Oil Diesel Transport Semi Tank Trailer

The design of this series of models adheres to the high-end design concept and product style, and represents the excellent quality of domestic aluminum alloy tank trucks.
◆The leading domestic production equipment for aluminum alloy tank cars;
◆Using the tank body production process that meets the EU ADR standard, the tank body welds are all automatic welding; the welding equipment, welding materials, and gas are all world-class brands, and the tank body is all inspected by radiographic inspection;
◆The tank structure adopts a flexible tank structure, which is resistant to impact and distortion;
◆The head and anti-wave plate adopt water pressure expansion type, which has both strength and toughness;
◆The tank body is made of American Aluminum Magnesium-aluminum series materials, international brands, and European EN standards;
◆The parts of vehicle braking system and loading and unloading system are all selected domestic first-class brands;
◆All aluminum alloy accessories and fully assembled structure make the vehicle lighter and easier to maintain;
◆The whole vehicle cluster cable is sealed, waterproof and explosion-proof, LED lamps;welcome to contact us get good price.

Aluminum alloy oil tank trailer Product Description

OIL TANK SEMI TRAILER
Shape Monoblock cylinder
Tare weight 9000KG
Color Customized
Volume 40m³ customized
Tank body Q235/5mm steel
End plate Q235A/6mm steel sheet
Axle 2/3/4 Axle FUWA/BPW/HJ brand optional 13T-16T
Tire 12R22.5 Double star/Triangle brand optional
Wheel rim 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional
Suspension Mechanical suspension or air suspension
Leaf spring 10 pcs*90*13mm
Manhole cover 500mm manhole cover 2 sets with 2 breather value
Discharge valve 2-4 sets of $ 100mm discharge values
Discharge pipe 4’’ rubber hose, 2pcs, 6m long
Kingpin JOST 2”/3.5” bolt-in king pin
Landing gear JOST two-speed, manual operating, heavy duty landing gear
Bottom value 1-2 sets of bottom value
Outside sheet 1.2mm steel sheet
Compartment Optional upon choice
Braking system WABCO RE6 relay value, T30/30 spring brake chamber; 40L air tanks
Painting Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box,
Main beams

Opting for high tensile steel Q345B welded by automatic submerged-arc processes

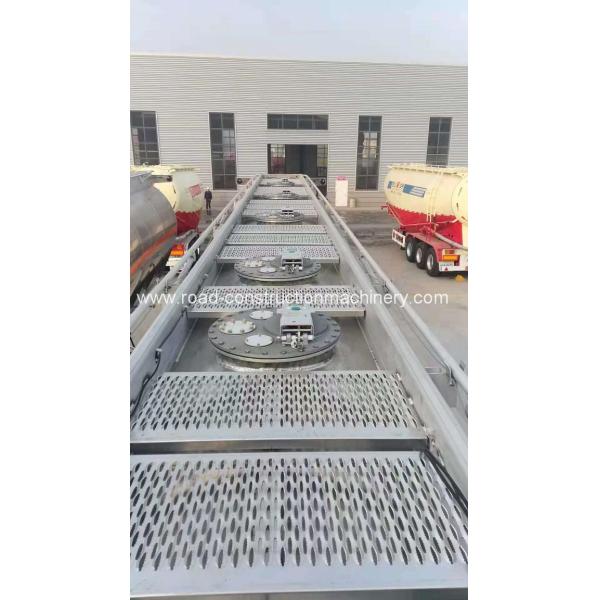

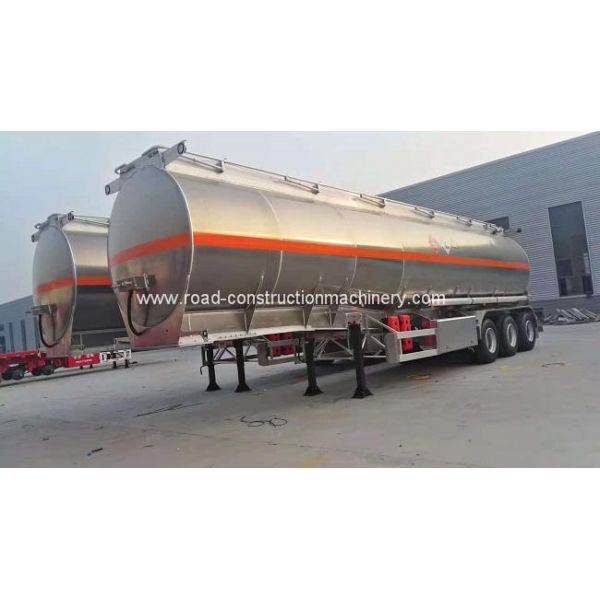

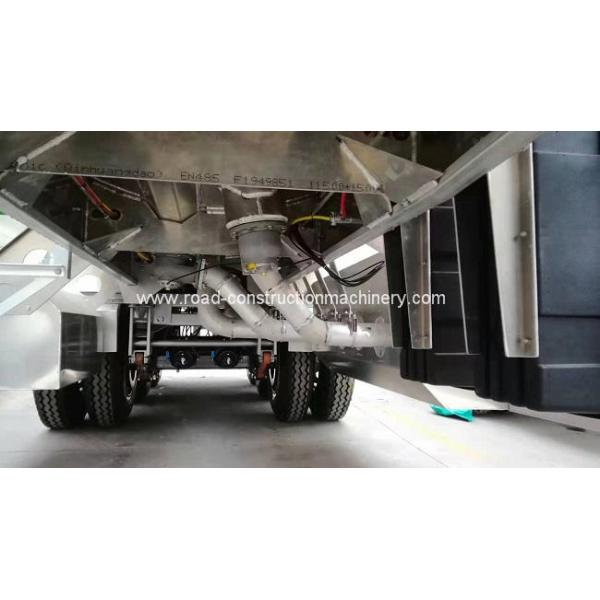

Picture of Aluminum Alloy Oil Tank Trailer

Steel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible StructureSteel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible StructureSteel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible StructureSteel Q345B 3 Axle 45cbm Oil Tank Trailer ADR Flexible Structure
