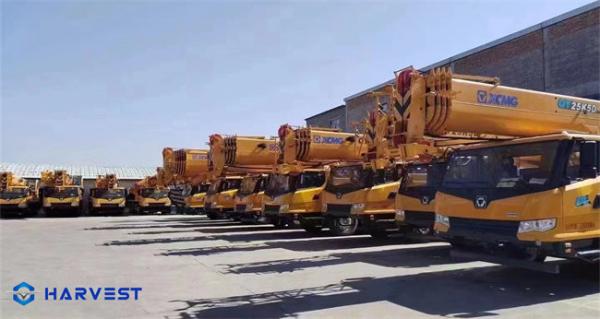

25 Ton Mobile Truck Crane QY25K5D 5-Section 41m U Type Boom
25 Ton Mobile Truck Crane QY25K5D 5-Section 41m U Type Boom
Specifications
Model Number :
QY25K5D
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 units per month
Delivery Time :
10-15 days
Packaging Details :
nude
Lifting capacity :
25 ton
Main boom :
41 meters
Jib :
8.3 meters
Max. lifting height :
40.1 meters
Weight in travel :
32500kg
Drive type :
6x4
Engine :
Shangchai Euro V
Gearbox :
FAST 8JS125T, 8F & 1 R
Description

25 Ton Mobile Truck Crane QY25K5D 5-Section 41m U Type Boom
Description: Truck Crane
Model: QY25K5D
Specifications
Min. Working Radius: 3m
Max. Working Radius: 32m
Max. Load Moment of Base Boom: 1,005kN.m
Max. Load Moment of the Fully-Extended Boom: 672kN.m
Max. Load Moment of the Fully-Extended Boom and Jib: 465kN.m
Outrigger Span(Longitudinal x Lateral): 5.14m x 6.0m
Max. Lifting Height of Base Boom: 9.8m
Max. Lifting Height of the Fully-Extended Boom: 40.1m
Max. Lifting Height of the Fully-Extended Boom and Jib: 48.5m
Base Boom Length: 10.5m
Length of the Fully-Extended Boom: 41m
Max. Length of the Fully-Extended Boom and Jib: 49.3m
Jib Offset Angle: 0o, 15o, 30o
Boom Raising Time: ≤38s
Boom Fully-Extending Time: ≤93s
Max. Slewing Speed: ≥2.5r/min.
Outrigger Beam Retracting Time: ≤30s
Outrigger Beam Extending Time: ≤35s
Outrigger Jack Retracting Time: ≤35s
Outrigger Jack Extending Time: ≤40s
Hoisting Speed(Single Line, 4th Layer, no Load): Main Winch≥125m/min.; Auxiliary Winch≥125m/min.
Wheel Base: 4,425mm+1,350mm
Tread (Front/Rear): 2,059mm/1,834mm
Front Overhang/Rear Overhang: 2,375mm/2,145mm
Front Extension/Rear Extension:1,895mm/590mm
Min. Turning Diameter: ≤22m
Boom Head Turning Diameter: ≤26.8m
Max. Travel Speed: ≥80km/h
Min. Travel Speed: 2.5-3km/h
Min. Ground Clearance: 250mm
Braking Distance at 30km/h: ≤10 m
Max. Grade-ability: 40%
Rated Power / Speed: 221kW/2,200rpm
Max. Torque: 1,250N.m/1,400rpm
Displacement: 8.82L
Fuel Consumption per 100 km: 28L
Fuel Tank Capacity: 320L
Technical Specification of QY25K5D Telescopic Truck Crane

Category Item Unit Parameter
Dimensions Dimensions(LXWXH): mm 12780x2500x3400
Wheel base mm 4425+1350
Track (Front/ Rear ) mm 2059/1834
Front/ Rear overhang mm 2375/2145
Front/ Rear extension mm 1895/590
Weight Total weight in travel kg 32500
Axle load 1st axle kg 7300
2nd axle kg 12600
3rd axle kg 12600
Power Engine brand & model Shangchai SC9DF300.1Q5
Engine rated power/rpm kW/(r/min) 221/2200
Max. net power/rpm kW/(r/min) 219/2200
Engine rated torque/rpm N.m/(r/min) 1250/1400
Travel Max. travel speed km/h >80
Min. travel speed km/h 2.5-3
Min. turning diameter m <22
Min. turning diameter at boom tip m <26.8
Min. ground clearance mm 250
Approach angle o 10
Departure angle o 13
Braking distance (at 30 km/h ) m <10
Max. grade ability % >40
Fuel consumption per 100 km L 30
Noise Exterior noise level dB(A) <84
Noise level at seated position dB(A) <90
