12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust
12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust
12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust
12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust
12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust
12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust
Specifications
Brand Name :
SINOTRUCK
Model Number :
12000L
Certification :
ISO
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit/Units per Month
Delivery Time :
30-35 work days
Packaging Details :
In nude
Transmission Type :
Manual
Horsepower :
210hp
Dimension (L x W x H) :
8030*2496*3300
Product name: :
Sewage suction truck
Gross Vehicle Weight :
18000
Condition :
New
Description

12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust

SINOTRUK HOWO 4x2 12000 Liters Special Purpose Truck Sewage Water Suction Truck

Product Description

Subject SINOTRUK HOWO 4x2 12000Liters Sewage Water Suction Truck
Overall Dimension 8030*2496*3300mm
Tank Volume 12000 Liters
Chassis Model ZZ1187K501GE1
Wheelbase 4500,4700,5000mm
Gross Weight 18000kgs
Curb Weight 9230kgs

Engine
Engine Brand SINOTRUK HOWO
Model MC05.18-50
Type In-line, 6-cylinder, water cooling, 4-stroke,supercharging intermediate cooler, high pressure common rail
Displacement Volume(ml) 4580
Net Power(kw) Min 151 KW at rated RPM
Fuel Type Diesel
Emission Standard From Eour3 to Eour5
Clutch System Model Single plate, dry friction
Steering System Power Steering Left hand driving, RHD is available
Transmission System Manually operated 7-forwards and 1- reverse
Brake System Service Brake Hydraulic disk brakes
Park Brake Air Brake & Hand Brake,

Suspension System

(Front & Rear)

 Semi-elliptical leaf spring with telessopic shock absorber (both front & rear)
Tyre Tyre Quantity 6 pcs
Tyre Specification 11.00R20,10.00R20
Cabin The cabine of 3 persons (including driver) , ABS, air conditioning,electric glass, adjustable headlights,USB,etc

The body structure

Tank Capacity 12000 Liters
Material 6mm high quality carbon steel Q235/Q345
Vacuum Pump China famous vacuum pump
Rating rotate speed 1400R/M
Min rotate speed > 800R/M
Max. Suction head lift >6 meters
Time for full suction ≤ 5min
Basic Equipments

a. The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO);

b. The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.
Coating

a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.

b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.

c. Tank color is customized if necessary
Optional Equipments Italy or Spain vacuum pumps
Stainless steel
Anti-rust coating inside tank

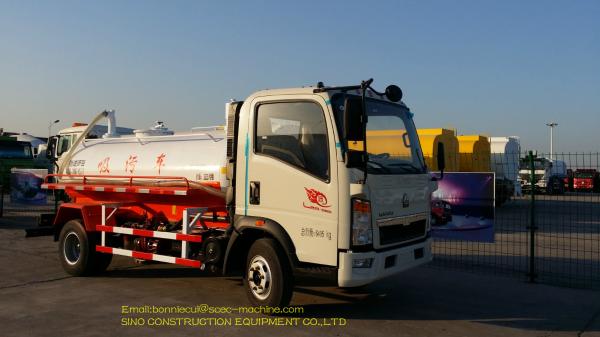

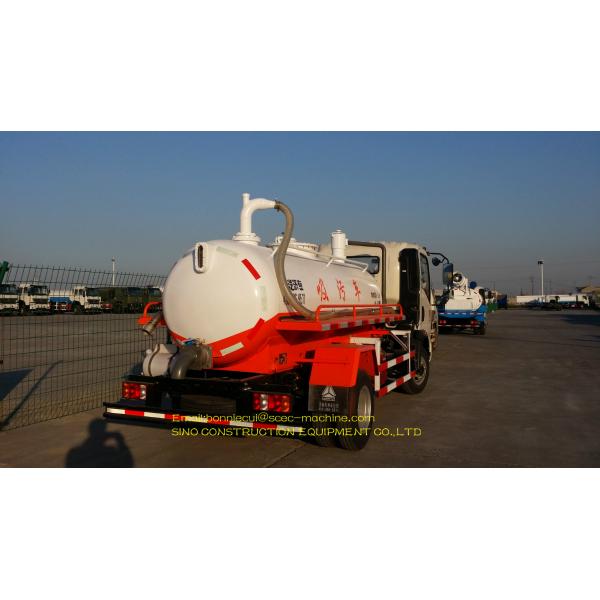

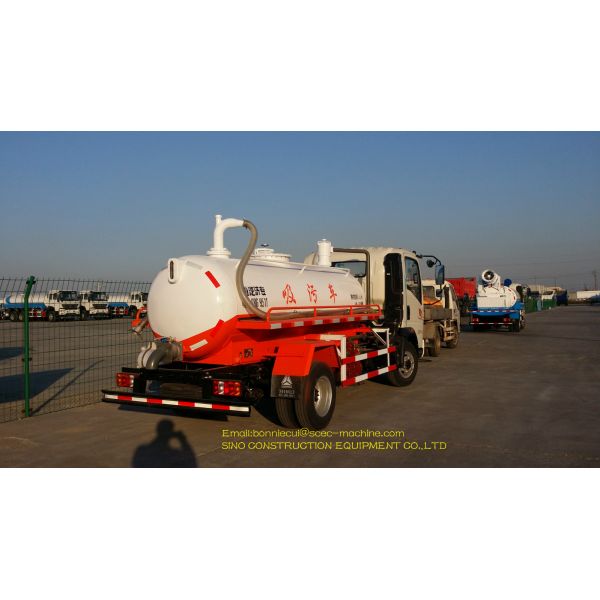

Photo show

12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust12000 Liters Special Purpose Truck Sewage Water Suction Truck Anti Rust

Spare Parts Supply:

As for the spare parts of SINOTRUK HOWO 4x2 12000Liters Sewage Water Suction Truck , please be noted that we have our own spare parts warehouse. We can satisfy your demand within 2~7days. Also we can provide spare parts for many brands, such as SINOTRUCK, BEIBEN, FAW, FOTON, IVECO ,SHACMAN, DONGFENG, JAC and so on.

Product Parameters

Our customer all over the world:

  • African countries:

Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.

  • European and Asian countries:

Russia, Kazakhstan, Kyrgyzstan, Bangladesh, Azerbaijan, Vietnam, Laos, Cambodia, the Philippines, Malaysia and so on.

  • South American countries:

Brazil, Bolivia, Uruguay, Peru, Ecuador , Trinidad and Tobago , Chile, Barbados , Argentina, Dominica, Cuba, and so on.

Photos of LW160KV XCMG 0.75m3 1.6 Ton Shovel Wheel Loader Wheel Loader

FAQ


Q: Can I buy a sample of your product for testing ?

A . Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment ?

A: L/C, T/T, paypal or other ways. 30% paid before order, 70% balanced before delivery.


Q: How do you gurantee the quality of the product ?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why choose us ?

A: We are self-produced and self-selling manufacturers, and we have more than 15years of production experience, our products have been sold all over the world.

Q: What about your after-sale service ?
A: We offer 1 year after-sale service. Supply the spare parts at factory price all the time.

Q : Can we visit your factory before purchasing ?
A: We welcome you to visit our factory, and will show you our production line .

OUR MAIN PRODUCT:

1. Dump Truck/Tipper Truck

2. Fire Fighting Truck
3. Truck with Crane

4. Semi-Trailer and Tractor Truck
5. Water Tank Truck,
6. Fuel Tank Truck,
7. Concrete mixer truck ,
8. Fecal suction truck, sewage suction truck,
9. Light Cargo Truck,Mini Truck ,
10. High-altitude operation truck,
11. Garbage Truck, Compactor Garbage Truck, Sealed Garbage Truck,
12. Bulk Cement Truck, Powder tank truck

13. Chemical liquid tank truck

14. Van truck, insulated truck, Refrigeration Truck

Packing and Shipping

We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.

Comply with export packaging requirements at any china port.

Please let us know the main use, brand, power and other requirements of the purchased products .We will recommend the related products to you.
