8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank
8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank
8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank
8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank
8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank
8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank
Specifications
Brand Name :
Sinotruk
Model Number :
8X4
Certification :
ISO CCC
Place of Origin :
China
MOQ :
One set
Price :
Negotiabe
Payment Terms :
L/C, T/T
Supply Ability :
300 Unit/Units per Month
Delivery Time :
30-35 work days
Packaging Details :
In nude
Engine Capacity :
> 8L
Drive Wheel :
8x4
Color :
customized
Condition :
New
Wheelbase :
1800+3800+1350
Loading capacity :
25T
Description

8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank

Sinotruk Special Purpose Truck 8x4 Manual Transmission Type and 30000L Tank Volume Water Sprinkler Truck

Product Description

Special Purpose Truck 8x4 Water Sprinkler Truckis using on road clearing, wash tree, grass, road, construction of factories and mines and High altitude building rinse. With water, dust, spray, barrier rinse, water, drainage and emergency fire and other functions.

Main Specification of Special Purpose Truck 8x4 Water Sprinkler Truck

Vehicle parameters
Vehicle Model EHY5310GSSZ Vehicle Brand HUAYI
Overall dimensions 11050×2500×3335mm Curb weight 12510kg
Tank dimensions 7630×2260×1450mm Tank volume 25000L

Chassis parameters
Chassis model ZZ1310N4267A Chassis brand SINOTRUK
Overall dimensions 9850X2496X3115mm Wheel base 1800+4200+1350mm
Front/rear wheel track 2022/2022/1830/1830mm Front/rear suspension 1500/1000mm
Approach/departure angle 19/47° Maximum speed 75km/h
Chassis Manufacturer China National Heavy Duty Truck Group Co.,Ltd
Cab Configuration HW76 cab, a row and a half deluxe cab(with sleeping berth),allowable 3 passengers,
Color White, other color is optional
Engine Model DW615.47
Emission Euro 2
Type 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine
Rated power 371hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1500N.m
Bore x stroke 126x130mm
Manufacturer China National Heavy Duty Truck Group Co.,Ltd
Tire Size 12.00R20 steel wire tire
Number 12+1 nos
Clutch φ430 diaphragm clutch
Front axle HF9
Rear axle HC16
Drive form 8X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions gearbox HW19710,10 speed forward 2 reverse.
Steering device Power assisted steering, steering machine(domestic ZF technology)
Steering wheel Left hand drive
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Water tank structure parameters
Tank dimensions 8250×2350×1500mm Tank volume 25000L
Tank material Carbon steel Tank thickness 6mm
Nozzle sprinkling width ≥14m Range of water cannon ≥28m
Suction height ≥7m Color and Logo Optional
Standard configuration Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.

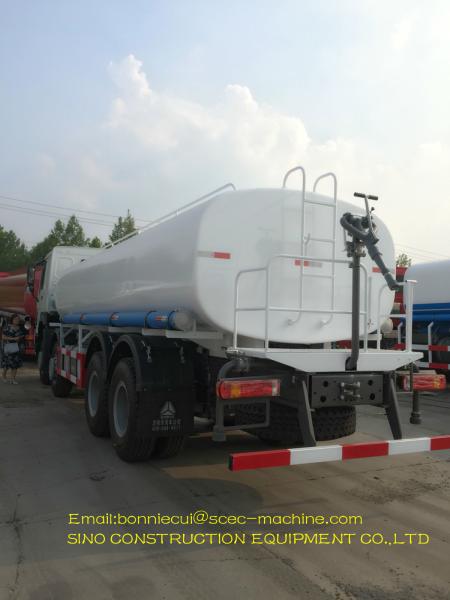

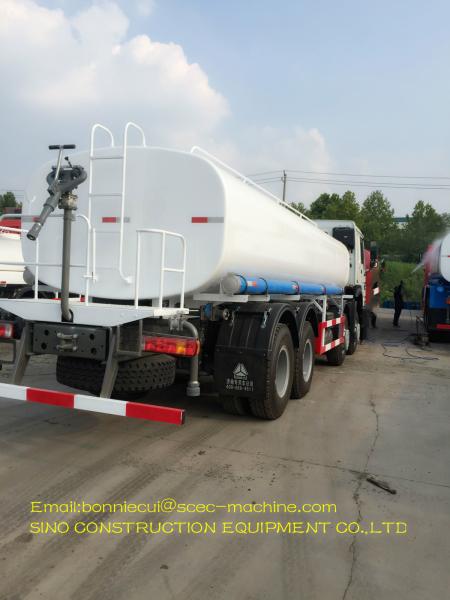

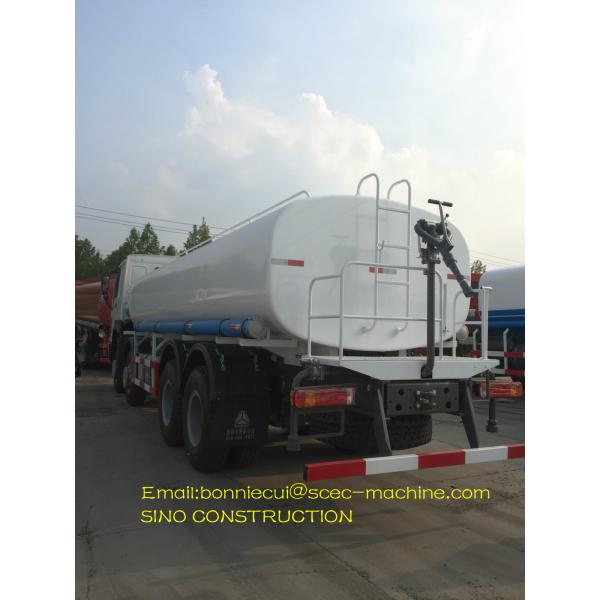

Photo show of Special Purpose Truck 8x4 Water Sprinkler Truck

8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank8x4 Special Purpose Truck Manual Transmission Type 25001 - 30000L Tank

Packaging & Shipping

Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck , we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.

FAQ

Q1. How long have you been in this business?

A: We are specialized in this field over 10 years.

Q2. How many brands you can supply of the trucks?

A: We are cooperating with the famous brand in China ,such as Dongfeng , China FAW,foton , sinoruck , shacman , Iveco , hino ,camc etc.

Q3. How can you ensure the product quality?

A: a.strictly materials testing before production.

b. mature welding and sealing technology

c. high pressure water testing, air testing,detecting testing etc after tank formed.

Q4 .Cooperation items:

A: Order confirm: After confirming all the requirements ,PI should be signed with our company official seal.

Spare parts could be supplied by cost price.
