Product Description of Crawler Hydraulic Machine Water Well Drilling
JK-DR series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency. There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.
This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
Model & Name | JK-DR200X | Travelling speed | 2.5km/h |
Weight | 5000 kg | Gradeability | 30% |
Dimensions(mm) | 3950*1700*2300mm | Rated pressure | 1.7-3.0 MPa |
Power Oil | Diesel | Air consumption | 17-30 m³/min |
Engine Model | QUANCHAI | Drill rod diameter | Φ76,Φ89mm |
Rated Power | 65 kW | Drill rod length | 1.5m, 2.0m, 3.0m |
Travelling System | Rubber Crawler | Elevating capacity | 13Ton |
Drilling depth | 200m | Swing speed | 45-65rpm |
Bore diameter | 140-203mm | Swing torque | 3500-4700 N.m |
Drive Head Stroke | 3.4m |

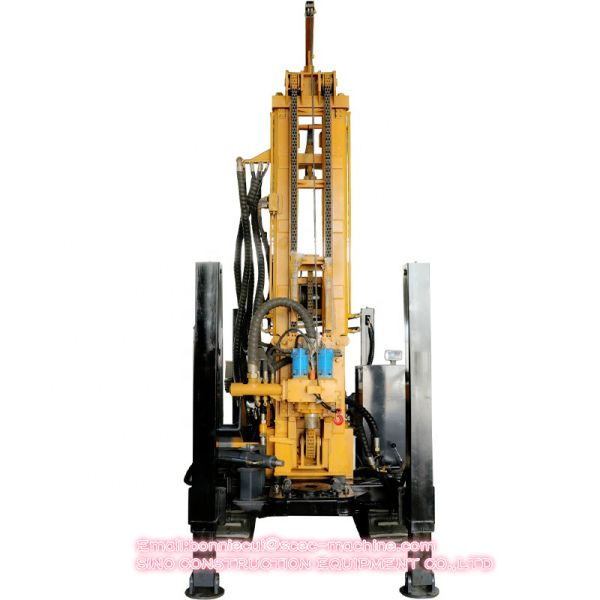

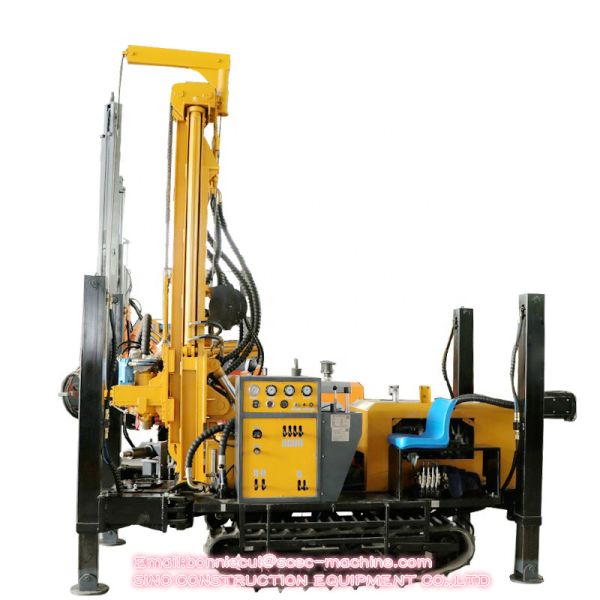

The photo of Crawler Hydraulic Machine Water Well Drilling
FAQ
A: We are factory.
A: Generally it is 10-15 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
A: T/T, L/C, Western Union.
A: Yes, More than 15 years. We have exported more than 50 countries, such as South America, Southeast Asia, Eastern Europe, Africa, West Europe etc.
A: We will sent the new spare parts to our customer as soon as find out that is the problem of our forklift.
A: It depends on the use environment, usually our forklift truck can keep a good condition for more 6 years.
