SHANTUI SG18D-3 125kw 180 HP Construction Motor Grader
SHANTUI SG18D-3 125kw 180 HP Construction Motor Grader
SHANTUI SG18D-3 125kw 180 HP Construction Motor Grader
SHANTUI SG18D-3 125kw 180 HP Construction Motor Grader
SHANTUI SG18D-3 125kw 180 HP Construction Motor Grader
SHANTUI SG18D-3 125kw 180 HP Construction Motor Grader
Specifications
Brand Name :
SHANTUI
Model Number :
SG18D-3
Certification :
ISO CE
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 set/sets per month
Delivery Time :
25-30 work days
Packaging Details :
In nude
Working diameter :
3965mm
Rated power :
125kw/170HP
Max. gradeability :
20%
Blade width :
3965mm
UNIQUE SELLING POINT :
Fully hydraulic system
Dimension(L*W*H) :
8900*2625*3470mm
Description

Construction Motor Grader SHANTUI SG18D-3 Auto Tractor Grader 180 HP

Product Description of Construction Motor Grader SHANTUI SG18D-3

SG18D-3 motor grader is a self-propelled motor grader developed on the basis of SG18-3 motor grader, featuring high configuration, high performance, and adaptability to high temperature desert areas.

Technical Features

Featuring reliable performances and high efficiency and energy-saving, the engine and Shangchai engine are at your choice.

The 6-speed electronically controlled shift hydraulic transmission with technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.

The box-type structure welded from integral plates features high strength.

The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.

Featuring simple operations and high impact resistance against external forces, it’s applicable for the working conditions with high operating volume and severe operating environment.

The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.

The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.

The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.

The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.

The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.

The maintenance-free high performance battery is equipped.

The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.

The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.

The automatic leveling system can be additionally installed.

The special drive tires and the conventional tires are at your choice for the motor grader.

The specification of Construction Motor Grader SHANTUI SG18D-3

Engine model D6114
Rated power/speed 125kW/2300rpm
Dimension(LxWxH) 8900×2625×3470mm
Operating weight(Standard) 15000kg
Performance specification
Travelling speed ,forward 5,8,11,19,23,38 km/h
Travelling speed ,reverse 5,11,23 km/h
Tractive force(f=0.75) 77KN
Max. gradeability 20%
Tire inflation pressure 260 kPa
Working hydraulic pressure 16 MPa
Transmission pressure 1.3~1.8MPa
Max. steering angle of front wheels ±50°
Max. lean angle of front wheels ±17°
Max. oscillation angle of front axle ±15°
Max. oscillation angle of balance box 15
Frame articulation angle ±27°
Min. turning radius using articulation 7.3m
Biade
Maximum lift above ground 450mm
Maximum depth of cutting 500mm
Maximum blade position angle 90°
Blade cutting angle 28°—70°
Circle reversing rotation 360°
Moldboard width X height 3965×610mm

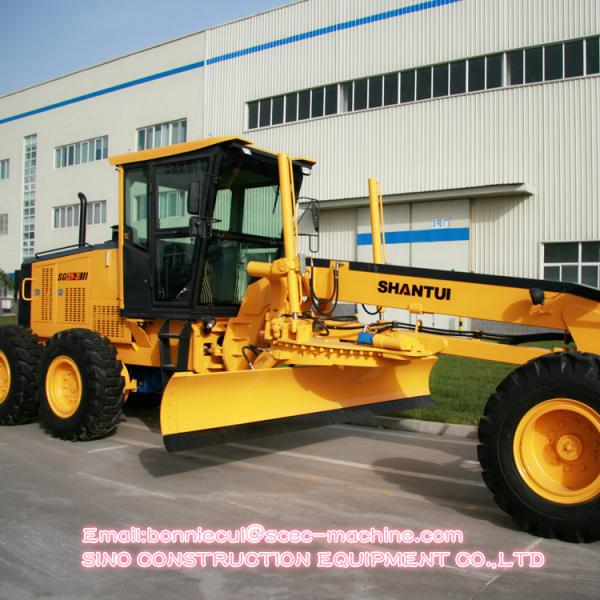

The photo of Construction Motor Grader SHANTUI SG18D-3

SHANTUI SG18D-3 125kw 180 HP Construction Motor GraderSHANTUI SG18D-3 125kw 180 HP Construction Motor Grader
