Specifications
Brand Name :
SANY
Model Number :
SY265C
Certification :
ISO CE
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 set/sets per month
Delivery Time :
30-35 work days
Packaging Details :
In nude
Moving Type :
Crawler Excavator
Operating Weight :
21900kg
Bucket capacity :
1.0
Rated Speed :
2.0Km/h
Type :
Crawler excavator
Color: oNE :
Customer's Required
Description

Hydraulic Crawler Excavator Earth Moving Machinery 26 Ton Crawler Digging Excavator SY265C

Product Description of Hydraulic Crawler Excavator Earth Moving Machinery 26 Ton Crawler

SY265C 25.5 ton excavator are designed with reinforced structure, high efficiency, high fuel efficiency and low environmental impact and maintenance costs, suitable for medium-sized earthwork.

High Output, Best Choice for Mining Excavator

Based on the SY265H model, the work equipment, undercarriage and frame have been reinforced to meet the rigorous requirements for mining applications.

Excellent Performance

With the AOCT (Auto Optimization Control Technology), the main pump can perfectly match the engine output power. This improves the working efficiency by 5%.

The engine of SY265 25.5 ton excavator meets Stage IV/Tier 4F emission standards further reducing fuel consumption.

Superior Reliability

After 3000 hours of mining operations, the reliability is considered leading level.

Ultra Low Maintenance Costs

Filter replacement and maintenance at your fingertips. The easy access reduces maintenance costs.

Specification of Hydraulic Crawler Excavator Earth Moving Machinery 26 Ton Crawler

Engine Engine model QSB6.7
Rated power 142/2000 kW/rpm
Max.torque 809/1500 N·m/rpm
Displacement 6.7 L
Emission standard Tier 4 Final / EU Stage IV
Operation Range Operating weight 25500 kg
Max. digging height 9745 mm
Max. dumping height 6715 mm
Max. digging depth 6705 mm
Max. vertical digging depth 5675 mm
Max. digging reach 10225 mm
Min. swing radius 3800 mm
Height at min.swing radius 3915 mm
Dimensions Transport length 10290 mm
Transport width 3190 mm
Transport height 3255 mm
Upper width 3045 mm
Tail swing radius 3105 mm
Min. ground clearance 470 mm
Undercarriage/Working Device Std. track shoe width 600 mm
Bucket capacity 1.3 m³
Track shoes(per side) 49
Upper rollers 9
Lower rollers 2
Track gauge 2590 mm
Track length 4245 mm
Boom length 5900 mm
Arm length 2900 mm
Performance Travel speed 5.8/3.7 km/h
Swing speed 10.6 rpm
Gradeability 35°
Ground pressure 39.3 kPa
Tractive force 227 kN
Bucket digging force 170 kN
Arm digging force 120 kN
Service Refill Capacities Fuel tank 475 L
Hyd tank 277 L
Engine oil 24.7 L
Engine coolant 34.7 L
Hydraulic System Boom cylinder bore x stroke 135×1305 mm
Arm cylinder bore x stroke 140×1660 mm
Bucket cylinder bore x stroke 130×1156 mm

Our advantage

Specifications

1) Higher efficiency

2) Lower fuel consumption

3) Operation comfort,

4) With wide applications in various narrow environments such as forest, farm & indoors.

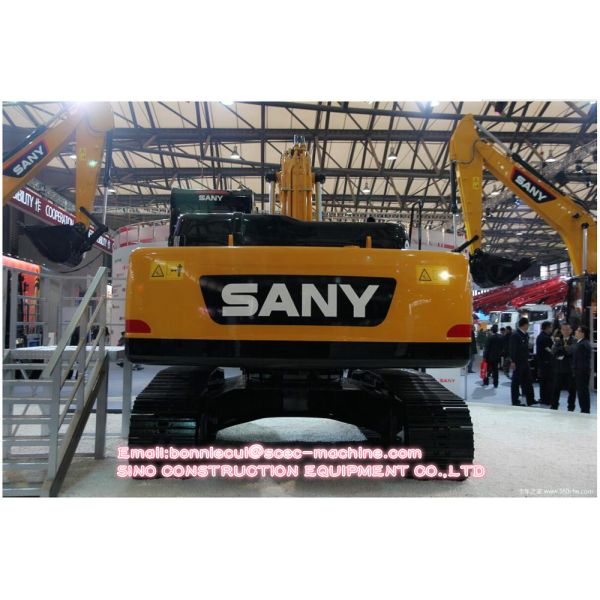

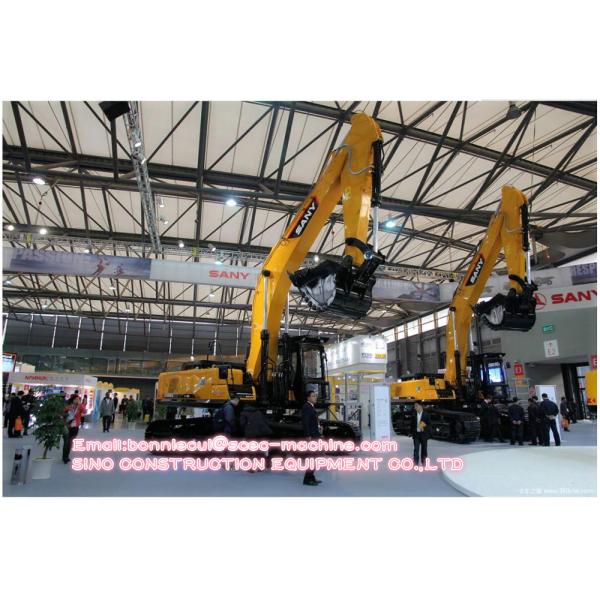

Photo of of Hydraulic Crawler Excavator Earth Moving Machinery 26 Ton Crawler

6.7 L Displacement 26 Ton SY265C Earth Moving Machinery6.7 L Displacement 26 Ton SY265C Earth Moving Machinery

Packaging & Shipping

Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.

Delivery: Within7 days upon receipt of down payment. Special models about 30days.
