Specifications
Brand Name :
HOWO
Model Number :
ZZ5707V3840CJ
Certification :
ISO
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 set/sets per month
Delivery Time :
25-30 work days
Packaging Details :
In nude
Transmission Type :
Manual
Fuel Type :
Diesel
Gross Vehicle Weight :
70000
Driving type :
Driving type: 6*4
Rear axle :
AC26
Loading capacity :
60tons
Description

Heavy Duty Dump truck 420hp HOWO 6x4 70ton Mining Dump Truck

Specification for Heavy Duty Dump truck 420hp HOWO 6x4 70ton Mining Dump Truck

SPECIFICATION
Dimension(Lx W xH)(unloaded)(mm) 9000×3300×4100
Cargo body size (LxWxH) (mm)

5800×3100×1800mm, with Peripheral exhaust heating

Front Lifting Side 10 mm.bottom 12 mm

Volume 32 CBM
Approaching angle/Departure angle(°) 32/40
Overhang(front/rear) (mm) 1500/1800
Wheel base (mm) 4000+1500
Max speed(km/h) 50
Curb weight(kg)Empty Weight 25300
Gross Weight 70Tons
Pay Load Road condition good 60-70 tons and bad road condition 50-60 tons
Min. ground Clearance(mm) 340
Max. gradeability(%) 42
Min. turning Radius(e) 22
Engine(Steyr technology, made in China) Model WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
Fuel type Diesel
Power, max(kw/rpm) 371HP
Emission EUROII
Fuel tanker capacity(L) 500L aluminum oil tank
Transmission Model HW21712, 12 speeds forward and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Steering system Model ZF8118
Front axle HF12,Steering with double T-cross section beam
Rear axle AC26, (cast steel 2×26ton hub-reduction axle)
Tire 14.00-25
Cab HW7D cab, (with air-condition), Unilateral cab
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V

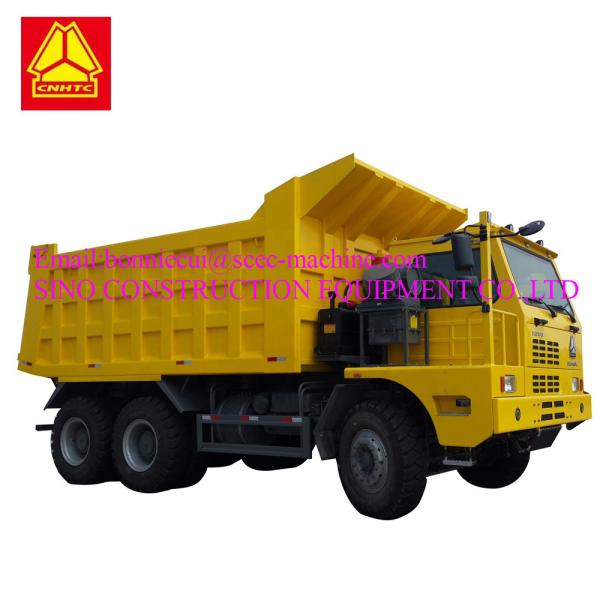

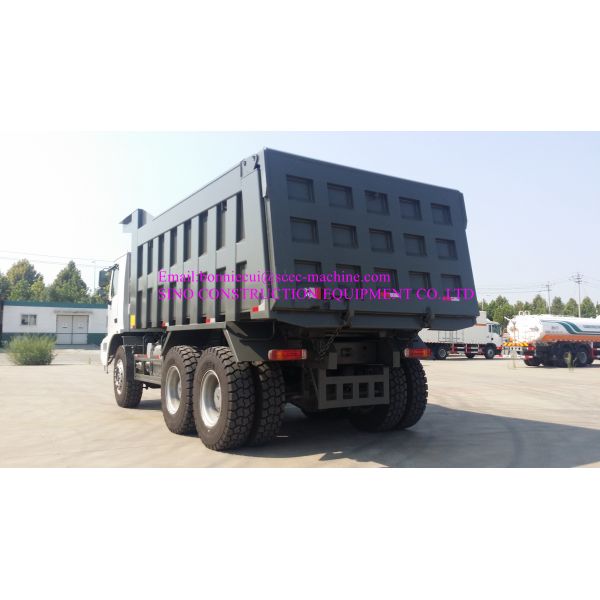

Product display

Manual Heavy Duty 420hp 70 Ton Mining Dump TruckManual Heavy Duty 420hp 70 Ton Mining Dump Truck

Packing and Shipping of Heavy Duty Dump truck 420hp HOWO 6x4 70ton Mining Dump Truck

Manual Heavy Duty 420hp 70 Ton Mining Dump TruckManual Heavy Duty 420hp 70 Ton Mining Dump TruckManual Heavy Duty 420hp 70 Ton Mining Dump TruckManual Heavy Duty 420hp 70 Ton Mining Dump Truck

Our company profiles

Our company was established in 2003 and is located in Jingshi Road, Huaiyin District, Jinan City. The transportation is convenient.

Our business scope includes all kinds of heavy road construction machinery, building machinery, heavy logistics vehicles and special vehicles. Including road rollers, graders, wheel loaders, excavators, etc. And tractor trucks, dump trucks, cargo trucks, semi-trailers, cement mixers and large, medium and small brick machine production lines, etc. Since its establishment 17 years ago, we have won wide acclaim from customers at home and abroad for our high-quality service concept, honest business attitude, and high-quality mechanical products.

At present, we focus on large-scale earthwork, construction engineering projects companies and large-scale logistics centers, with providing customers with high-quality machinery and vehicles.

Jinan is the cradle of Chinese heavy vehicles and machinery. Relying on Jinan's thick heavy equipment technology research and development history and convenient transportation, we maintain good long-term strategic cooperation with Sinotruk and Jiangsu XCMG. Become the vanguard of China's heavy machinery export and overseas market development.

Our company's production line is located in Zhangqiu District, Jinan City, Shandong Province. The transportation is convenient.

At present, our company has more than 500 employees. Among them, there are more than 50 persons in technical R & D teams, most of them have graduate degree or above. Marketing department have more than 30 people. Has extensive sales and service experience. Provide customers with one-stop product consultation, purchase and after-sales service.

We have more than 10 years of overseas export experience. The volume of exports increases every year. Mainly exported to African countries like Ethiopia, Djibouti, Kenya, Tanzania, Sudan, Chad, Angola, Burkina Faso, Uganda, Cameroon, Zambia, Algeria, Mozambique, Botswana, etc .; South Asia, Southeast Asia, like Pakistan, Bangladesh, Myanmar, Thailand, Philippines, Laos, etc .; Latin America, like Colombia, Guyana, Peru, Chile, Uruguay, Bolivia, etc.

Professional technical team and rich experience, treat customers as friends sincerely, and provide strong support and services for customers is our common business philosophy. Customers are welcome to write or consult and cooperate.

Manual Heavy Duty 420hp 70 Ton Mining Dump TruckManual Heavy Duty 420hp 70 Ton Mining Dump TruckManual Heavy Duty 420hp 70 Ton Mining Dump TruckManual Heavy Duty 420hp 70 Ton Mining Dump Truck

FAQ

Q: Are you Dealer or Factory ?

A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.

Q: What is your advantages?

A: We are the subsidiary factory of Sinotruk and we adopt the strict quality control system during the production which makes the high quality truck.

B: We are directly factory we can meet all the requirements form customers and provide a better technical support to customers.

Q: I want to transport the truck by container, is it ok?

A: Yes, it is ok. But we need take apart the truck.You should reinstall in your country.

Q: How about your product quality?

A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

Q: I want to be your agent in my country , is that ok?

A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.

Q. How about your company's service, especially after-sale service?

A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.

Q: What is your payment terms?

A: You can choose to the 30% prepaid and 70% paid before delivery

Q: What is your leadtime?

A: Usually it is 30-50 days after deposit received.
