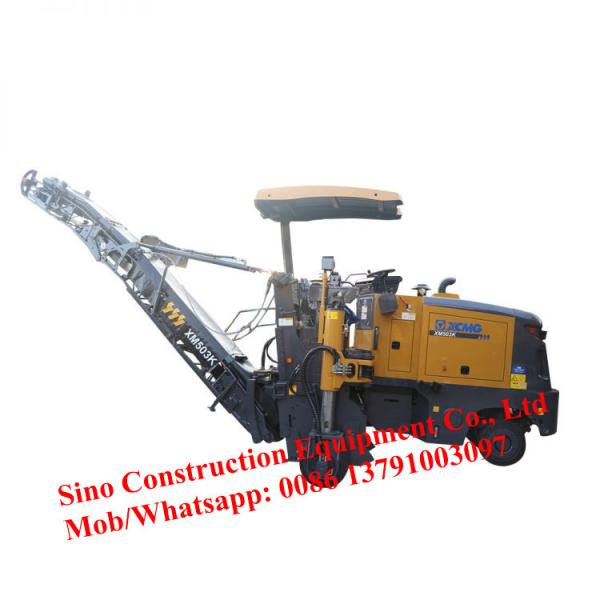

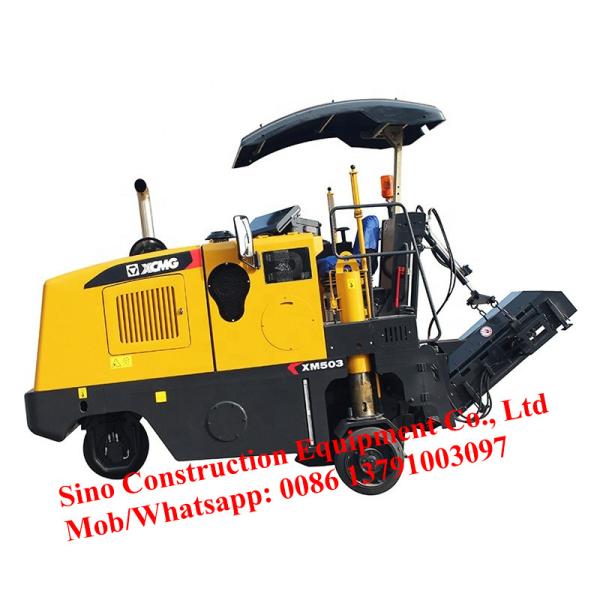

Asphalt Civil Road Mini Cold Milling Machine XM503K With Four-Wheel Long Conveyor Belt

XM503K road cold milling machine power system: adopts advanced and reliable SAIC Motor's new generation of four-valve 140 horsepower SC4H water-cooled engine with strong power and low fuel rate. Walking system: tire type, four-wheel all-wheel drive, hydraulic and mechanical drive mode, can be continuously variable, and has one driving gear and three working gears. The rear wheel is an independent suspended support wheel. The right rear wheel can swing back inward to facilitate welt milling. Steering system: Full hydraulic front axle steering, with steering angle indication function; small steering radius, can be milled along the manhole cover.

Technical specifications:

● Power system: It adopts advanced, mature and reliable SAIC Motor's new generation of four-valve 140 horsepower SC4H water-cooled engine with strong power and low fuel rate.

●Walking system: tire type, four-wheel all-wheel drive, hydraulic and mechanical drive mode, continuously variable speed, and has one driving gear and three working gears. The rear wheel is an independent suspended support wheel. The right rear wheel can swing back inward to facilitate welt milling.

● Steering system: full hydraulic front axle steering, with steering angle indication function; small steering radius, can be milled along the manhole cover.

● Milling system: adopts hydraulic and mechanical transmission method, which makes milling reliable and powerful; imported cutter heads ensure the service life of cutters; it has the function of slow rotation of the rotor for convenient tool change.

● Milling depth control: through the up and down adjustment of the left and right rear legs, wedge milling is allowed, and it has a two-speed depth control function; a depth indicator is installed on the rear legs to display the milling depth. The equipment can be equipped with an automatic leveling system.
