Specifications
Brand Name :
XCMG
Model Number :
3 T
Certification :
ISO CE
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiable
Delivery Time :
30-35 work days
Packaging Details :
In nude
Machine Weight :
10600kg
Engine Brand :
DEUTZ
Power(W) :
92kw
Max.breakout force :
130kN
Wheel base :
2600mm
Reach at maximum lift :
1010~1210mm
Description

3 ton Construction Wheel loader LW300FN With Spare Parts

1. It features high efficiency, energy-saving, and strong power.

2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.

3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.

4. The bucket is made of high strength material to realize high wear and impact resistance.

5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.

6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.

Performance Highlights: Outstanding capability, with traction at ≥9t and breakout force at ≥13t. High adaptability, with turning radius at 5,165mm (tire center).

Our 3 ton wheel loader LW300FN With Spare Parts

Variety attached tools meeting requirements of different working conditions:
Log clamp I/ Log clamp IV (offset tooth)/ Toad's mouth clamp/ Paired and Staggered interconvert/ Grasping grass machine/ Pallet fork/ Snowplow.

The specification of Construction Wheel loader LW300FN With Spare Parts

Description Unit Parameter value
Rated operating load kg 3000
Bucket capacity m³ 1.5~2.5
Machine weight kg 10600±200
Dump clearance at maximum lift mm 2770~3260
Reach at maximum lift mm 1010~1210
Wheel base mm 2600
Tread mm 1850
Height of hinge at maximum lift height mm 3830
Working height(fully lifted) mm 4870
Max.breakout force kN 130
Max.horse power kN 95
Hydraulic cycle time-raise s 5.5
Total hydraulic cycle time s 10
Min. turning radius over tyres mm 5165
Articulation angle ° 35±1
Gradeability ° 28
Tyre size 17.5-25-12PR
Overall machine dimension L×W×H mm 7050×2482×3118
Model WP6G125E22
Emission standards Emission 2
Rated Power/Speed kW/rpm 92/2200
Fuel Tank L 170
Hydraulic Tank L 170
Ⅰ-gear(F/R) km/h 8/10
Ⅱ-gear(F/R) km/h 13/30
Ⅲ-gear(F) km/h 24/-
Ⅳ-gear(F) km/h 40/-

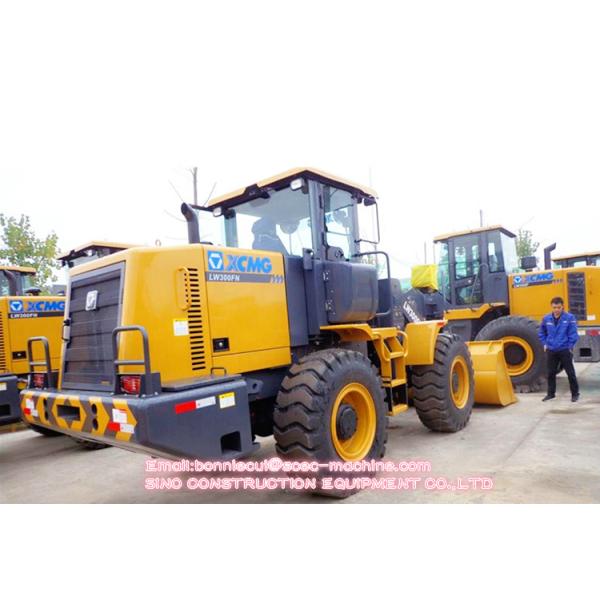

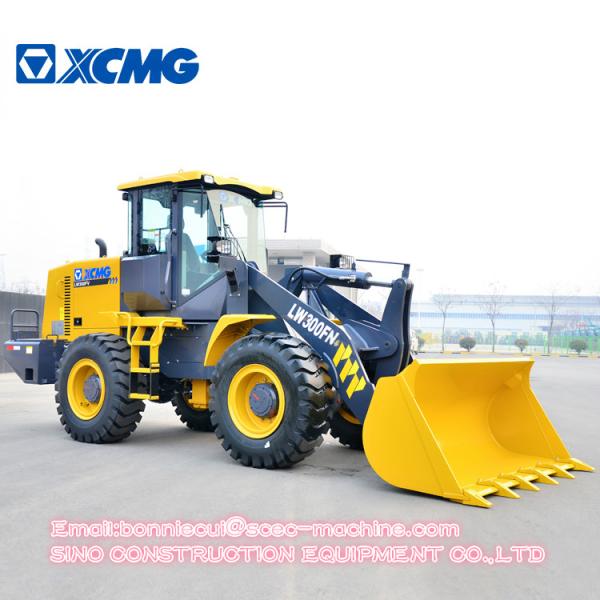

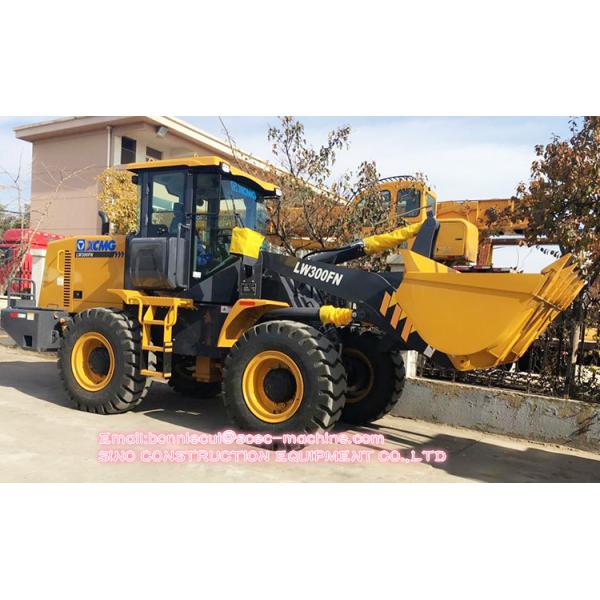

The photo for Construction Wheel loader LW300FN With Spare Parts

LW300FN 130kN 3 Ton Construction Wheel Loader With Spare Parts

LW300FN 130kN 3 Ton Construction Wheel Loader With Spare Parts

Product Show

LW300FN 130kN 3 Ton Construction Wheel Loader With Spare Parts

Advantage of Construction Wheel loader LW300FN With Spare Parts

1:Over 10 Years'Foreign Trade Experience

2:Rich experience in sea transportation

3:Professional and enthusiastic salesman
