XCMG HBT5008K Concrete pump is a construction equipment which conveys concrete by pressure through pipeline.
Technical Characteristics:
1.It is equipped with special pipeline.
2.It can continuously complete horizontal and vertical conveyance of concrete along pipeline.
3.It is an ideal kind of existing concrete conveyance equipment.
4.It combines the production of ready-mixed concrete with pumping construction and uses coagulation.
5.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.
6.It is used for conveying concrete in large concrete projects.
item | parameters | unit |
Shape size | 5623×1884×2606 | mm |
Whole machine quality | 5035 | kg |
Concrete conveying capacity | 50 | m3/h |
Maximum output pressure | 8 | Mpa |
Conveying distance (vertical / horizontal) | 100/400 | m |
Hopper volume / feeding height | 0.6/1320 | m3/mm |
Concrete slump | 80-230 | mm |
Concrete delivery bore diameter / stroke | 180/1400 | mm |
Active engine-diesel engine | ||
Model | WP4G110E220 | |
Rated power | 82 | kw |
Rated speed | 2200 | r/min |
Hydraulic system | ||
type | open | |
Hydraulic system pressure | 32 | Mpa |
Main oil pump | ||
Model type | A11VLO130 | |
Rated working flow | 224 | L/min |
Pump cylinder diameter / stroke | 90/1400 | mm |
Hydraulic tank volume | 250 | L |

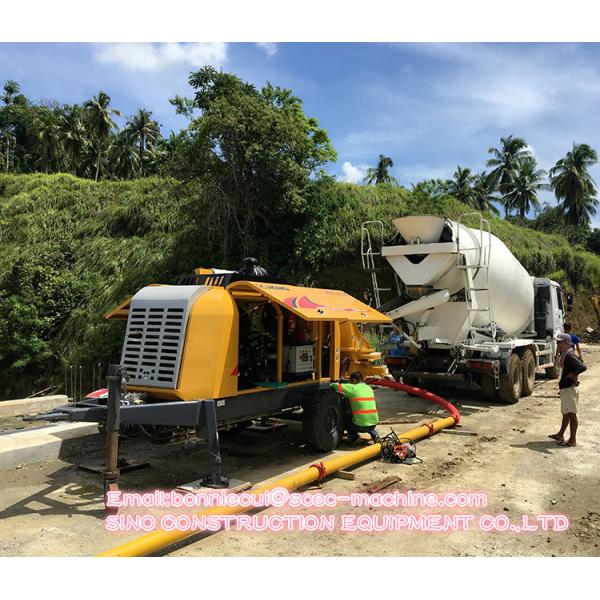

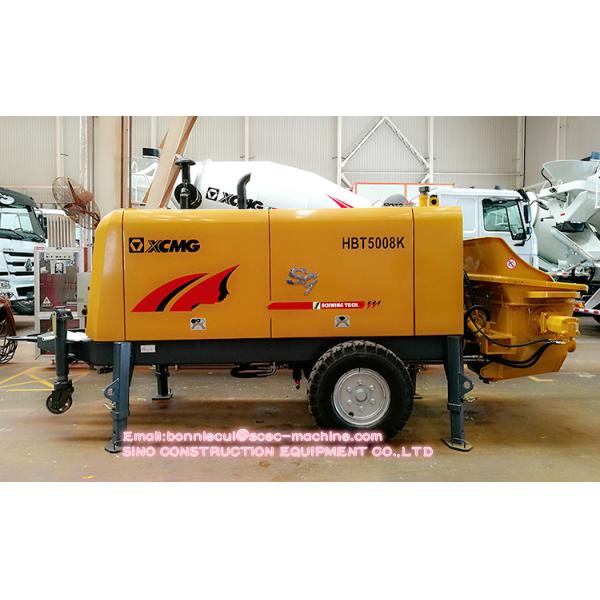

The photo for Concrete Handling Equipment HBT5008k 82 kw Trailer Mounted Concrete Pump
FAQ
1. What is your MOQ?
One Set is ok for your trail order
2. What is your price?
Please tell us the products model and quantity required, as well as your email, our sales will share you the best price.
3. What is the delivery time?
Most of the order will within 20days, sometimes depend on your quantity and our present production plan.
4. How about your Warranty and after sale service?
Normally is about 12 months after leaving factory, but that can be negotiated based on our cooperation.
5. Interested in your products, can you introduce them to me?
Please directly sent inquiry either leaving message or consulting online on website, and confirm us your correct email, so that our sales can show you more detailed information on products.
6. OEM or ODM is available?
Yes, we can produce with your logo.
