70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
Specifications
Brand Name :
XCMG
Model Number :
XE700D
Certification :
ISO
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit/Units per Year
Delivery Time :
30-35 work days
Packaging Details :
In nude
Bucket capacity :
2.8-3.5M3
Operating Weight :
68.8ton
Moving Type :
Crawler Excavator
Maximum Digging Depth :
6900m
Hydraulic tank capacity :
455L
Gradient capability :
≤30°
Description

70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D

XCMG 70 ton 4.6 CBM XE700D Large Mining Crawler Excavator With 4.6m3 Bucket Capacity

Product description of XE700D Large Mining Crawler Excavator With 4.6m3 Bucket Capacity

1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.

Specification of XE700D Large Mining Crawler Excavator With 4.6m3 Bucket Capacity

Description Unit Parameter value
Main performance Travel speed(H/L) km/h 4.2/3.0
Gradeability % 35
Rotary speed r/min 7
Ground pressure kpa 101.4
Bucket digging force kn 363
Arm digging force kn 300
Travel traction force kn 450
Hydraulic system Main pump - 2
Rated flow of main pump L/min 2*450
Pressure of prime valve mpa 31.4/34.3
Pressure of travel system mpa 34.3
Pressure of swing system mpa 28.5
Pressure of pilot syetem mpa 3.9
Oil Capacity Fuel tank capacity L 950
Hydraulic tank capacity L 500
Engine oil capacity L 48

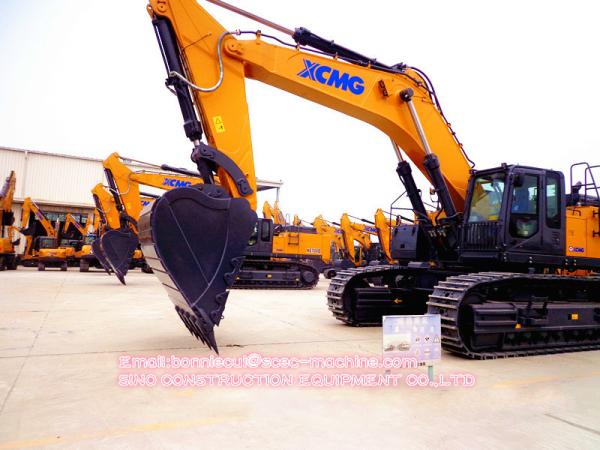

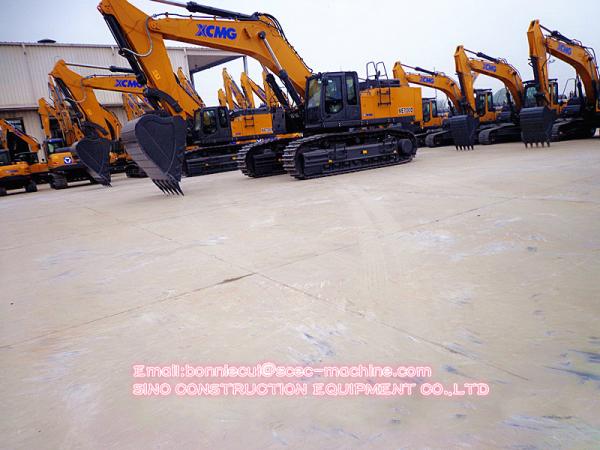

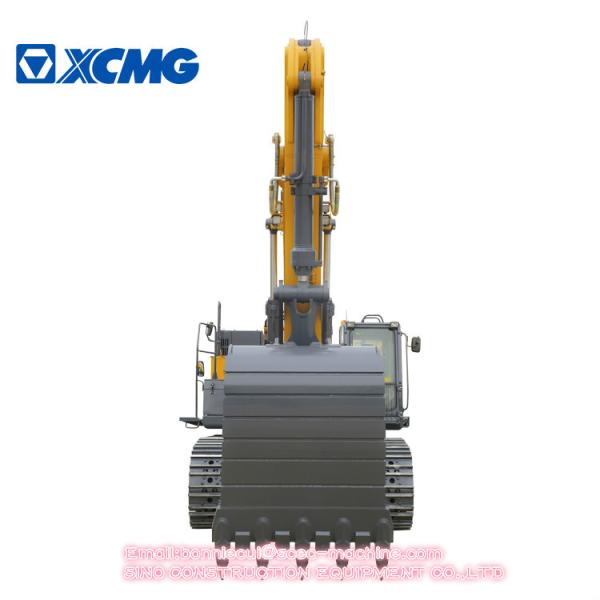

Product Show

70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D70 Ton 4.6 CBM Large Mining Crawler Excavator With 4.6m3 Bucket Capacity XE700D
