XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
Specifications
Brand Name :
XCMG
Model Number :
XE75DA
Certification :
ISO CCC
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100Unit/Units per Month
Delivery Time :
30-35 work days
Packaging Details :
In nude
Maximum torque/speed :
222.5/1600 N.m
Gradeability :
35%
Bucket digging force :
57 kN
Moving Type :
Crawler Excavator
Power(W) :
42.4kw
Ground pressure :
33.5 kPa
Description

XCMG Hydraulic Crawler Excavator XE75D 7.5 Ton Machines Crawler Mini Excavator

Product Description of Hydraulic Crawler Excavator XE75D 7.5 Ton

XE75DA hydraulic excavator can be used for digging, loading, leveling, ditching, crushing, drilling, clip cutting, lifting and other functions, which has played an increasingly important role in hydropower, transportation, municipal, garden, farmland reconstruction, oil pipeline and other small-scale construction and production field. Especially with the rapid development of urbanization, a large number of infrastructure projects, such as municipal maintenance, landscaping, environmental protection, water and electricity facilities and property management, has created a huge market space. Design use: suitable for suburban and narrow space; ambient temperature: -15ºC~40ºC; Working objects: soil below grade III and loose materials.

Product Parameters of Hydraulic Crawler Excavator XE75D 7.5 Ton

Model Unit XE75DA
Operating weight Kg 7460
Bucket capacity m³ 0.3
Engine Model engine / V2607-DI-TE3B
Injection / √
Four strokes / √
Water cooling / √
Turbo-charging / √
No. of cylinders / 4
Rated power/speed kw/rpm 42.4/2000
Maximum torque/speed N.m 222.5/1600
Displacement L 2.615
Main performance Travel speed km/h 5.4/2.9
Swing speed r/min 10
Gradeability ° 35
Ground pressure kPa 33.5
Bucket digging force kN 57
Arm digging force kN 38
Maximum tractive force kN 68.3
Hydraulic system Rated flow of main pump L/min 160
Travel system pressure MPa 27.4
Swing system pressure MPa 20.6
Pilot system pressure MPa 3.5
Oil Capacity Fuel tank capacity L 130
Hydraulic tank capacity L 76
Engine oil capacity L 10
Appearance size Overall length mm 6150
Overall width mm 2230
Overall height mm 2685
Width of platform mm 2070
Total width of chassis mm 2200
Track shoe width mm 450
Wheel base of crawler mm 2195
Track gauge mm 1750
Counterweight clearance mm 815
Min. ground clearance mm 380
Working range Max. digging height mm 7085
Max. dumping height mm 5160
Max. digging depth mm 4020
Max. vertical wall digging depth mm 2920
Max. digging radius mm 6260
Min. swing radius mm 1818
Standard Length of boom mm 3720
Length of arm mm 1622
Bucket capacity m³ 0.3

Advantage of Hydraulic Crawler Excavator XE75D 7.5 Ton

Main technical performance and characteristics:
1. Ecological and economical
Adopting new environmental friendly Yanmar engine, low speed torque, low fuel consumption, high operating efficiency , reliable and durable.
The advanced load-sensitive control system, low energy consumption.

2. Multiple applications
Short tail design and short slewing radius can achieve flexible operation in confined space.
Multiple additional configurations to adapt to a variety of operating requirements.

3. Comfortable operating experience
Fresh air conditioning system to ensure the appropriate temperature.
Toughened glass cockpit with good safety view.
Detailed design concept improves comfort.

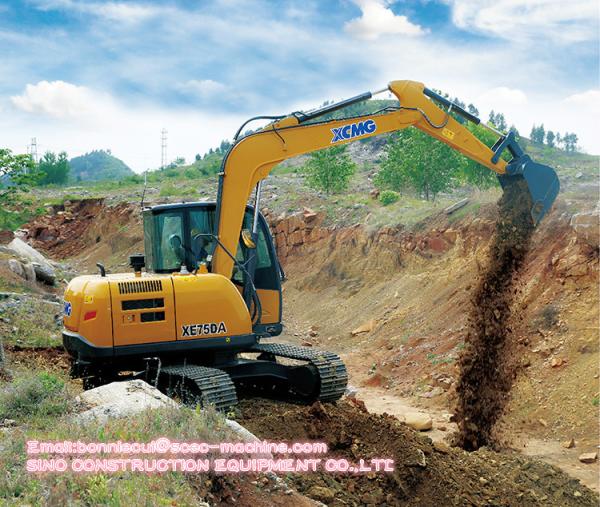

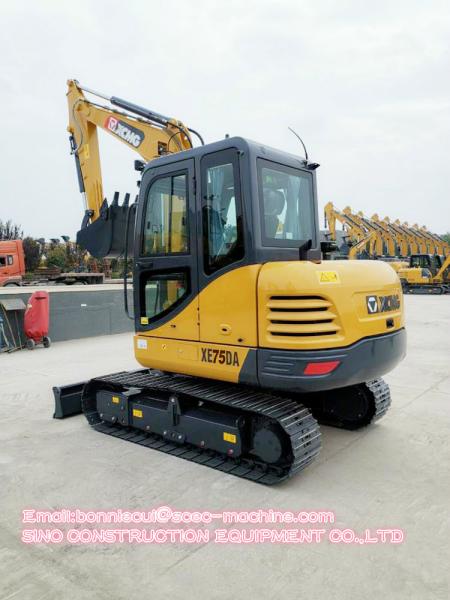

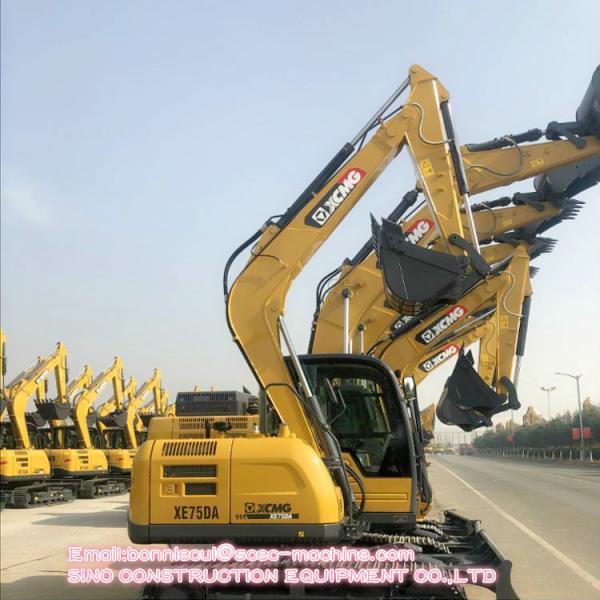

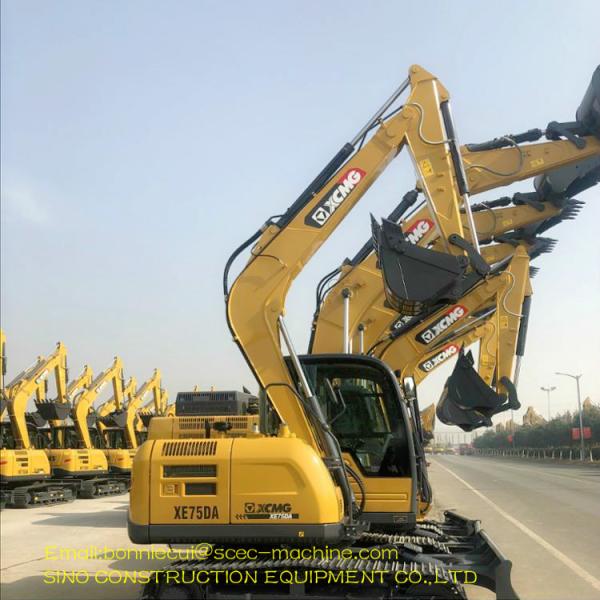

Product Show

XCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction MachineryXCMG Crawler Excavator Machine XE75D 7.5 Ton Road Construction Machinery
