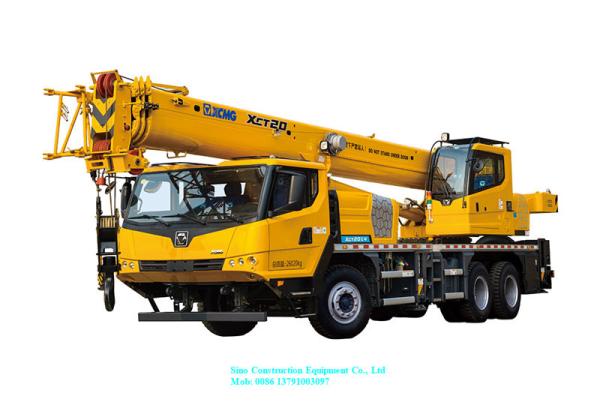

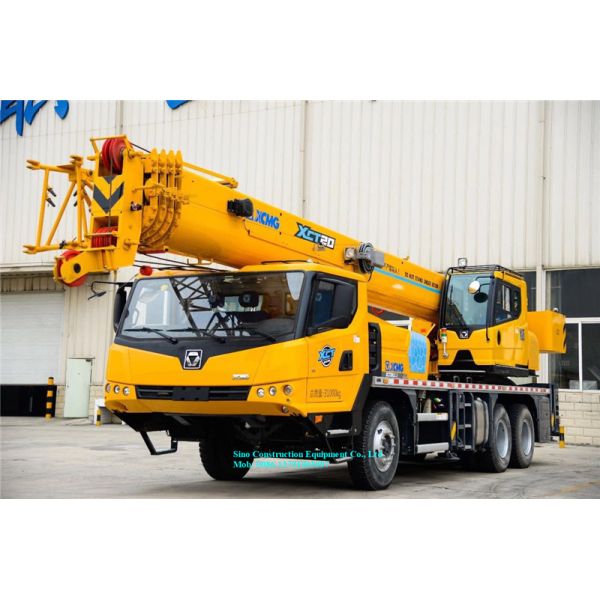

20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
Specifications
Brand Name :
XCMG
Model Number :
XCT20L4
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
Within 30-35 work days after receive order
Packaging Details :
Nude, polished with wax before shipping
Machine name :
XCMG 20t Telescopic Truck Crane XCT20L4
Operating weight :
26020kg
Axle load :
6450/19570kg
Maximum rated total lifting capacity :
20t
Minimum rated amplitude :
3m
Engine :
SC7H260Q4/WP7.270.E434 192/2300kw/(r/min)
Description

20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III

XCMG 20t Telescopic Truck Crane XCT20L4 Diesel Engine 192Kw Euro III

Features of XCMG 20t Telescopic Truck Crane XCT20L4 Diesel Engine 192Kw Euro III

• Four-section U-shaped new-type main boom, with a main boom length of 34m and a jib length of 8.3m, all lead the industry's highest level; the machine's lifting performance is the highest in the industry.

• Low-speed high-torque slewing system, adding dual-pump merging function, good micro-movement, and achieving telescopic and variable double-pump merging at the same time. The time has reached the industry-leading level.

• Crane intelligent boom control technology, automatic planning of lifting conditions, providing the most intelligent operation planning and operation safety protection, force limiter system, dangerous operation alarm to make operation safer, waterproof upgrade of the whole machine harness, mature supporting system This makes the whole machine more reliable; the electrical system of the relay is upgraded to a PLC control system, and with the new high-protection level wiring harness technology, a multi-pass wiring harness branch design is adopted, with fewer line branches, shielding fault points at the bottom, and high reliability.

• Car-level XCMG-machine interaction system, full ergonomic working space design, more reasonable button division, more friendly man-machine dialogue, and more comfortable operation.

Technical specification of XCMG 20t Telescopic Truck Crane XCT20L4 Diesel Engine 192Kw Euro III

Item unit parameters
Model XCT20L4
Size
Overall length mm 12535
Overall width mm 2500
Overall height mm 3420
Wheelbase mm 4425+1350
Track mm 2027 /1834
Weight
Operating weight kg 26020
Axle load kg 6450/19570
Engine
Engine model SC7H260Q4/WP7.270.E434
Engine rated power kw/(r/min) 192/2300199/2100
Engine rated torque N.m/(r/min) 1000/1200~16001160/1200~1500
Driving
Top speed km/h 85/80
Minimum stable driving speed km/h 2~5
Turning
Minimum turning diameter m 20
Minimum turning diameter of boom m 24
Maximum grade ％ 45/50
Minimum ground clearance mm 261
Approach angle ° 19/12
Departure corner ° 13
Braking distance m ≤10(speed 30km/h)
Fuel consumption per hundred kilometers L 30
Main performance
Maximum rated total lifting capacity t 20
Minimum rated amplitude m 3
Lifting moment of basic boom kN·m 957
Turntable radius mm 3425
Outrigger
Vertical m 5.23
Horizontal m 6.16
Lifting height
Basic arm m 10.9
Longest main arm m 34.5
Longest main arm + jib m 42.8
Longest main arm + jib + extension m -
Boom length
Basic arm m 10.6
Longest main arm m 34
Longest main arm + jib m 42.3
Longest main arm + jib + extension m -
Working speed
Turning speed r/min 3
Lifting speed
Main lifting mechanism 135
Deputy lifting mechanism 135
Boom extension time
Full extension s 50
Full shrink -
Luffing time
Full arm s 35
Full arm drop s -
Outriggers
Level
At the same time s 25
At the same time s 23
Vertical
At the same time s 25
At the same time s 24

20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III

20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III

20t Telescopic Truck Crane U Shaped XCT20L4 Diesel Engine 192Kw Euro III
