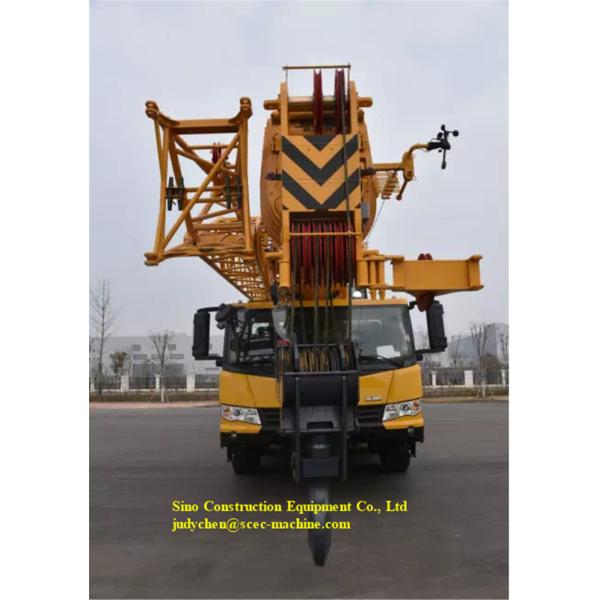

Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model
Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model
Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model
Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model
Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model
Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model
Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model
Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model
Specifications
Brand Name :
XCMG
Model Number :
QY75K
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 units per month
Delivery Time :
Within 25-35 work days after receive order
Packaging Details :
Nude, Polished with wax before shipping
Product name :
XCMG 75t New Telescope Truck Crane QY75K
Overall Size :
14650x2800x3880mm
Total driving weight :
48000kg
Engine :
D10.38A-40 276/2200kw/(r/min)
Maximum rated total lifting capacity :
75t
Minimum rated amplitude :
3m
Longest main arm + jib height :
64.5m
Fuel consumption per hundred kilometers :
48L
Description

Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model

XCMG 75t New Telescope Truck Crane QY75K Engine 276Kw 2020 Model

Features of XCMG 75t New Telescope Truck Crane QY75K

The four-axle steering 75-ton truck crane has a compact structure, coordinated layout, and highest industry performance.

• Deep structure optimization design, the industry's strongest lifting capacity

• All-wheel steering, flexible maneuvering

• Power-assisted shifting for lighter handling

• Outrigger pressure detection and lifting system reliability increase, the whole machine is safe and reliable

• New upgraded appearance and humanized design, driving comfort is more comfortable

Detail specification of XCMG 75t New Telescope Truck Crane QY75K

Item Unit Parameter
Model QY75K
Size
Overall length mm 14650
Overall width mm 2800
Overall height mm 3880
Wheelbase mm 1500+4665+1500
Track mm 2380/2380/2300/2300
Weight
Total driving weight kg 48000
Axle load kg 1,2: 12000 /3,4:12000
Engine
Engine model D10.38A-40
Engine rated power kw/(r/min) 276/2200
Engine rated torque N.m/(r/min) 1500/1100～1600
Driving
Top speed km/h 80
Minimum stable driving speed km/h 2.5～3
Turning
Minimum turning diameter m 20
Minimum turning diameter of boom m -
Maximum grade ％ 37
Minimum ground clearance mm 427
Approach angle ° 19
Departure corner ° 15
Braking distance m ≤10
Fuel consumption per hundred kilometers L 48
Main performance parameter
Maximum rated total lifting capacity t 75
Minimum rated amplitude m 3
Lifting moment of basic boom kN·m 2969
Turntable radius mm 4330
Outrigger
Vertical m 6.4
Horizontal m 7.6
Lifting height
Basic arm m 12.6
Longest main arm m 47
Longest main arm + jib m 64.5
Boom length
Basic arm m 12.2
Longest main arm m -
Longest main arm + jib + extension m -
Working speed
Turning speed r/min 1.9
Lifting speed
Main lifting mechanism Full load: 75 Empty load: 140
Deputy lifting mechanism Full load: 98 Empty load: 108

Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model

Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model

Oil Fields Telescopic Boom Truck Crane 75t XCMG QY75K Engine 276Kw 2020 Model

After-sale service:

1. Assist clients to prepare for the first construction scheme;

2. Install, debug and examine the equipment;

3. Train technical personnel the first-line operators;

4. Provide technical exchanging

5. Offer spare parts at a best price for long term.

6. more than 12 months' warranty period

7. Erection and Commissioning

8. Operator Training

9. Spare Parts Supply
