75 Ton Telescopic Truck Crane XCMG QY75K Engineering Crane Truck Series

XCMG 75t Telescopic Boom Truck Crane QY75K Engineering Crane Truck Series Max.Lifting 75 Tons

Features of XCMG 75t Telescopic Boom Truck Crane QY75K

The four-axle steering 75-ton truck crane has a compact structure, coordinated layout, and highest industry performance.

• Deep structure optimization design, the industry's strongest lifting capacity

• All-wheel steering, flexible maneuvering

• Power-assisted shifting for lighter handling

• Outrigger pressure detection and lifting system reliability increase, the whole machine is safe and reliable

• New upgraded appearance and humanized design, driving comfort is more comfortable

Quick look of XCMG 75t Telescopic Boom Truck Crane QY75K

Rated lifting capacity: 75 t

Lifting height-basic arm: 12.6 m

Maximum lifting height-full outrigger: 47 m

Chassis engine model: D10.38A-40

Rated power: 276/2200 kw / rpm

Maximum driving speed: 80 km / h

Maximum lifting speed of main winch: full load 75 no load 140 m / min

Advantages of XCMG 75t Telescopic Boom Truck Crane QY75K

1. Humanized design control room, full of comfort

Located on the left side of the turntable, the new iron control room is equipped with a foreground window with no blind spots, safety glass, windows with sun visors, push-pull doors, the seat back can be tilted, and the joysticks are installed on both sides of the seat On the armrest. With push-pull pedal for easy access. The top window of the front window is equipped with wipers, standard operating controls and indicators. Equipped with heating and air conditioning.

2. Humanized design control room, full of comfort

Located on the left side of the turntable, the new iron control room is equipped with a foreground window with no blind spots, safety glass, windows with sun visors, push-pull doors, the seat back can be tilted, and the joysticks are installed on both sides On the armrest. With push-pull pedal for easy access. The top window of the front window is equipped with wipers, standard operating controls and indicators. Equipped with heating and air conditioning.

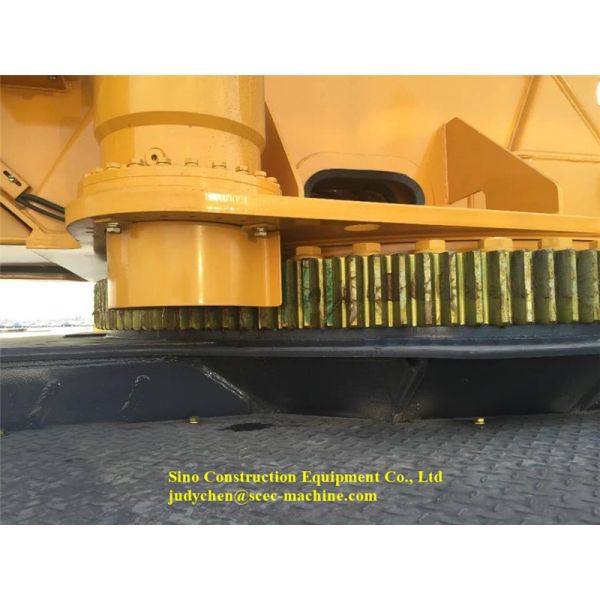

3. Stable and reliable turning mechanism

The planetary reducer and unique back pressure technology are used to improve the stiffness of the system, effectively eliminate the problem of swing vibration, and ensure the smooth and reliable rotation.

4. Strong hoisting stability with multiple safety protection devices

The horizontal span / longitudinal span is up to 7100mm / 6100mm, which is at the same level in the industry, and the lifting stability is strong. Equipped with a torque limiter, a dot-matrix liquid crystal color display with temperature control and backlight functions can clearly and intuitively display crane operating parameters in text and graphics, making various working conditions clear at a glance; equipped with overload and roll protection devices; Safety devices such as height limit and safety direction detection; also equipped with lighting devices to facilitate night operations.

5. Extremely high passability, easy to control

The approach angle / departure angle reaches 19 ° / 15 °, and the feet are lifted from the ground to 327mm, which are both better than the same industry and have strong passing performance.

Parameters of XCMG 75t Telescopic Boom Truck Crane QY75K

After-sale service:

Assist clients to prepare for the first construction scheme;

2. Install, debug and examine the equipment;

3. Train technical personnel the first-line operators;

4. Provide technical exchanging

5. Offer spare parts at a best price for long term.

6. more than 12 months' warranty period

7. Erection and Commissioning

8. Operator Training

9. Spare Parts Supply

Packaging&Shipping Details

1. The normal package is nude packing, we do anti-rust wax spray to protect machines during the shipment.

2. The truck crane are all shipped by RO/RO ship, we will go to loading port to inspect loading in order to make sure our machines are safety.
