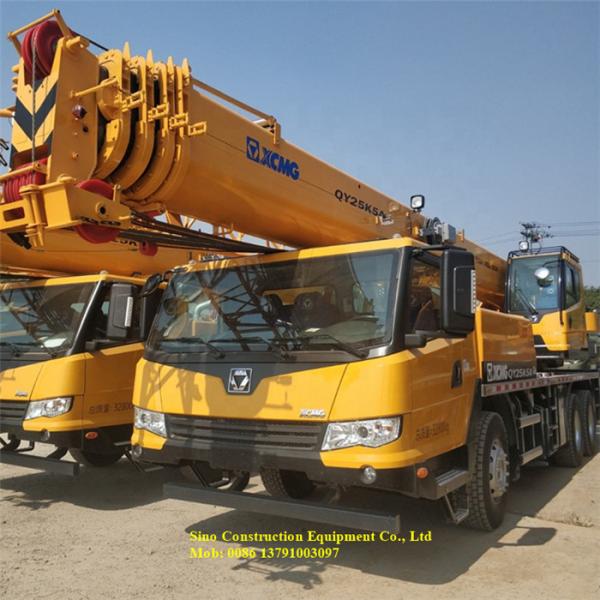

High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom
High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom
High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom
High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom
High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom
High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom
High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom
High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom
Specifications
Brand Name :
XCMG
Model Number :
QY25K5A
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 units per month
Delivery Time :
Within 30-35 work days after receive order
Packaging Details :
Nude, Polished with wax before shipping
Product name :
XCMG Telescope Hydraulic 25t Truck Crane QY25K5A
Condition :
New
Overall Size :
12680x2500x3400mm
Operating weight :
Operating weightkg
Engine :
SC9DF290Q4 213/2200kw/(r/min)
Maximum rated total lifting capacity :
25t
Description

High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom

XCMG Telescope Hydraulic 25t Truck Crane QY25K5A Engine 213KW Euro III

Features of XCMG Telescope Hydraulic 25t Truck Crane QY25K5A

QY25K5A is a cost-effective product that is comprehensively upgraded on the basis of our mature QY25K5-I

• “U” -shaped main boom, leading in the industry in terms of boom length and lifting performance

• New power transmission platform, leading in driving performance and lowest in driving fuel consumption

• Double-pump confluence technology, leading the overall efficiency of luffing and telescopic operation

• Technology optimization and improvement, making the whole machine safer and more reliable

• New upgraded appearance and user-friendly design, driving comfort is more comfortable

Quick look of XCMG Telescope Hydraulic 25t Truck Crane QY25K5A

Rated total lifting capacity (t): 25

Basic boom length (m): 10.6m

Outrigger vertical / horizontal span (mm): 5300/6000

Moment (KN.m): 1061

Engine: SC9DF290Q4

Engine rated power (kW): 213/2200

Detail specification of XCMG Telescope Hydraulic 25t Truck Crane QY25K5A

Item Unit Parameter
Model QY25K5A
Size
Overall length mm 12680
Overall width mm 2500
Overall height mm 3400
Wheelbase mm 4425+1350
Track mm Front 2074/rear 1834
Weight
Operating weight kg 32800
Axle load kg F: 7300/R: 25500
Engine
Engine model SC9DF290Q4
Engine rated power kw/(r/min) 213/2200
Engine rated torque N.m/(r/min) 1200/1400
Driving
Max. speed km/h 90
Minimum stable driving speed km/h 2.5～3
Turning
Minimum turning diameter m 22
Minimum turning diameter of boom m 29
Maximum grade ％ 41
Minimum ground clearance mm 275
Approach angle ° 11
Departure corner ° 12
Braking distance m ≤10
Fuel consumption per 100km L 32
Main performance parameter
Maximum rated total lifting capacity t 25
Minimum rated amplitude m 3
Lifting moment of basic boom kN·m 1061
Turntable radius mm 3255
Outrigger
Vertical m 5.3
Horizontal m 6
Lifting height
Basic arm m 10.9
Longest main arm m 41.5
Longest main arm + jib m 48.5
Boom length
Basic boom m 10.6
Work speed
Turning speed r/min 2.5

High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom

High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom

High Performance Truck Mounted Telescopic Crane 25t QY25K5A With U Shaped Boom

Shipping: By bulk ship

Packing: Nude, polished with wax before shipping
