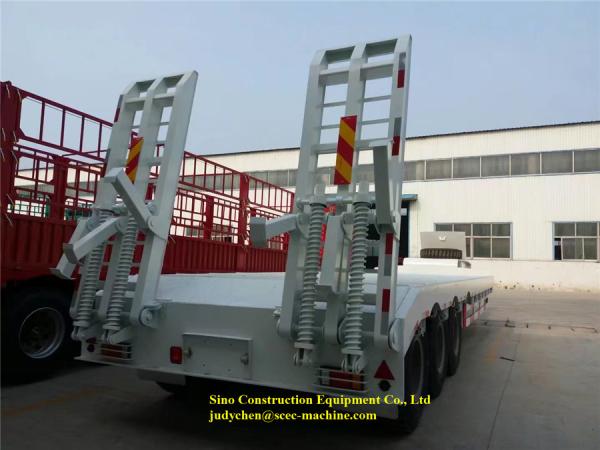

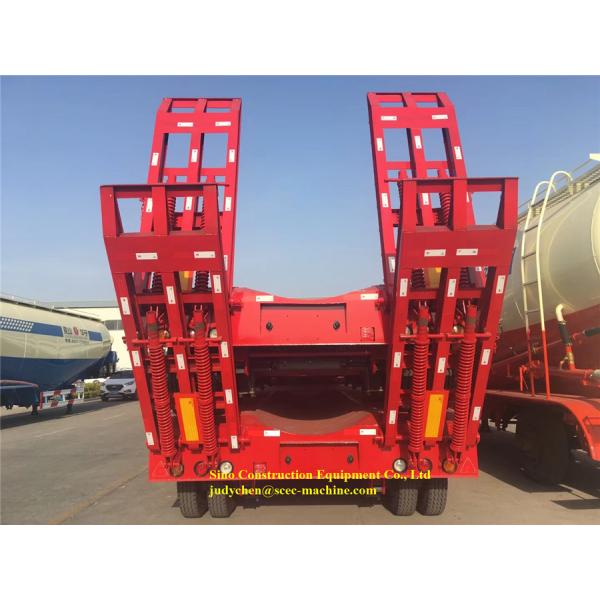

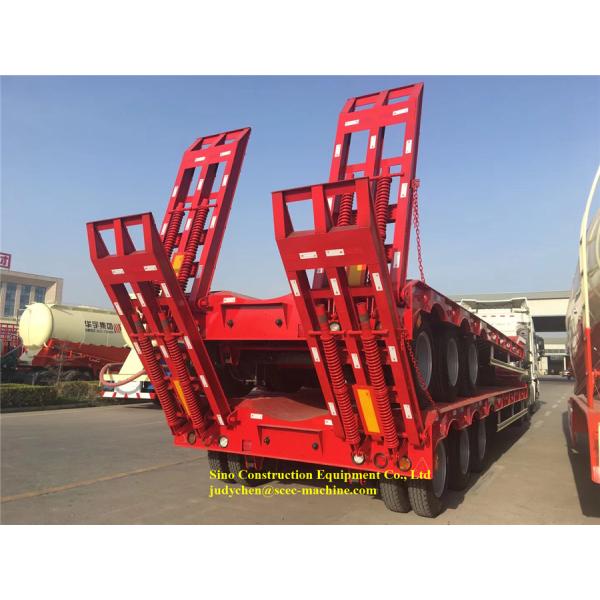

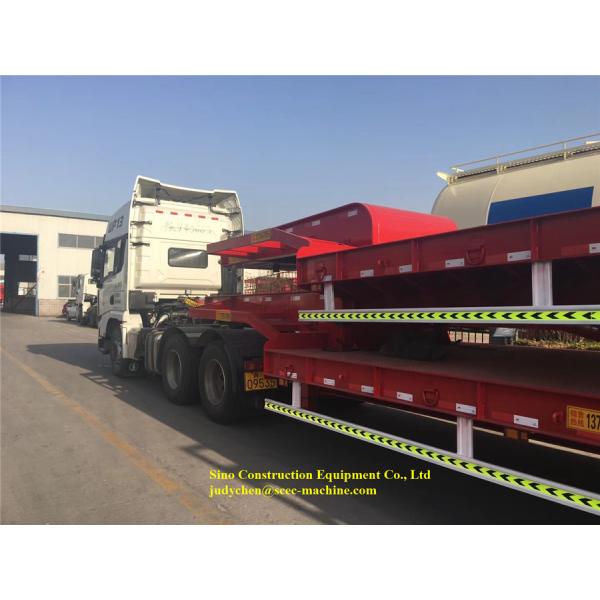

Gooseneck Low Bed Semi Trailer 60t Tri Fuwa BPW Axles For Heavy Machinery Transport

Sinotruk 60t Tri Fuwa/BRW Axles Heavy Duty Gooseneck Low Bed Semi Trailer with Mechanical Ladder for Heavy Machinery Transport

Quick look of Sinotruk 60t Tri Fuwa/BRW Axles Heavy Duty Gooseneck Low Bed Semi Trailer

Size: 13000*3000*1650mm

Type: Low Bed Semi-Trailer

Material: Steel

Max Payload: 60T

Axle Brand: 13TON Axle FUWA Brand

Axle Number: Three

King pin: 2"(50mm)or3.5"(90mm)

Suspension system: Common Mechanical Suspension

Steel Spring: 10/10/10 leaf spring suspension

Platform plate: 3mm Diamond plate

Container Twist Locker: 12pcs container lock

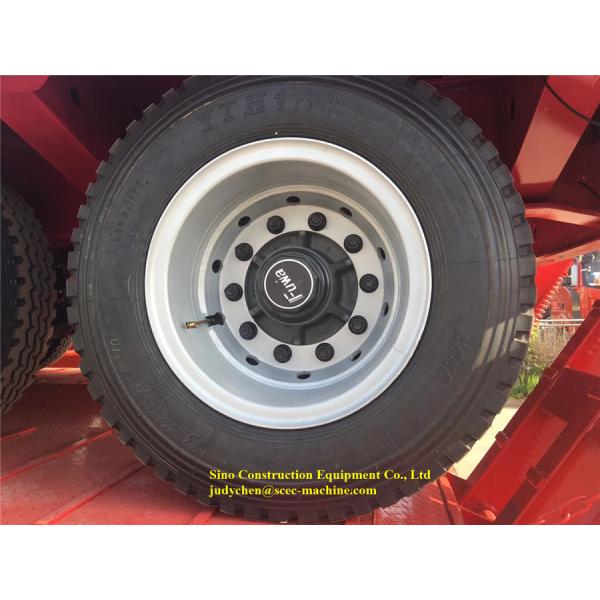

Tire Type and quantity: 12R22.5 12units

Color: Red, White, Yellow......

Application of Sinotruk 60t Tri Fuwa/BRW Axles Heavy Duty Gooseneck Low Bed Semi Trailer

Low flatbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) ) And other heavy cargoes, the lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high cargoes and pass overhead obstacles.

Features of Sinotruk 60t Tri Fuwa/BRW Axles Heavy Duty Gooseneck Low Bed Semi Trailer

1. Low flat

The series of low-bed semi-trailers have flat, recessed beam and exposed tire structures. The longitudinal beams are straight or gooseneck. The frame is stepped, and the longitudinal beam section is I-shaped, with high rigidity and high strength.

2. Cargo platform

The main plane of the frame cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.

3. Three-axis balanced

It adopts three-axis balance type, two-axis balance type or rigid suspension. Mass balancer is installed between the front and rear leaf springs, which can change the deflection of the front and rear leaf springs by the same amount, and make the front and rear axles balanced.

The low flatbed semi-trailer series products are suitable for the transportation of various steel materials such as a variety of machinery and equipment, large objects, highway construction equipment, large tanks, and power station equipment. The entire vehicle adopts advanced computer-aided design software, which is optimized for flexible and diverse designs. According to user requirements, the frame bearing surface is designed to meet the transportation of various special goods.

Parameters of Sinotruk 60t Tri Fuwa/BRW Axles Heavy Duty Gooseneck Low Bed Semi Trailer

After-sales Service

1: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.

2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.

3: We are serious about after-sales service.

Shipping Way

Mode of transport: bulk cargo, ro-ro transport, container transport
We can arrange the most cost-effective transportation solution according to the number of semi-trailers required by customers.
