Low Bed Semi Trailer 3 Fuwa Axles Jost Support Leg Loading 50 Ton - 100 Ton

SCEC/CIMC Low Bed Semi Trailer 3 Fuwa axles Jost Support Leg Loading 50-100t

Application:

This model CIMC Low Bed Semi Trailer is used for transport heavy machinery or heavy goods.

The low bed semi trailer which equipped with rear ladders. Heavy machinery like excavator, wheel loader...these have own power, can climb by ladder, saving crane cost.

Specification:

Remarks:

1. The loading surface of 3 axles low bed semi trailer platform is 850mm above the ground.It can only transport Indestructible object, optional non-leakage tires, optional goose-neck structure, and optional rear spring ladders, hydraulic ladders, and rear tail styles.

When mounted without a ladder, the vehicle height is 1750mm.Because the bearing surface of this model is low, the structure of the vehicle itself completely achieves the protection purpose, so the left, right and rear lower protection devices can not be installed.

2. The height of the cargo platform bearing surface above the ground can be 700,800,850,950,1000,1100,1150mm, optional slope style, round corner style, right-angle style at the upper part of the goose neck; optional half-section small platform, integral small platform and small platform frame type on both sides of the goose neck;

3. Optional between longitudinal beams Under-arc, half-arc, under-beam, and under-arc of the beam slope; optional flat style and recessed middle style for the cargo platform; the above options and optional styles can be selected at will;

4. Optional The change of the preparation quality parameters is within 3%. When the external dimension is 13000mm, the corresponding wheelbase is 8550 + 1310 + 1310/8280 + 1310 + 1310; when the external dimension is 12500mm, the corresponding wheelbase is 8280 + 1310 + 1310/7780. + 1310 + 1310;

5. ABS system manufacturer is Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. Limited, Model CM2XL-4S / 2M; Q235A guard made of steel material, welded connection for the section width, rear protection is 60mm, 470mm section height, ground clearance 500mm.

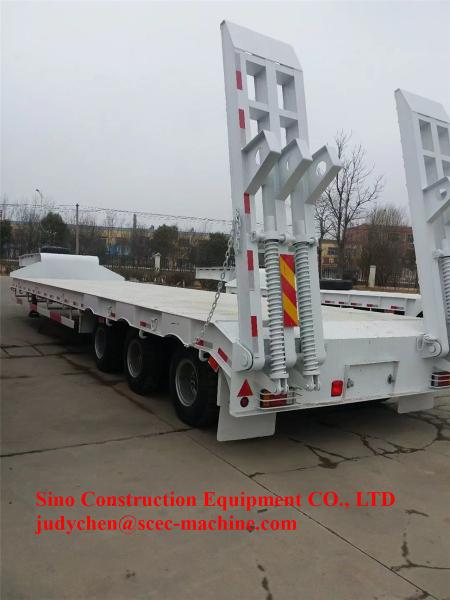

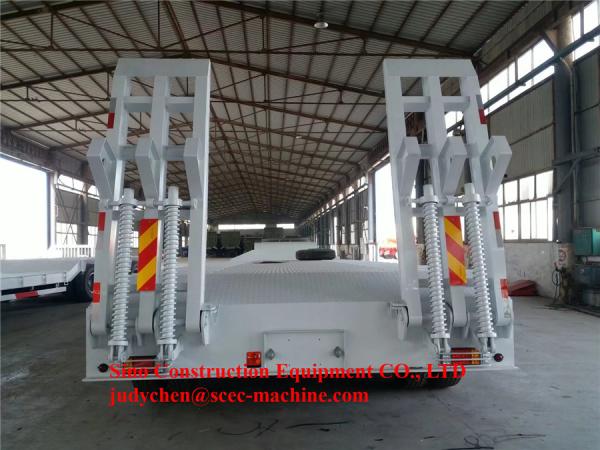

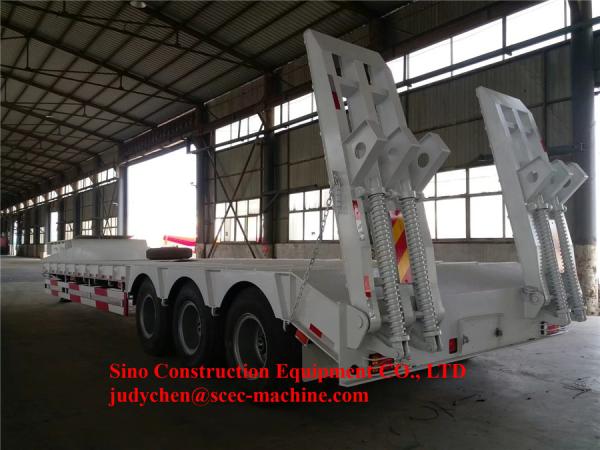

More photos for this model low bed semi trailer:

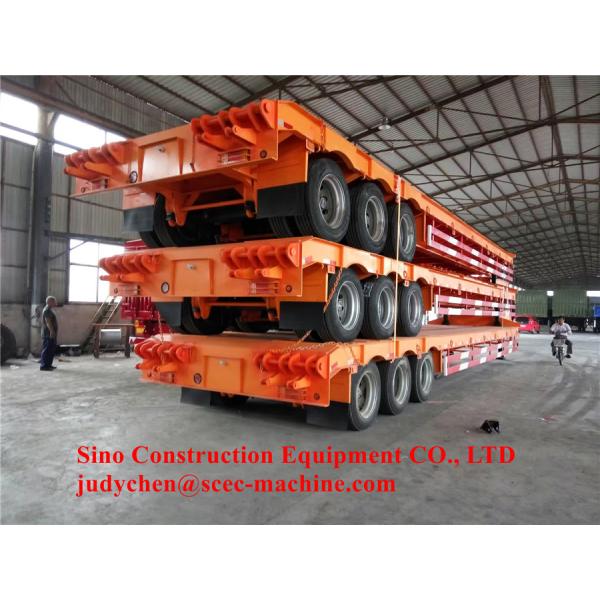

Shipping photos:

FAQ:

How About Payment?

We Accept T/T And L/C payment.or other payment way available.

How About Warranty?

According to different Semi-trailer model Oversea warranty time 5-8 Years.

How About Delivery Time?

According to different Semi-trailer quantity Delivery time 15-25 Days.

How About After-Sale?

Life-Time After Sale and Spare Parts supply.Guide Video for customer.

Tag: 3 axles low bed semi trailer
