SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
Specifications
Brand Name :
SCEC-CIMC
Model Number :
SCEC-CIMC
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 units per month
Delivery Time :
within 25 work days after receive prepayment
Packaging Details :
nude, shipped by bulk ship or ro-ro ship
Product name :
cement bulker trailer
Axle :
3x13T FUWA axles
Tire :
16 pieces 11.00R20 tires
Diesel Engine :
Weichai Model 4105
Air Compressor :
Bohai 12m3 double cylinders
Tank capacity :
35m3
Discharging Pipe :
7m
Color :
Optional
Description

SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer

SCEC-CIMC 3 axles 35cbm Bulk Cement Tanker Semi Trailer

Product name: cement bulker trailer

Function: Bulk cement transporting tank semi trailer

Axle: 3x13T FUWA axles

Tire: 16 pieces 11.00R20 tires

Diesel Engine: Weichai Model 4105

Air Compressor: Bohai 12m3 double cylinders

Suspension: Leaf spring Suspension

Landing Gear: JOST A400

King pin: 2"(50mm)or3.5"(90mm) JOST

Tank capacity: 35m3

Discharging Pipe: 7m

Items Bulk cement tank trailer
Loading Capacity 35cbm V-shape
Axle 3 pieces, 13T FUWA/BPW axle
Tyre 12 pieces, 10.00R20
Dimensions(LxWxH) 9500×2500×3950
Tare weight 7980kgs
Axle spacing 1310mm
Rims 8.5-20, 9.0-20
Suspension System Leaf spring suspension / air suspension
Brake System Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam Height 500mm Q345
Chassis upper 20mm, lower 20mm. Mid web 12mm
Diesel Engine Weichai brand Model 4105
Air Compressor Bohai brand 12m3 double cylinders
Related Valves One whole set of valves
Kingpin 2’ or 3.5’ interchangeable
Landing Gear 28 Tons , Two speed manual operation
Electrical System 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box One tool box with a set of standard trailer tools
Spare Tyre Carrier One piece or two pieces

Remark for 3 axles 35cbm Bulk Cement Tanker Semi Trailer:

The effective volume is: 33.5 cubic meters.

The external dimensions of the tank are: 7800mm long (without head), minimum diameter: 1800mm, maximum width: 2500mm;

with unit, the overall dimensions are (length × width × height mm): 9500 × 2500 × 3950, without unit, the overall dimensions are (length × width × height mm): 8720 × 2500 × 3950.

ABS system manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., Liangshan Shun Anda Automobile Technology Co., Ltd. , ABS model: CM2XL-4S / 2K (4S / 2M), SAD-ABS4S / 2M;

Side and rear lower protection deviceAll materials: Q235, side protection connection method: welding, rear protection connection method: welding, rear The main size parameters of the protective device: section size (mm): 120 × 68, height from the ground: 500mm.

The top can not be slotted, and the rear can not be opened. The rear part of the optional beam can be curved, and the optional lamp model and rear

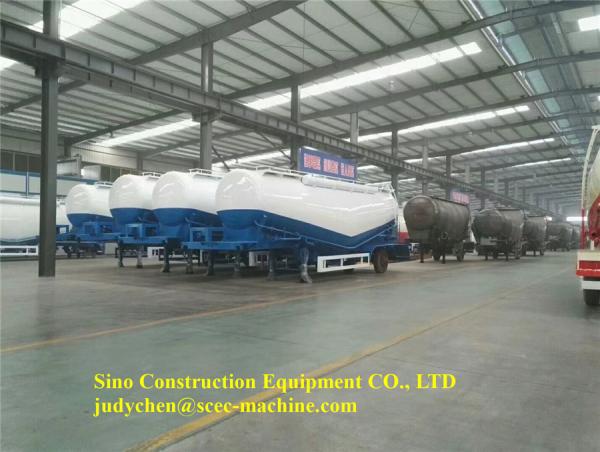

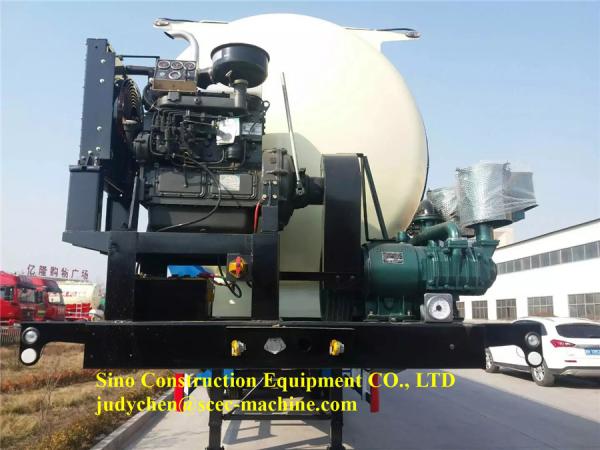

More photos for youyr reference:

SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer

SCEC Heavy Duty Semi Trailers CIMC 3 FUWA Axles 35cbm Bulk Cement Tanker Trailer
