Specifications
Brand Name :
Sinotruk
Model Number :
Sinotruk
Certification :
ISO CCC
Place of Origin :
Jinan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 units per month
Delivery Time :
Within 30-35 work days after receive order
Packaging Details :
Nude, Polished with wax before shipping on board
Product name :
Sinotruk 4 Fuwa Axles Flatbed Container Semi Trailer
Overall Dimension(Lx W x H)(mm) :
12500*2500*1550
Function :
1x40ft container or 2x20ft container.
Tare Weight(KG) :
7700
Payload  ( KG) :
60000
Axle :
4x13ton FUWA Axle
Platform plate :
3mm Diamond plate

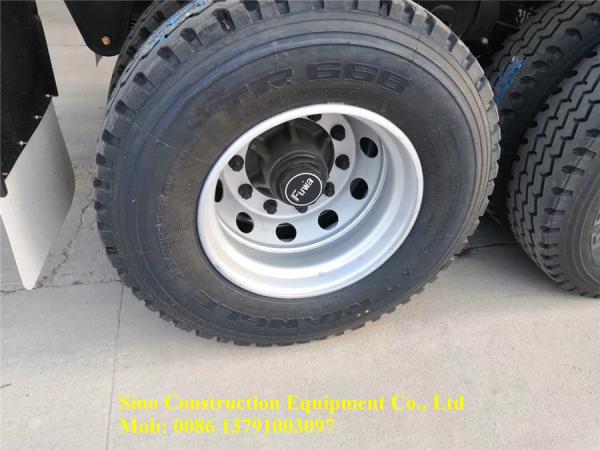

Tire Type and quantity :
12R22.5,16pcs
Description

Flatbed Container Semi Trailer Max Loading 60 Ton Cement Tanker Trailer

Sinotruk 4 Fuwa Axles Flatbed Container Semi Trailer Max.Loading 60ton Heavy Duty Semi Trailer

Features of Transport Flatbed Semi-Trailer

1. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

2. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

4. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.

5. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.

Specification of Sinotruk 4 Fuwa Axles Flatbed Semi Trailer Max.Loading 60ton Heavy Duty Semi Trailer

Trailer Model 4 Axle flatbed container Trailer
Overall Dimension(Lx W x H)(mm) 12500*2500*1550
Function 1x40ft container or 2x20ft container.
Tare Weight(KG) 7700
Payload ( KG) 60000
Axle Brand 13ton FUWA Axle
Axle Number 4
Wheelbase(mm) 6260+1310+1310+1310
Suspension system Mechanical suspension
Steel Spring 8/8/8/8 leaf spring suspension
The material of Main beam

The height of the beam is 500 mm,

upper plate is14mm,down plate is 16mm,

middle plate is 6mm.

Platform plate 3mm Diamond plate
Container Twist Locker 12 pieces
Tire Type and quantity 12R22.5,16pcs
Traction Pin 2’/3.5’
Spare Wheel Bracket 2 picecs
Tool Box 1 Standard
Landing Gear 28ton landing leg
Brake system Dual Line braking system ,none ABS.
Brake air chamber Two double and two single chamber

Electrical system

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side Guard According to customer’s requirement
Painting Color by customer’s requirement
Packing Polish with wax before shipping

Flatbed Container Semi Trailer Max Loading 60 Ton Cement Tanker Trailer

Flatbed Container Semi Trailer Max Loading 60 Ton Cement Tanker Trailer

Flatbed Container Semi Trailer Max Loading 60 Ton Cement Tanker Trailer

Flatbed Container Semi Trailer Max Loading 60 Ton Cement Tanker Trailer

Flatbed Container Semi Trailer Max Loading 60 Ton Cement Tanker Trailer

Packing&Shipping:

All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER, 40 HQ Container for the trailer and parts.

Our services:

Professional Production Team:

Experienced Sales,Provide Clients High Assembling for Fast Quality Delivery

Customize:

Professional Design Team Provide Suitable Programs and Customized

7*24H Service

7*24H Service Provide Professional Fast Response

Parts Support:

Abundant Parts Supply Provide Lasting Support for Worldwide Clients

Our foreign markets:

African countries:

Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.

European and Asian countries:

Russia, Kazakhstan, Kyrgyzstan, Bangladesh, Azerbaijan, Vietnam, Laos, Cambodia, the Philippines, Malaysia and so on.

South American countries:

Brazil, Bolivia, Uruguay, Peru, Ecuador , Trinidad and Tobago , Chile, Barbados , Argentina, Dominica, Cuba, and so on
