Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Specifications
Brand Name :
XCMG
Model Number :
SQ8SK3Q
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 units per month
Delivery Time :
within 25 work days after receive prepayment
Packaging Details :
Nude, shipped by bulk ship or roro ship
Rated Lifting Moment :
1764kN.M
Max. Lifting Load :
8 ton
Vehicle Main Dimensions :
11700*2496*3635
Cargo Box :
8200×2300×500mm
Engine :
WD615.69
Crane Weight :
3300kg
Installation Space :
1200mm
Description

Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q

Sinotruk Howo Chassis Monted with XCMG SQ8SK3Q Truck Mounted Crane Straight Type 8T Truck Mounted Crane

Quick look of XCMG SQ8SK3Q Truck Mounted Crane

Model Number: SQ8SK3Q

Application: Construction

Rated Lifting Moment: 1764kN.M

Max. Lifting Load: 8 ton

Span: 10m

Product name: telescopic boom truck mounted crane 8 ton truck with crane for sale

Brand: SINOTRUK

Driving type: 6x4

Engine: WD615.69

Transmission: HW19710

Axle: HC16

Cab: HW76

Tire: 1200R20

After-sales Service Provided: Engineers available to service machinery overseas

Technical specification of XCMG SQ8SK3Q Truck Mounted Crane

Description HOWO 6x4 truck with crane

Vehicle Main

Dimensions

 (L x W x H)mm 11700*2496*3635
Wheel base (mm) 5825+1350
Weight in KGS Curb Weight 15000
GVW 25000
Max. driving speed(km/h) 102
Engine Model WD615.69
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 336
Emission standard Euro II
Gearbox 10 forwards& 2 reverse
Fuel Tank 300L
Clutch Reinforced diaphragm clutch, diameter 430mm
Tire 1200R20, 10+1 spare
Brakes Service brake: dual circuit compressed air brake
Steering Gear power steering, hydraulic steering with power assistance
Equipment for Crane Mounted Parts
Working Platform 360°turning(left or right), H-shape legs 360°
Cargo Box 8200×2300×500mm
Equipment

Crane can be selected

Hydraulic valve is universal in the world on the safe side;

three point floating type to protect crossbeam of the truck;

all hydraulic pressure and 360°turning;

new H-shape type; high precise drawn tube;
Crane specifications Brand : Xugong
Max lift capacity: 6300 kg
Max working radius 10 m
Lifting Max. Height 12.5m

8T Straight crane

Model SQ8SK3Q Unit
Max Lifting Capacity 8000 kg
Max Lifting Moment 20 T.M
Recommend Power 28 kw
Max Oil Flow of Hydraulic System 55 L/min
Max Pressure of Hydraulic System 27 MPa
Oil Tank Capacity 160 L
Rotation Angle All Rotation
Crane Weight 3300 kg
Installation Space 1200 mm
Choice of Chassis Sinotruk HOWO

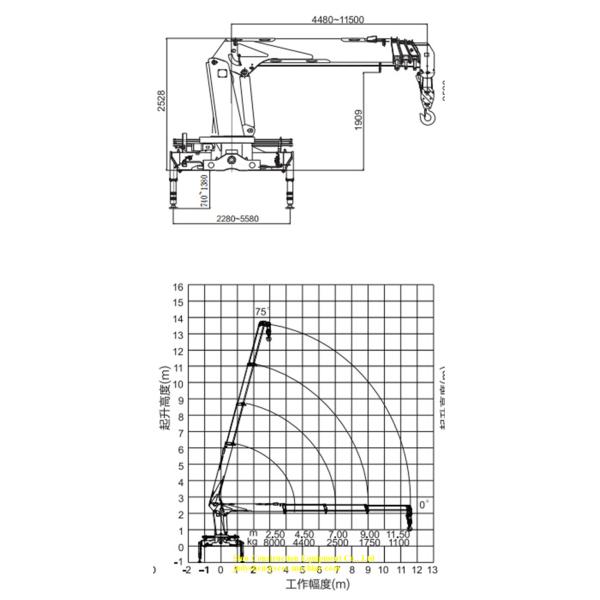

SQ8SK3Q Lifting capability diagram
Working radius (m) 2.5 4.5 7 9 11.5
Lifting capacity (kg) 8000 4400 2500 1750 1100
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q
Straight Type Truck Mounted Crane Sinotruk Howo Chassis Monted XCMG SQ8SK3Q

Features of XCMG SQ8SK3Q Truck Mounted Crane

Our company's straight-arm truck-mounted crane covers 1-25 tons of 14 models and 65 kinds of products, which can meet various working conditions. It has mature production and manufacturing technology with the longest boom and the largest tonnage crane in China. Research and development technology, and new products are constantly being introduced to the market to satisfy customers' use.

The cross section of the boom of our company adopts mature pentagon, hexagon and octagon. The latest generation of the product adopts U-shaped arc arm. The weight of the whole machine is reduced. Improved capacity, significantly improved lifting capacity.

The application of the jib, auxiliary hoist, and auxiliary hook provides a selection basis for the crane's light load, rapid and large-scale operation and large height, and expands the field of product use. The application of the automatic hook retracting technology saves time and labor when starting and ending crane operations, enabling easy and convenient operation.

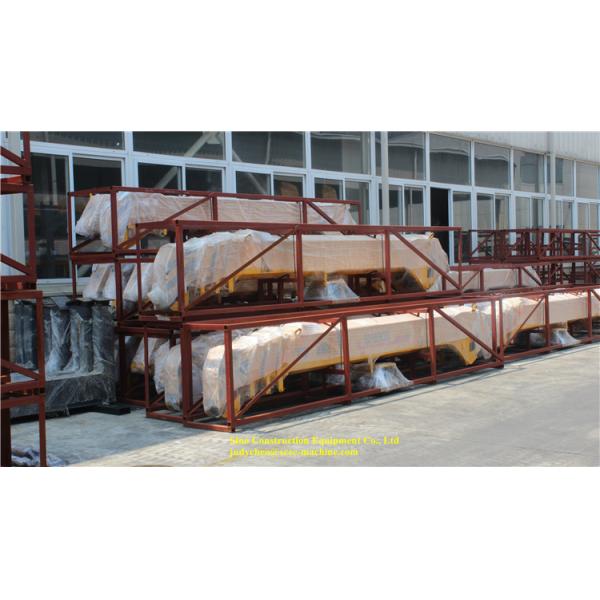

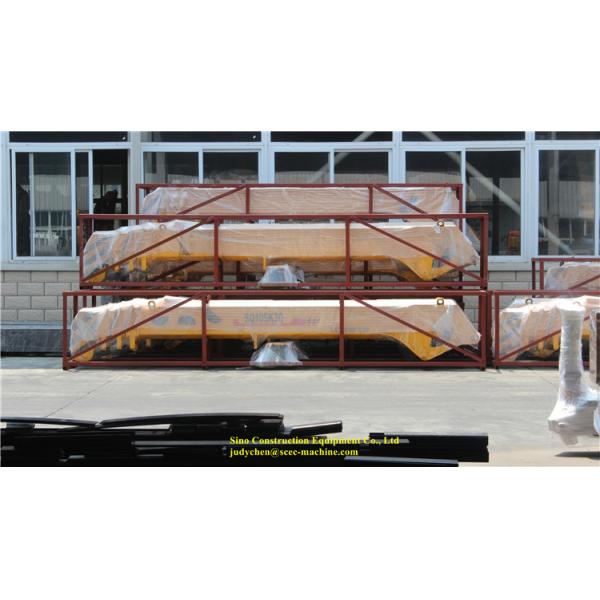

Packaging & Shipping

Packaging: All the trucks will be polished with wax before shipping

Shipping: RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER

(P.S. 40 HQ Container for the trailer and parts only)

Suitable way will be choose according to the real situation.
