Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift
Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift
Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift
Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift
Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift
Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift
Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift
Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift
Specifications
Brand Name :
SCEC
Model Number :
AC Motor
Certification :
ISO CCC
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 Set/Sets per Month
Delivery Time :
30-35 work days
Packaging Details :
In nude
Max. Lifting Height :
6000mm
Min. Lifting Height :
3000mm
Fork Width :
100mm
Capacity :
1200-2000kg
Hight-Mast Lowered :
2100mm
Wheel type :
Pu solid tire
Description

Compact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift

Diesel Forklift Truck Seated Operation Electric Reach Truck Pallet Stacker Forklift

Product Description of Diesel Forklift Truck Seated Operation Electric Reach Truck Pallet Stacker Forklift

1. Because of CURTIS electronic control, so we have multiple automatic protection system controllers.
2. EPS swerve can reduce 20% of the energy consumption. It is precise, flexible, and convenient to operate. At the same time, it can reduce driver fatigue, boost productivity.
3. Moved forward type electric stacker is suitable for large tonnage, high hoisting cargo storage applications,applying to a variety of trays, and has the characteristics of moving forward for overall door frame. Furthermore, it has small turning radius and can neglect obstacles from the bottom of the shelf.
4. During the operation of decline, the pallet fork is kept in safe when hoisting control lever is in decline position. Especially when pallet fork drop to 10 cm above the ground, then speed will slow down automatically. It can effectively protect the goods from damage due to vibration. When the pallet fork goes to the top, buffering system can reduce the vibration of the door frame. So it is comfortable for operator.
5. Without complex operation, a smooth start can be realized under the condition of compact and strong AC motor drive.

6. It is endurable and has long battery life because of 48V high power battery.

Specification of Diesel Forklift Truck Seated Operation Electric Reach Truck Pallet Stacker Forklift

Performance Max load capacity kg 1000 1500 2000
with load center at Q mm 500 500 500
Max Lifting height H3 mm 1600 1600 1600
Reach length E mm 510 510 600
Tiltiing angle(up/down) deg ° 3/5 3/5 3/5
Travel speed (without load) km/h 5.3 5.3 5.3
Travel speed (with load) km/h 5.3 5.3 5.3
Lifting speed (without load) mm/s 120 120 120
Lifting speed (with load) mm/s 92 92 92
Lowered speed(without load) mm/s 173 173 173
Lowered speed(with load) mm/s 530 530 530
Ascend slope ability(without load) % 8 8 8
Ascend slope ability(with load) % 5 5 5
Weight(without battery ) kg 2050 2080 2140
Dimensions Overall Length of frame(Mast no reach) L mm 1998 1998 1998
Overall Length(Mast no reach) L1 mm 2450 2450 2450
Overall Length(Mast reach) L2 mm 2950 2950 2950
Overall width of frame B mm 1020 1020 1020
Overhead guard height mm 2185 2185 2185
Mast lowered height H1 mm 2200 2200 2200
Max height(mast lifted with backrest) H2 mm 2638 2638 2638
Wheelbase Y mm 1450 1450 1450
Fork length mm 1070 1070 1070
Fork width mm 100 100 100
Fork lowered height S mm 35 35 35
Fork spread width mm 210-716 210-716 210-716
Minimum frount height mm 55 55 55
Turning radius Wa mm 1815 1815 1906
Width of theoretical min aisle for right-angle stacking
(1200*1000)		 mm 2859 2859 1906
Tire Front wheel mm 210*75 210*75 210*75
Drive wheel mm 230*75 230*75 230*75
Caster wheel mm 130*55 130*55 130*55
Wheel material pylyurethane
Electricl
components		 Drive motor type AC series motor
Rated output kw 1.5 1.5 1.5
Hoist motor type DC series motor
Rated output kw 2.2 2.2 2.2
Battery Voltage V 24 24 24
Capacity AH 280
Weight kg 245

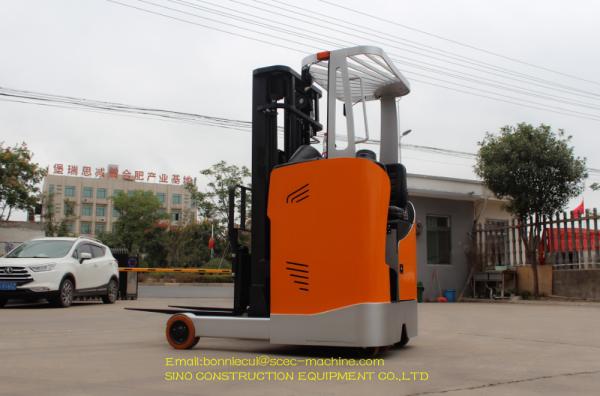

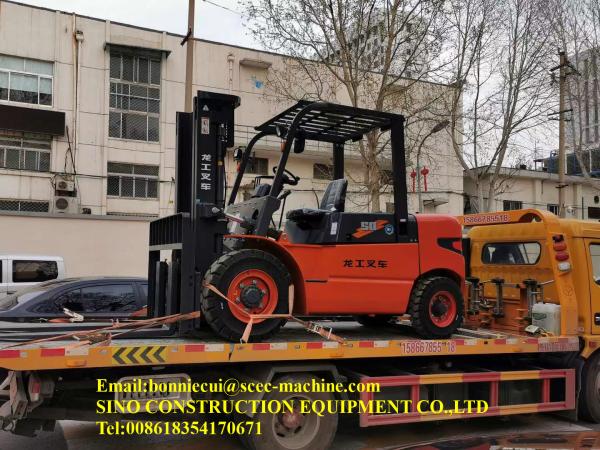

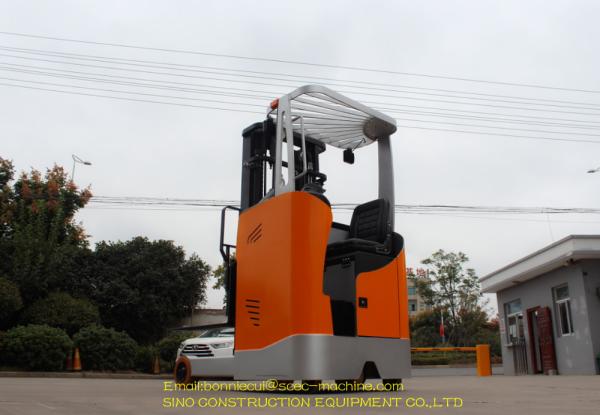

The photo of Diesel Forklift Truck Seated Operation Electric Reach Truck Pallet Stacker Forklift

Compact Diesel Forklift Truck Seated Operation Electric Reach Truck ForkliftCompact Diesel Forklift Truck Seated Operation Electric Reach Truck ForkliftCompact Diesel Forklift Truck Seated Operation Electric Reach Truck Forklift

FAQ

1. How long it will take to deliver the products after I pay for it?
Above delivery time is 26 days.

2. What is the payment term?

Our Payment: T/T, L/C, etc.

3. How long is the warranty period of your equipment’s?
1 year.

4. What are your main products?

Counterbalanced electric forklift, electric pallet stacker, electric pallet truck, electric reach truck, electric tow tractor, order picker.


5. Can you customize the product?
Yes, we are a professional storage equipment company integrating design, production and sales, have a very professional team of designers and technical engineers, can customize the equipment according to your requirements.

6. How about the quality of your products?

We have a professional quality control department to monitor the whole production process; have CE,ISO9001 certification; provide online support at any time.
