Specifications
Brand Name :
HOWO
Model Number :
SECE-202024
Certification :
ISO CCC
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Unit/Units per Month
Delivery Time :
30-35 work days after received the deposit
Packaging Details :
In nude
Tank material :
Carbon Steel
Transmission :
HW19710
Horsepower :
351 - 450hp
Drive Wheel :
6x4
Gross Vehicle Weight :
11360
Truck type :
SINOTRUK Oil Tanker Truck
Description

Sinotruk 6x4 Liquid Tanker Truck Fuel Oil Tanker Lorry Carbon Steel Material

Sinotruk New Design 6x4 Liquid Tanker Truck oil tank fuel truckLiquid Tanker Truck

Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price, because we get directly support from factory.

1. The Liquid Tanker Truck Oil Tank Fuel Truck Liquid Tanker Truck Factory price, more competitive than agent price.
2. Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3. Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.

Main Parameter of The Liquid Tanker Truck Oil Tank Fuel Truck Liquid Tanker Truck

Item No. Parameters
Tank Material Q235 high tension steel, 5mm thick carbon steel, customized tank color, can also paint customer's logo or advertisement.
Tank Capacity 25CBM 25,000Liters
Tank compartment 1
Drive model Left hand drive (LHD)
Vehicle Main Dimensions Dimension(L*W*H)(mm) 11700x2500x3400 mm
Wheel base(mm) 4350+1350
Overhang(front/rear)(mm) 1500/2425
Wheel track(front/rear)(mm) 2022/1830
Approach/Departure angle(°) 16/19 degree
Weight in KGS Gross Vehicle Weight 31000 kg
Curb weight 11000 kg
Horse power(HP) 336HP (Diesel)
Displacement(ml/kw) 9726/247
Tire 12R22.5 with one spare tire (13 pieces)
Warranty One year warranty for free for Engine,gear box and axles
Payment term 30% deposit by T/T,70% balance by T/T before shipment.
Standard Equipment

1.Tank valume:25CBM;25,000Liters, round or square;tanker material:4-6mm carbon steel, stainless steel,aluminium alloy and pure aluminum cans(according to different requirements)
2.Equipped with oiling machine,fueling gun, sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,safeguard system and so on.

3.Built-in type oiling machine, separate parts for different oils,out and in through pump,self-flow.

Product Description

Oil tank truck also called flow bowser, computer tax-controlled tanker truck, gasoline truck, oil truck.mainly used for oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil )transportation and storage.It's made of tanks, take power device, a transmission axis, a gear oil pump, pipeline system and other parts.Four consists of oil pump, the 3-way ball valve pipe network system, two-way of ball valve, strainer, pipe.

Chassis brand: HOWO
Material: carbon steel, aluminium, stainless steel

Capacicity : 25000 liters, 30000 liters , 35000liters

Usage: transport oil, fuel petroleum, chemical liquid

Axle: 2 axles, 3 axles, 4 axle Type: 4x2, 6x2, 6x4, 8x4

Main products


1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Packaging & Shipping

Sinotruk 6x4 Liquid Tanker Truck Fuel Oil Tanker Lorry Carbon Steel MaterialSinotruk 6x4 Liquid Tanker Truck Fuel Oil Tanker Lorry Carbon Steel MaterialSinotruk 6x4 Liquid Tanker Truck Fuel Oil Tanker Lorry Carbon Steel Material

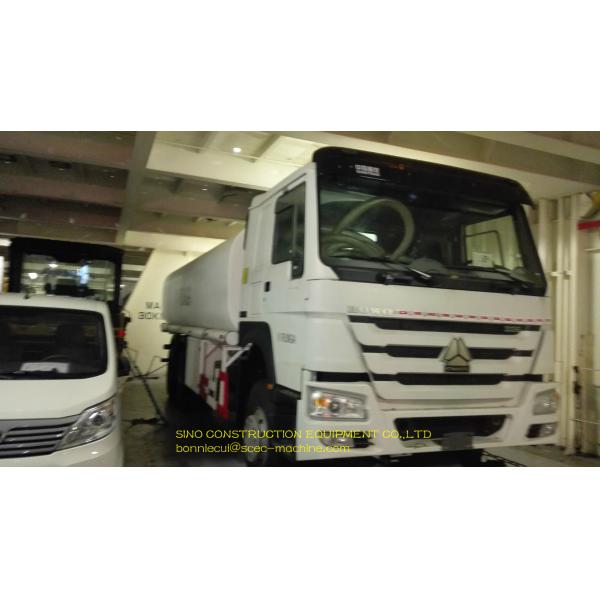

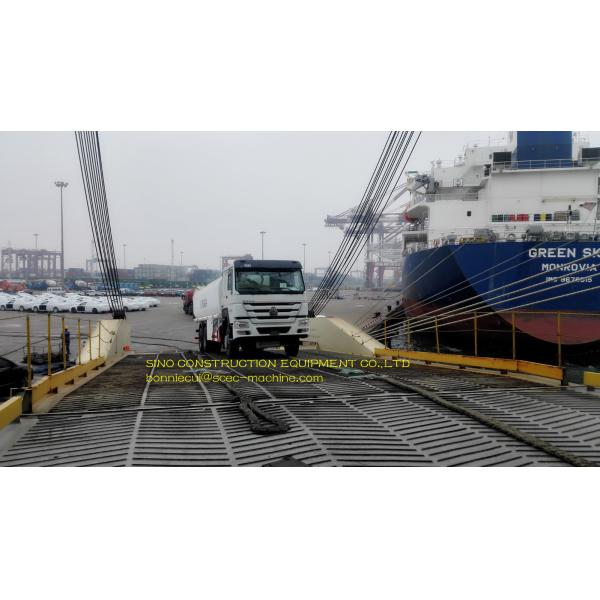

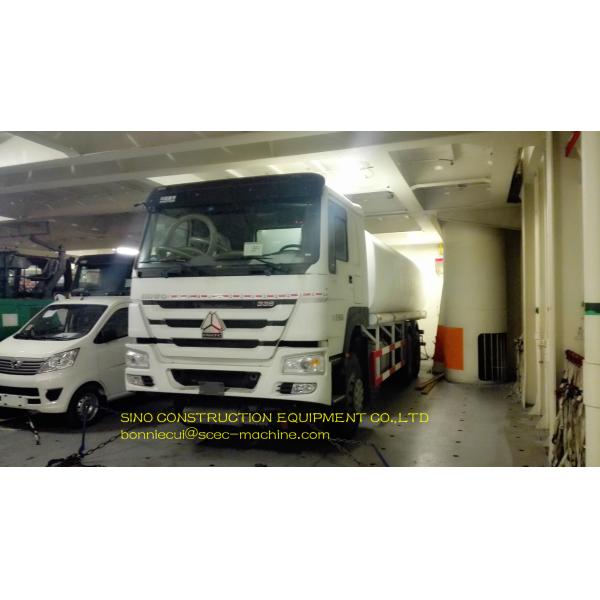

The Liquid Tanker Truck Oil Tank Fuel Truck Liquid Tanker Truck on board for shipping

Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.

Bulk carrier ship

It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.

Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.

FAQ

Q: Min Order Quantity:

One unit or one sets;

Q: Handling Time:

Within one day;

Q: Payment Terms:

30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;

Q: Specified delivery date from the Date of Order:

Depends on the detailed request and purchase order quantity.

Advantage

Axle:

Famous Brand Axle Support

Trailer Durable and High Truck Attendance Rate

Chassis:

China Best Q345B-T700 support Stronger Trailer Skeleton

Tire:

Good Quality Tire support Trailer Running Safety & Smoothly

King Pin:

JOST Detachable Type support Durable and Fast & Easy Replace

Emergency Valve:

Fast Response,Low Failure support Safetly & Protect Tire Longer Time Use

Packaging & Shipping

Good Package Sulotion:
1.Waxing before packing:
We will wax to Heavy duty trailers body for anticorrosive purpose during shipping.


Package:


2.Standard export packing , and our skilled workers will fix the trailers very stablely with steel wire.



For transportation, we have best logistic partners ,we will recommend the economic and safety method to our customer.


1. Normally by Bulk or by Ro-Ro .
2. For some types like chassis trailer , flatbed trailer or other short trailers etc we could use 40HQ, 45FT container and Flat Rack.

FAQ

3. What is your payment terms?

Our payment term is flexible, first choice is T/T or L/C, certainly all payment terms could be negotiated.

Q : How do you transport the trucks?
A: There are optional transportation manners including RORO ship, bulk cargo ship, flat rack container, 20' container, 40' container, 40' HQ, 40' top open container, and LCL to meet your requirements .

Q: Can I be your agent in my country ?
A:It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation .


2. How can you guarantee quality?

Our raw material and OEM accessories including axle, suspension and tyre are purchased centrally within our group, every node will be inspected strictly. Professional workers accompanied with advanced equipment are applied during the whole procedure, ensuring high quality of each parts.
