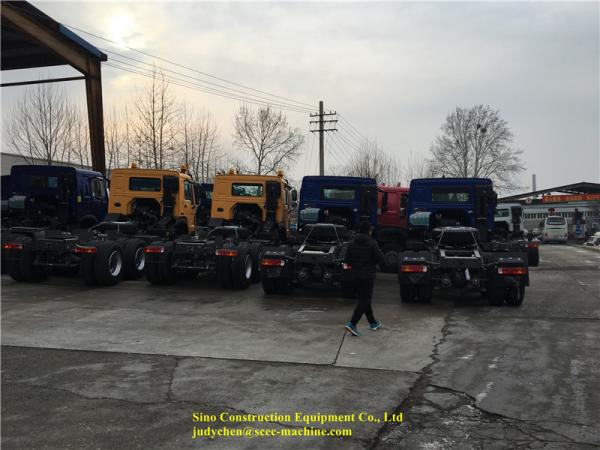

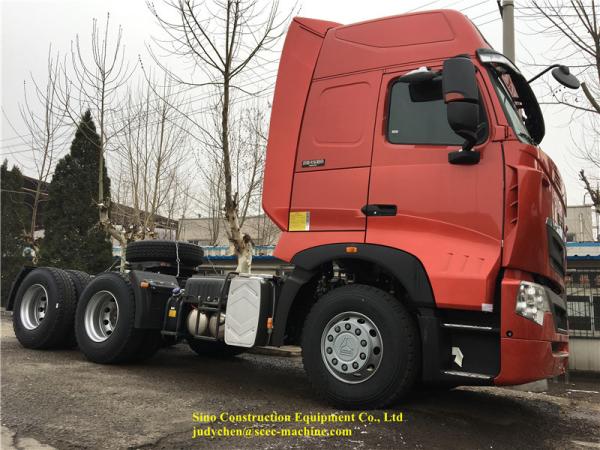

336 Hp / 371hp Heavy Prime Mover Truck Sinotruk Howo 6x4 Tractor Truck
Sinotruk Howo 6x4 336hp/371hp Tractor Truck Howo heavy Prime Mover Truck
Introduction of Sinotruk Howo 6x4 336hp/371hp Tractor Truck
1. Anti-slip: Prevent the idling of the drive wheels when driving on wet roads such as snow, so that the vehicle can start and accelerate smoothly. Especially on snowy or muddy roads, the traction control system can ensure smooth acceleration performance to prevent the vehicle from moving laterally or tailing due to the slipping of the driving wheels.
2. Flexibility: When the car is towed, the vehicle train has better mobility flexibility.
3. Reliable work: ensure that the traction car and trailer are connected reliably, conveniently and quickly.
4. Stability: The traction can be smoothly transmitted to the trailer, which has a certain buffering effect on the impact load.
Features of Sinotruk Howo 6x4 336hp/371hp Tractor Truck
1. The main body is an integrated steel frame structure, which is solid and firm, and has strong resistance to impact and external pressure.
2. The body is welded on a fully automatic robot production line designed with foreign experts. All modern procedures control the operation and reach the world advanced level.
3. The domestic cab horizontal stabilizer is added.
4. It is equipped with a powerful protection frame that is the first to be equipped with anti-collision and anti-drilling.
5. The large curved front windshield of domestic heavy trucks has a field of view that meets European standards.
6. The driver's seat belt adopts a double stop structure, and the insurance coefficient is greatly increased. Comfort: The comfortable and user-friendly design that has been in line with European heavy trucks makes the HOWO7 series heavy trucks a veritable mobile "home" and a decent "office".
Technical specification of Sinotruk Howo 6x4 336hp/371hp Tractor Truck
Truck Model | ZZ4257N3247C1 (Left or Right Hand Drive) | |||
Dimension(Lx W xH)(mm) | 6800x2490x3668 | |||
Approaching angle/Departure angle(°) | 16/70 | |||
Overhang(front/rear) (mm) | 1500/700,725 | |||
Wheel base (mm) | 3200+1400,3225+1350 | |||
Max speed(km/h) | 102 | |||
Curb weight(kg) | 11930 | |||
Loading Weight(kg) | 40000 | |||
Engine (Steyr technology, made in China) | Model | WD615,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | ||
Fuel type | Diesel | |||
Horse Power,max | 371HP,336hp | |||
Emission | EURO2 | |||
Fuel tanker capacity(L) | 400 | |||
Transmission | Model | HW19710 | ||
Brake system
| Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Steering system
| Model | ZF8098 | ||
Front axle | HF9 | |||
Rear axle | HC16 | |||
Color | ANY | |||
Tyre | 295/80R22.5 11pics | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||
Cab | HW76,(one sleeping, with air-condition) |
Advantages of Sinotruk Howo 6x4 336hp/371hp Tractor Truck
HOWO7 series heavy truck comfort and anti-human fatigue indicators have been evaluated by industry experts as the current domestic high level and have reached international standards.
1. The road car cab adopts domestic and world four-point full-floating air suspension shock-absorbing device, which can achieve good shock-absorbing effect under any road conditions. Like a yacht "playing" on the water, it is stable and comfortable.
2. The steering wheel is made of car-type flexible plastic material, which feels good. Adjustable back and forth + -5 angle, up and down 25mm height adjustment.
3. All models above 290 horsepower are equipped with heating and cooling air conditioners, which can be electrically operated and automatically controlled for temperature.
4. The HOWO heavy truck sleeper is designed according to the figure of a person, with a width of 600mm. The aluminum alloy skeleton is light in weight and rigid, and has a built-in steel wire mesh structure, which can more effectively alleviate fatigue than other domestic products.
5. The upper floor of the double-berth can be raised to any angle for parking.
6. The unique design of the cab ventilation system is the first of its kind in China: ① Ventilation windows are provided to effectively keep the cabin air clean when the cab is completely closed; ② The warm air passage to the doors on both sides can quickly Defrost and defog on both sides of the glass; ③ The air circulation is good, which can effectively remove dust and odor.
7. The cabin is equipped with a large luxury storage box, and the storage space is large in China. The original configuration includes a car box.
8. The muffler system has passed multiple rounds of tests, and the muffler effect has reached the level of international heavy truck. Significantly reduces noise and makes drivers and passengers more comfortable.
