10 Wheelers Heavy Duty Dump Truck
10 Wheelers Heavy Duty Dump Truck
10 Wheelers Heavy Duty Dump Truck
10 Wheelers Heavy Duty Dump Truck
10 Wheelers Heavy Duty Dump Truck
10 Wheelers Heavy Duty Dump Truck
10 Wheelers Heavy Duty Dump Truck
10 Wheelers Heavy Duty Dump Truck
Specifications
Brand Name :
HOWO
Model Number :
6X4
Certification :
ISO CCC
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Unit/Units per Month
Delivery Time :
30-35 work days
Packaging Details :
In nude
Driving type :
LHD RHD
Engine :
WD615.47
Tire :
12.00R20
Rear axle :
HC16
Cabin :
HW76 Comfortable Cabin
Front axle :
HF9
Description

Sinotruk Howo New 420 hp 20 Cubic Meter 10 Wheelers Dump Truck

Dump truck is a vehicle that unloads goods by itself through hydraulic or mechanical lifting. Also known as dumper truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and force taking device.

The dump truck compartment is divided into two kinds: backward tipping and lateral tipping. The motion of piston rod is controlled by the control system. Backward tipping is more common, and the piston rod is pushed to make the compartment tipping, with a few two-way tipping.

Advantage:

Greatly save time and labor for unloading

Shorten transportation cycle and improve production efficiency

Reduce transportation cost

Product Description of Sinotruk Howo New 420 hp 20 Cubic Meter 10 Wheelers Dump Truck

Truck Model ZZ3257N3647A
Truck Brand SINOTRUK –HOWO T7H
Dimension(Lx W xH) 8214x2496x3386
Cargo body size (L*W*H, mm) 5400x2300x1400
Cargo body thickness(mm) bottom:8mm, side:6mm,
Lift type of Carriage Ventral lifting
Wheel base (mm) 3625+1350
Curb weight(kg) 12290
Loading Weight(kg) 30000
Fuel tanker capacity 300L with locking fuel cap
Fuel consumption(L/100km) 32
Clutch Single-plate dry clutch Φ420mm

Engine Model

 Model WD615.47,
Horse Power, max(kw/rpm) 371HP,247/2200
Emission Standard EURO II
Transmission Model HW 19710,10 forwards and 2 reverse

Steering system

 Model ZF8118,
Front axle HF9 ,
Rear axle HC16,
Tire 12.00R20 11 pieces
Cab HW76 cab, (one sleeper,with air-condition)

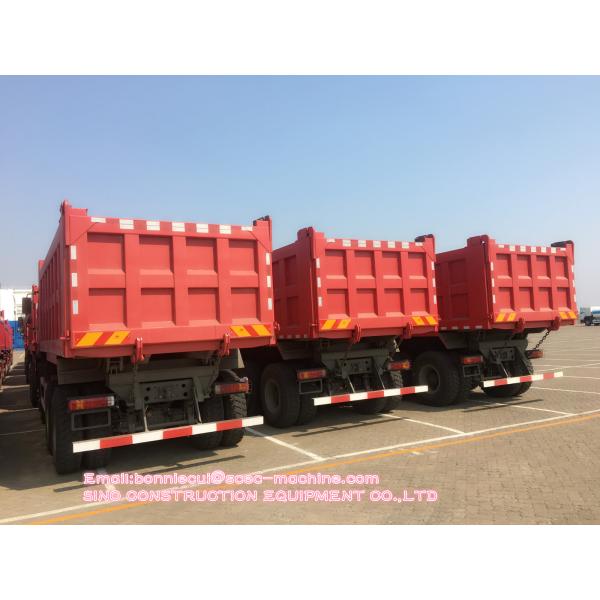

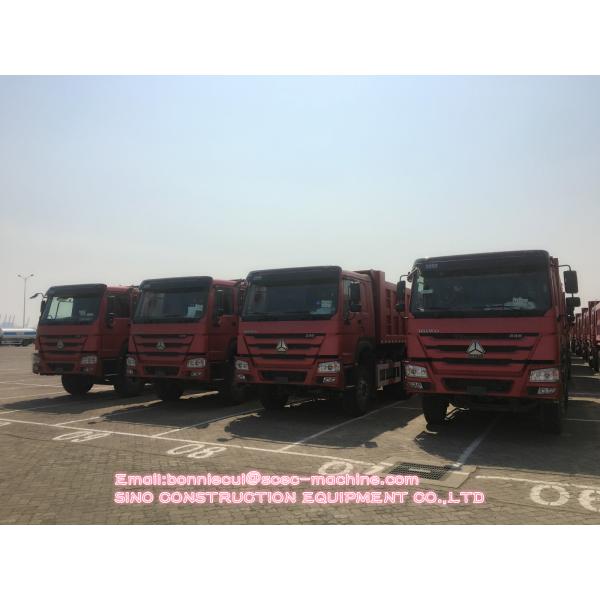

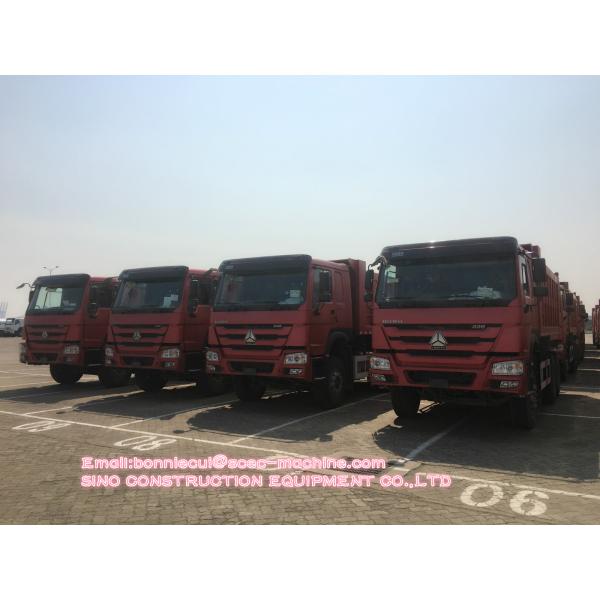

Photo of Sinotruk Howo New 420 hp 20 Cubic Meter 10 Wheelers Dump Truck

10 Wheelers Heavy Duty Dump Truck10 Wheelers Heavy Duty Dump Truck10 Wheelers Heavy Duty Dump Truck

FAQ

1. Q: What is your main advantages compared with other cpmpanies ?

A: First, we are manufacturer of HOWO trucks not a trading company. The quality of every spare part can be guaranteed.

Second, we have our own R&D center to produce most advanced design according to customers ' reqquirements .

2. Q: What about the delivery time?

A: 40 days after receiving deposit.

3. Q: What is the warranty of the trucks?

A: 12 months about engine, axle and transimission , some spare part can be 18 months. And we can help you solve every problem about the truck by email and phone whole life.
