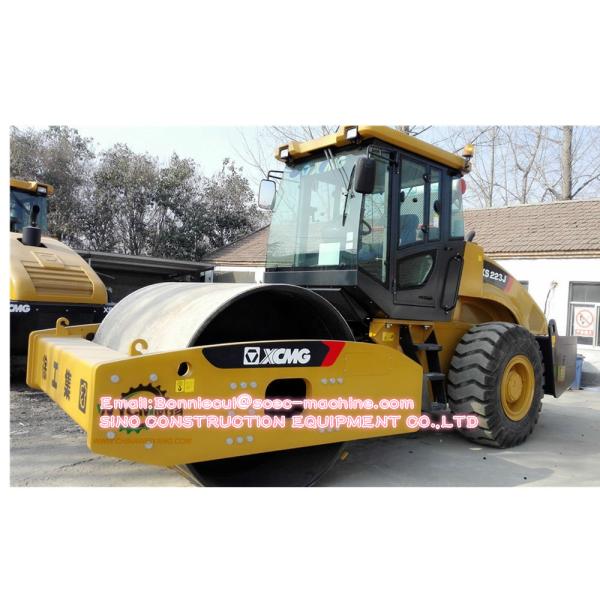

22 ton Construction Road Roller Compactor XCMG XS223J Single Drum Vibratory Roller
New Condition Construction Road Roller Compactor XCMG XS223J Single Drum Vibratory 22 ton Roller
Product Description of Construction Road Roller Compactor XCMG XS223J Single Drum Vibratory 22 ton Roller
The XS203J/XS223J/XS223JE is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XCMG’s new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.
Streamline Design
The large arc frame structure and streamline engine hood design make the machine novel and visually attractive in appearance. Just one look, you can be sure the machine is from XCMG.
Excellent Powertrain
The six-cylinder, direct injection, water-cooled, turbocharged Shangchai D6114ZG engine that offers high power reserve, together with the electrically controlled power box and the optional drive axle with NO-SPIN function supplies stable power transmission. The power system of XS202J can play an optimal traction performance in any cases.
Specification of Construction Road Roller Compactor XCMG XS223J Single Drum Vibratory 22 ton Roller
Type | Unit | XS223J |
Operating weight | kg | 22000 |
Load on front drum | kg | 15000 |
Load on rear wheels | kg
| 7000 |
Drum width | mm | 2130 |
Static linear load | N/cm | 704 |
Vibration frequency(Low/High) | Hz | 28/33 |
Nominal amplitude(High/Low) | mm | 1.86/0.93 |
Excitation force(High/Low) | KN | 390/270 |
Travel speed | km/h | 0~10 |
Steering angle | ° | ±33 |
Swing angle | ° | ±10 |
Theoretical gradeability | % | 50 |
Min. external turning radius | mm | 6500 |
Engine model |
| B5.9 |
Engine power | kw | 132 |
Rated engine speed | r/min | 2200 |
Engine oil consumption | g/kW.h | 232 |
Hydraulic oil tank capacity | L | 240 |
Fuel tank capacity | L | 240 |

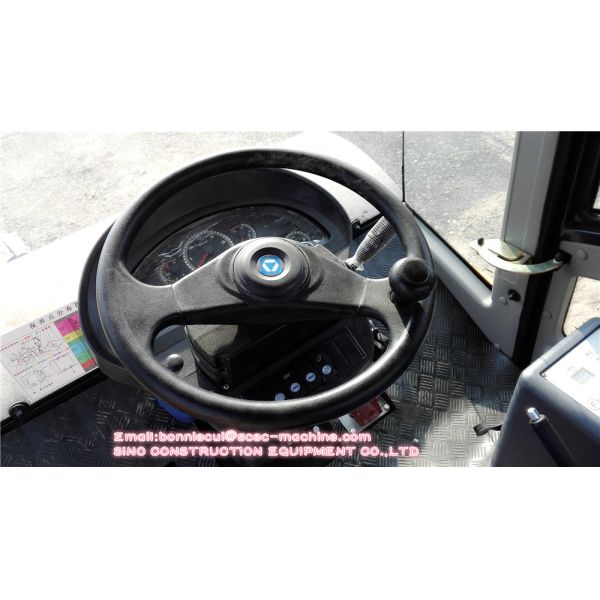

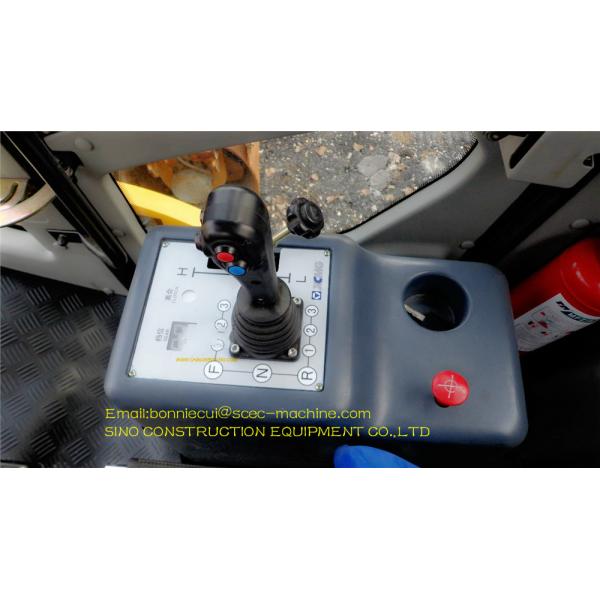

Product show
FAQ
Q: Are you original manufacturer?
A: Yes, we XCMG are a official leading manufacture in construction machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: Which Incoterms 2010 terms can we work?
A: We XCMG are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?
A: Normally it will take about 30-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 20 days.
Q: How about AFTER-SALES SERVICE ?
A: 365×24 Year-round Service
Globally, we have more than 5000 service engineers and 1500 dedicated service vehicles. We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Smart Butler Service
We have established a perfect GPS Global Service Center, and we can provide you with a proactive smart butler system through an Internet of Things platform.
Spare Parts When You Need Them
We have thousands of spare parts centers across five continents that stock almost 1 billion specialist spare parts. We promise that spare parts will be delivered within 72 hours.
After-market Worry-free Service
We are committed to providing after-market services, including rentals, second-hand vehicle evaluations, trade-ins, overhauls, and recycling. We always stick to our responsibility and mission of handling your concerns as best we can.
Quality warranty
We grant our clients a fourteen-month or 2000-hours warranty for any machine purchased from us.
