2 Drum Construction Road Roller XMR153 Vibrating Hydraulic Asphalt Road Roller

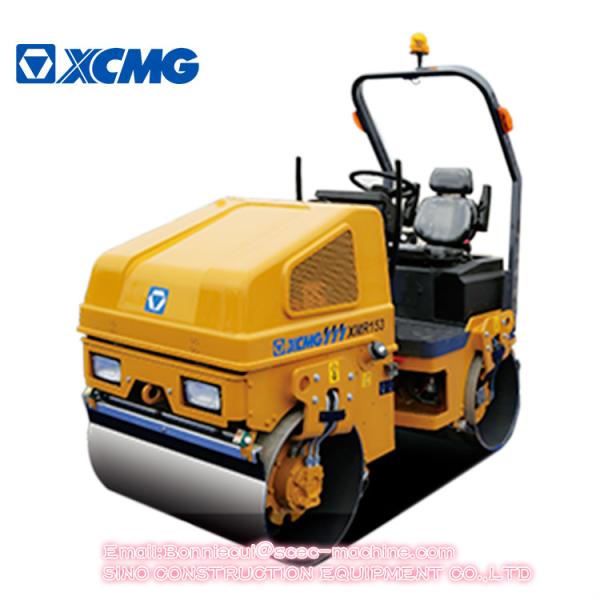

XCMG Construction Road Roller XMR153 Vibrating Hydraulic Asphalt Road Roller With 2 Drum
Product Description of Construction Road Roller XMR153 Vibrating Hydraulic Asphalt Road Roller With 2 Drum
XCMG Official XMR153 Road Roller price for sale
Remarkable compacting performance
Dual frequency and dual amplitude vibrating system and scientific and reasonable static linear load and excitation force ensure the effective compaction of different materials and layers with different thicknesses.
Outstanding powertrain Hydraulic drive system
Adopt the closed anti-slip hydraulic drive system composed by imported heavy-load variable pump and motor, ensuring the good driving performance and high gradeability.
Reliable Electrical System
The electrical system adopts imported water-proof, dust-proof, vibration-resistant electric connectors for increased reliability.
Imported maintenance-free battery has high start-up current and good adaptability.
Main Parameter of Construction Road Roller XMR153 Vibrating Hydraulic Asphalt Road Roller With 2 Drum
Type | Unit | XS183E |
Operating weight | kg | 18000 |
Load on front drum | kg | 11500 |
Load on rear wheels | kg | 6500 |
Drum width | mm | 2130 |
Static linear load | N/cm | 529 |
Vibration frequency(Low/High) | Hz | 28/33 |
Nominal amplitude(High/Low) | mm | 1.86/0.93 |
Excitation force(High/Low) | KN | 340/240 |
Travel speed | km/h | 0-10 |
Steering angle | ° | ±33 |
Swing angle | ° | ±10 |
Theoretical gradeability | % | 50 |
Min. turning radius | mm | 6500 |
Engine model | B5.9 | |
Engine power | kw | 132 |
Rated engine speed | r/min | 2200 |
Engine oil consumption | g/kW.h | 232 |
Hydraulic oil tank capacity | L | 240 |
Fuel tank capacity | L | 240 |
Dimensions | mm | 6220*2390*3200 |

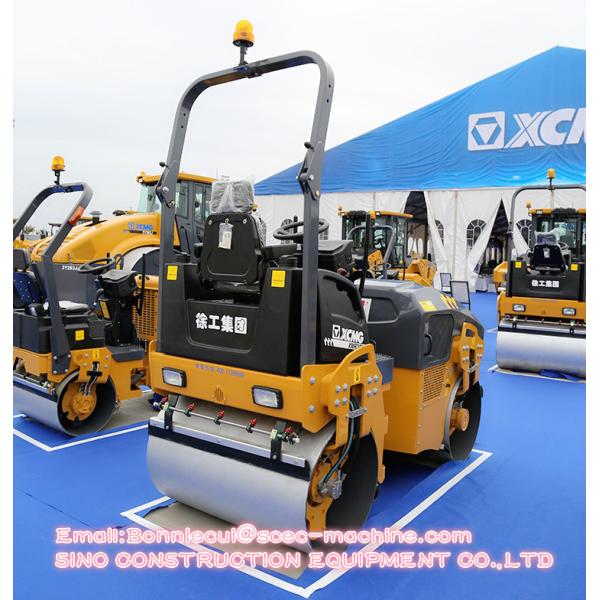

Product show
Our factories have passed the certification of relevant organizations.
For example, ISO, CNAS, IAF and so on.
Products have also passed CE, GHOST certification and so on.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, Iran, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply?
All kinds of spare parts of XCMG, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SANY, SDLG, LONKING, XGMA, CUMMINS ENGINE, ZF GEAR BOX, etc.
