HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
HOWO 6x4 Special Purpose Truck
Specifications
Brand Name :
Sinotruk HOWO
Model Number :
ZZ1257N5247A
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 units per month
Delivery Time :
Within 25 work days after receive prepayment
Packaging Details :
Nude, shipped by bulk ship or ro-ro ship
Manufacturer :
SINOTRUK
Dimension :
8550x2220x1400mm
Total weight :
31000kg
Engine :
WD615.69, diesel, 6 cylinder; 336hp,EURO III standard
Tank capacity :
22m3
Material :
High strength wear-resistant carbon steel, with Anticorrosion Layer inside tank.
Pump Model: :
80QSB-60/90 Flow quantity- 60m3/h.
Description

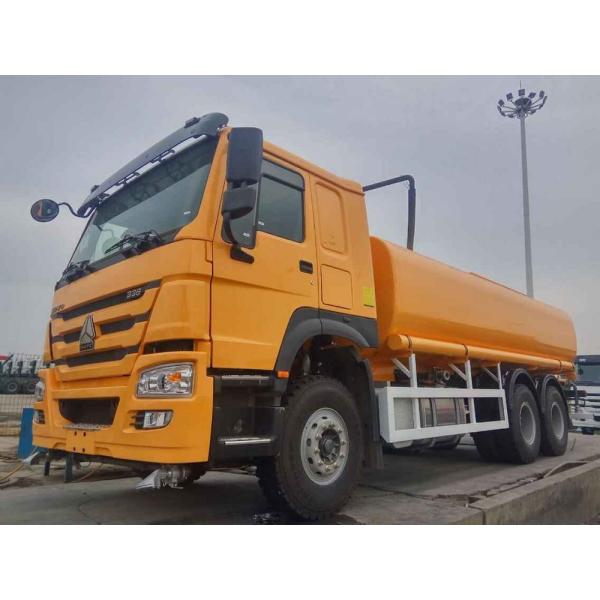

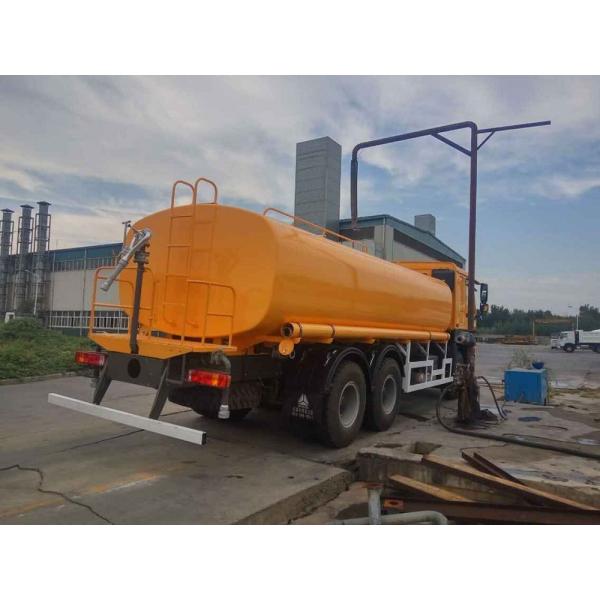

HOWO 6x4 Special Purpose Truck Water Tank Truck 336hp 22m3 Triangle tyre Carbon Steel Material 5mm Tank

1. Specification:

Model

ZZ1257N5247A

Overall truck
Dimension

11900x2496x3048mm
Total weight

31000kg
Tare weight

8800kg

Chassis

Manufacturer

 SINOTRUK
Engine

WD615.69, diesel,

6 cylinder; 336hp,EURO III standard
Transmission HW19710,with 10 speed forward&2 speed reverse
Rear Axle

MCY13Q, load capacity 2x13t

Front Axle

 HF9, load capacity 9t
Tyre

12.00R20, radial tyres, 10+1 pcs( with 0ne spare tyres)
Cab HW76, adopt VOLVO tech, one bed, AC, sun shield, ajustable seat and steering wheel, safe belt, with 4 point spring suspension shock absorption.
Wheelbase

5225+1350mm

Approach/departure angle

 16./10.
Overhang

front-1500mm

rear-3109mm

Max. Speed

 90km/h

Tank

Manufacturer

 SINOTRUK

Dimension

 8550x2220x1400mm

Tank capacity

 22m3
Material High strength wear-resistant carbon steel, with Anticorrosion Layer inside tank.
Pump Model: 80QSB-60/90 Flow quantity- 60m3/h.

REMARK: 1.with ABS

2.with gauge( can back to zero)

Products Advantages:

a.The satisfied product with high level standard;

b.The full aspect service from order to shipping;

c. Give customer most suitable advice when customer has special needs for your transportation or construction

d. Help customer to get the related spare parts of trailer or tractors if customer needs. We are waiting for you to get this ideal products and best service!

Water tanker common problems and solutions

First, the sprinkler pump cannot be self-priming, this can be ruled out from the following points:

1. No or insufficient liquid storage in the pump

2. Leakage in the suction pipe Treatment method: check and eliminate air leakage

3. The speed is too low.

4. The suction stroke is too high or the suction pipe is blocked. Treatment method: reduce the suction stroke or shorten the suction pipe

5. Excessive leakage of mechanical seal Treatment method: repair or replace

Second, the pump shaft power consumption is getting larger and larger, this can be ruled out from the following points:

1. Excessive traffic Treatment method: reduce traffic

2. The speed is too high.

3. The pump shaft is distorted or the impeller is stuck. Treatment method: Correct or replace

4. The flow path in the pump is blocked or stuck

More photos for your reference:

HOWO 6x4 Special Purpose Truck

HOWO 6x4 Special Purpose Truck

HOWO 6x4 Special Purpose Truck
