Specifications
Brand Name :
Sinotruck
Model Number :
4x2
Certification :
ISO
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Set/Sets per Year
Delivery Time :
30-35 work days
Packaging Details :
In nude
Condition :
New
Emission Standard :
Euro 2
Dimension (L x W x H) :
5850*2000*2300
Tank capacity :
4300litres
Wheelbase (mm) :
2700,2950,3308
Fuel Type :
Diesel
Description

10000L Special Purpose Truck Sewer Vacuum Truck Sewage Cleaning Vehicle Euro 2

4x2 HOWO Special Purpose Truck Sewage Suction Truck 10000L Cleaning Truck

Product Description

The Suction sewage truck, also called vacuum sewage, sewage pollution models, is to collect, clean up the transport, sewage sludge,and avoid the secondary pollution of sanitation vehicles, new car pollution can be self-priming since the row, working speed,large capacity, transportation is convenient, applicable to collect feces, mud, oil and other liquid material transport. Pollution
car adopts the advanced technology of pollution vacuum pump, the suction, suction cjay, especially suitable for the drain suctionof warp, the loading and unloading, especially can suck a drain mud, mud, stones, bricks and other large objects.

Advantages of the sewage suction truck

1. Enough degree of vacuum for sewage suction;

2. Secondary protection for the vacuum pump, protecting the pump from being polluted;

3. Manual drive of vacuum pump, ensuring ease of clutch;

4. Synchronous operation of hydraulic pump and vacuum pump;

5. Tank turned over by hydraulic pressure for complete discharging;

6. Excellent vacuum truck with elegant appearance, easy operation and superior performance

Product Parameters

Name 4x2 HOWO sewage suction truck 10000L Cleaning Truck
Model ZZ1167M4611
Driving Type Left Hand Drive
Over Dimension 7990×2496×3000 (mm)
Maximum driving speed 90(km/h)
Gross vehicle weight 16000(Kg)
Engine Model WD615.92
Fuel type Diesel
Horse Power 266HP
Emission Euro II
Fuel tanker capacity 400L, Aluminum alloy
Transmission Model HW19710,10 forwards and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake Spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model ZF8118sewage truck
Front axle HF7 drum
Rear axle ST16
Tire 295/80R22.5,7units
Cab

HW70 cab with no sleeper and air conditioner, all-steel forward control, 55°hydraulic tilting to the front,

2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen,

with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating &

ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

Other

Sewage suction truck installs force taking device, transmission shaft, vacuum pump, pressure tank,

hydraulic parts, pipe network system, and equipped with a vacuum pressure gauge,dung window

(pipe) device.9meter long 360 degree swivel suction tube,Hangzhou Weilong vacuumdouble pump,model:68/7000,with the anti overflow valve, oil and gas separator, moisture

separator, fourway valve.Tank head is 6mm,body size: length 7080mm* macro axis 240 mm* minor axis1620 mm,four partition boards,turtle heads,rear head with a 6 Inch disc valve

excrement outlet. sewage suction truck

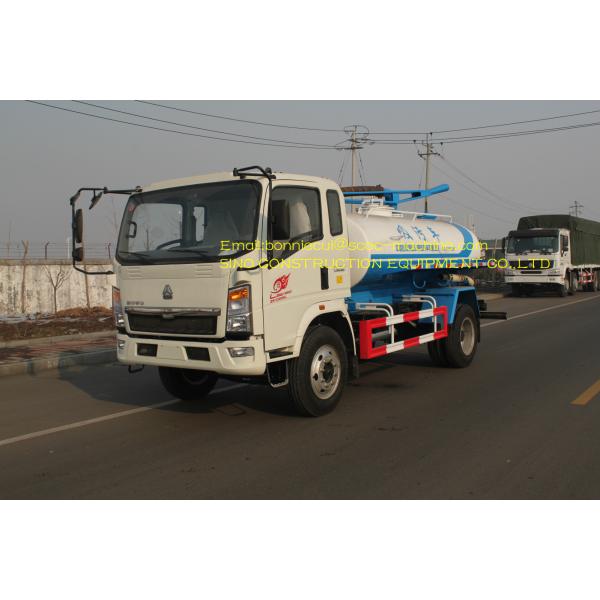

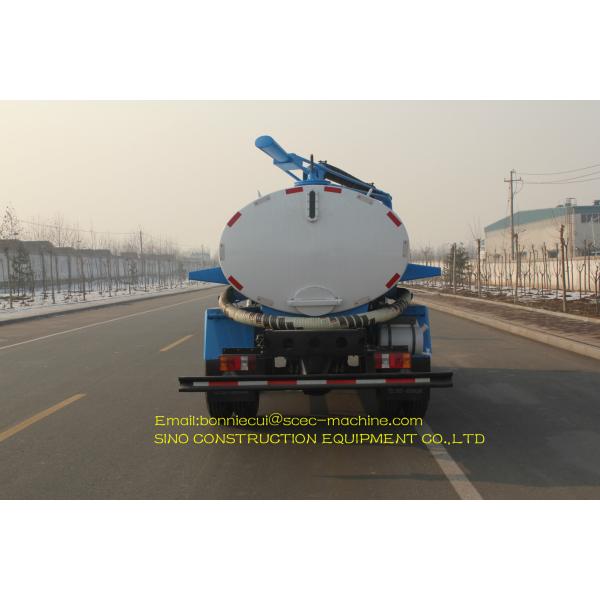

More photo for your reference

10000L Special Purpose Truck Sewer Vacuum Truck Sewage Cleaning Vehicle Euro 210000L Special Purpose Truck Sewer Vacuum Truck Sewage Cleaning Vehicle Euro 2

Packing and Shipping

All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are four ways can be choose, RORO, BULK, FRAME ANDCONTAINER. Please kindly check the pictures as below sewage suction truck

Our customer all over the world:

  • African countries:

Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.

  • European and Asian countries:

Russia, Kazakhstan, Kyrgyzstan, Bangladesh, Azerbaijan, Vietnam, Laos, Cambodia, the Philippines, Malaysia and so on.

  • South American countries:

Brazil, Bolivia, Uruguay, Peru, Ecuador , Trinidad and Tobago , Chile, Barbados , Argentina, Dominica, Cuba, and so on.

FAQ


Q: What kind of payment do you accept?
A: We accept T/T and L/C at most.
Q: What's your delivery time?
A: It depends on the products.
Products Delivery time

Tractor Truck & Dump Truck 25days

Low bed trailer, Container trailer, skeleton trailer, side wall trailer, 10-15 days

Fuel tanker trailer, bulk cement trailer 30 days

Special truck, like detachable gooseneck trailer, hydraulic modular trailer 35 working days
Q: What's warranty time?
A: Main frame, one year; Vulnerable parts,three month; Others parts, half year;
Q: What's your after-sale service?

A: We provide technical support for our products.
Besides, we also provide you spare parts as long as you need.

Please let us know the main use, brand, power and other requirements of the purchased products .We will recommend the related products to you.
