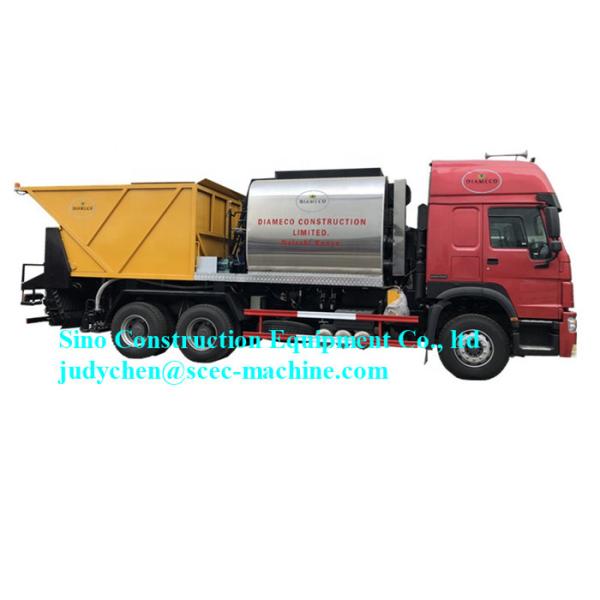

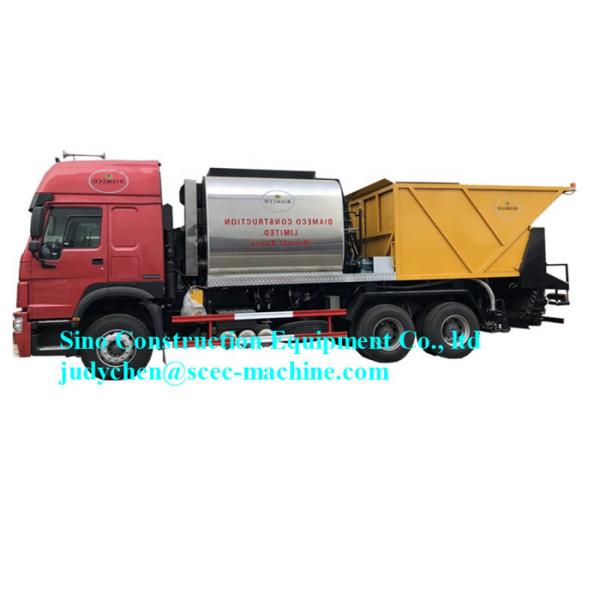

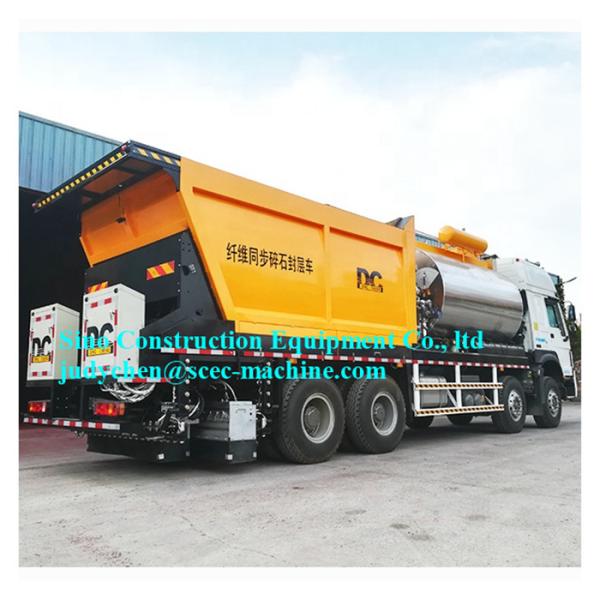

Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck
Specifications
Brand Name :
Sinotruk
Model Number :
ZZ1317N4667A
Certification :
CE ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 units per month
Delivery Time :
Within 30-40 work days after receive order
Packaging Details :
Nude, Polished with wax before shipping
Product name :
4m Asphalt Crushed Stone Synchronous Chip Sealer Truck
Dimensions (mm) :
11990x 2500x3750
Asphalt tank rated capacity (3) :
9
Stone silo full capacity (m3) :
14
Stone size (mm) :
3-25
Spreading width (m) :
≤4
Asphalt spraying amount (L / m) :
0.2-3.0
Engine :
WD615.47, 371hp, Euro III
Description

Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck

Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Sealer Truck Asphalt Tank 9m3

Technical specification of Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip sealer Truck

Chassis model ZZ1317N4667A
Type 8x4, RHD&LHD
Cab HW76, one sleeper, A/C, Standard
Gearbox HW19710, 10 speed forward&2 speed reverse
Engine WD615.47, 371hp, Euro III
Total mass 31000kg
Curb weight 11170kg
Wheelbase 1950+4600+1400,1950+4625+1350mm
Tire specifications 11.00-20 18PR,11.00R20 18PR,12.00-20 16PR,12.00R20 16PR,315/80R22.5 16PR
Front overhang 1540/2495,1540/2520mm
Max. speed 101km/h
Working part parameter
Dimensions (mm) 11990x 2500x3750
Total weight (kg) 31000
Asphalt tank rated capacity (3) 9
Stone silo full capacity (m3) 14
Stone size (mm) 3-25
Spreading width (m) ≤4
Asphalt spraying amount (L / m) 0.2-3.0
Emission Euro III

Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck

Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip Seal Truck

Highlights of Sinotruk Howo 8x4 4m Asphalt Crushed Stone Synchronous Chip sealer Truck

1. Imported large-power asphalt pump, one-control one-full automatic control system, heat-conducting oil is heated to the whole system of nozzle.

2. The whole system has automatic and manual dual control, which is safe and efficient. Specially-designed side nozzles solve the problem of no overlap on both sides of the asphalt spraying. The imported generator set is 5.5KW and it supplies 500W to the burner. The mains (220W) can be used as the heat transfer oil pump The motor provides power.

3. The unique starting strong spray control technology guarantees zero starting spraying of asphalt.

4, using streamlined hopper and humane ladder design, simple structure, easy to use.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
